In-Wall Tank Unit Repair Parts

by Toto

The In-Wall Tank Units by Toto are a unique solution to many plumbing problems. Keep the toilet tank hidden, with this wonderful solution, which allows for easy cleaning underneath the toilet. Reduce maintenance, and save precious space in your bathroom with the sleek design of wall-hung toilets that compliment every contemporary bathroom. Need repair parts? Discover our vast array of in-wall tank unit repair parts below. For more toto toilet repair parts, visit our page.

Toto Neorest In-Wall Tank UnitsIn-Wall Tank Unit

Replacement Parts for Toto DuoFit 172 In-Wall Tank Unit

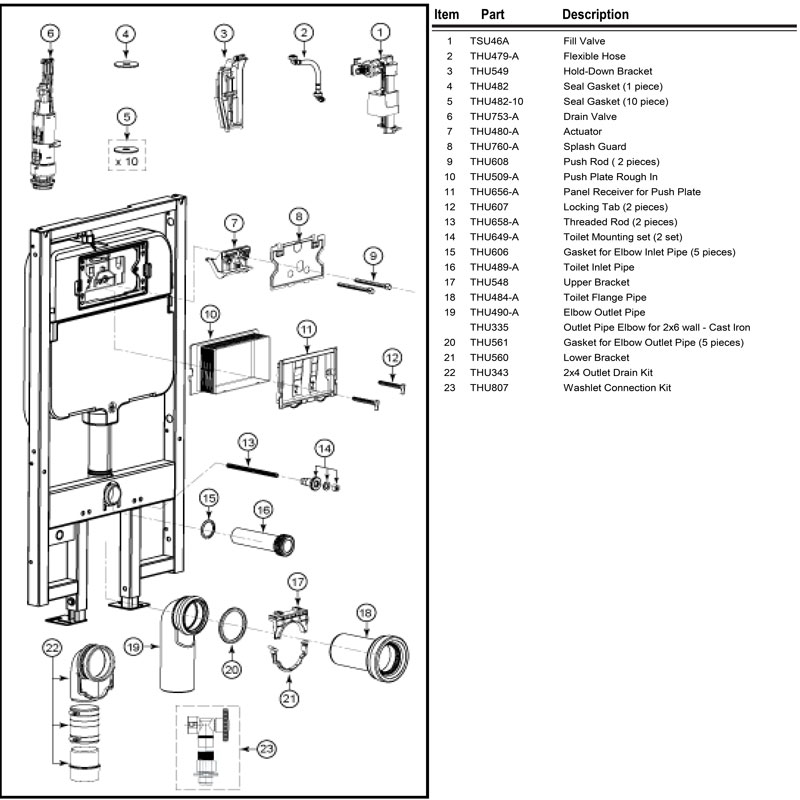

Toto Duofit in-wall tank unit diagram - model 172
Item # Part # Description Price & Quantity

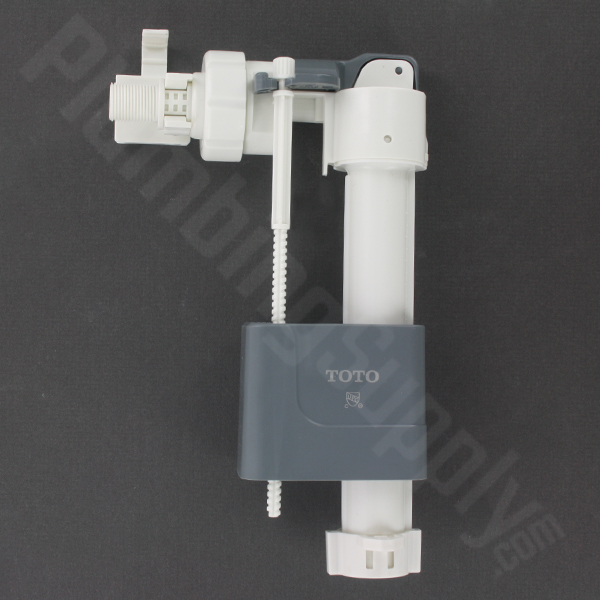

1 TSU46A Fill Valve $36.79 Enter a quantity and
2 THU479-A Flexible Hose $16.63 Enter a quantity and
3 THU549 Hold-Down Bracket $13.71 Enter a quantity and
4 THU482 Seal Gasket (1 piece) $11.39 Enter a quantity and
5 THU482-10 Seal Gasket (10 piece) $27.23 Enter a quantity and

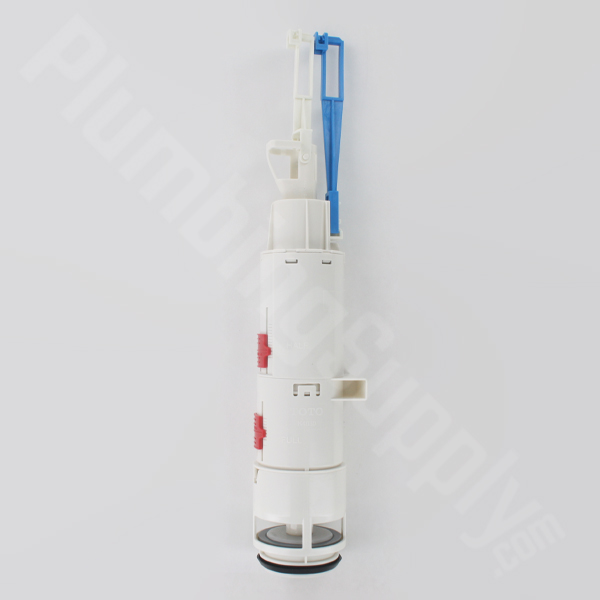

6 THU753-A Drain Valve $37.95 Enter a quantity and

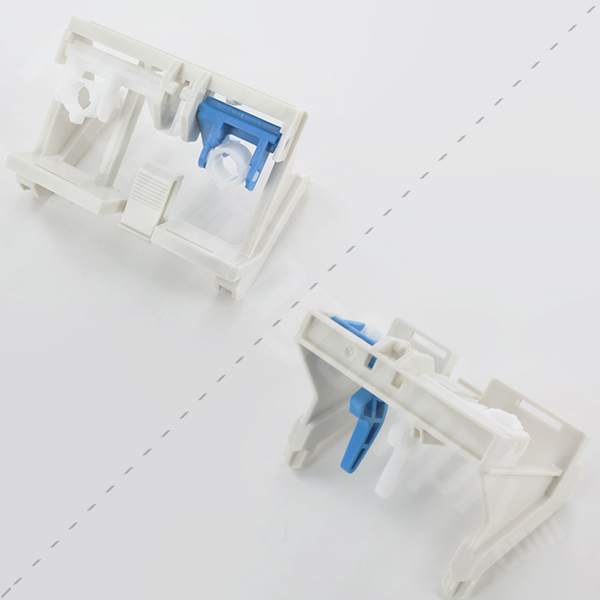

7 THU480-A Actuator $19.93 Enter a quantity and
8 THU760-A Splash Guard $11.59 Enter a quantity and
9 THU608 Push Rod ( 2 pieces) $13.75 Enter a quantity and
10 THU509-A Push Plate Rough In $45.65 Enter a quantity and
11 THU656-A Panel Receiver for Push Plate $17.50 Enter a quantity and
12 THU607 Locking Tab (2 pieces) $13.73 Enter a quantity and
13 THU658-A Threaded Rod (2 pieces) $19.94 Enter a quantity and
14 THU649-A Toilet Mounting set (2 set) Discontinued
Replaced by THU649R-A

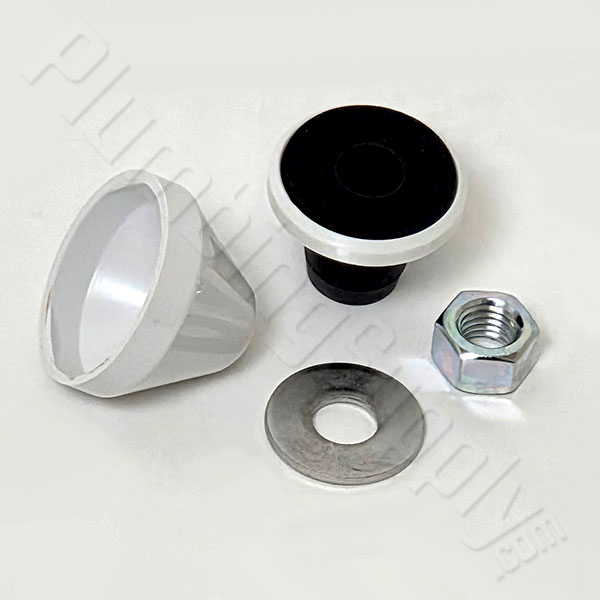

THU649R-A Toilet Mounting Set (2 sets) $16.80 Enter a quantity and
15 THU606 Gasket for Elbow Inlet Pipe (5 pieces) $9.63 Enter a quantity and
16 THU489-A Toilet Inlet Pipe $13.65 Enter a quantity and
17 THU548 Upper Bracket $13.69 Enter a quantity and
18 THU484-A Toilet Flange Pipe $27.97 Enter a quantity and
19 THU490-A Elbow Outlet Pipe $13.67
THU335 Outlet Pipe Elbow for 2x6 wall - Cast Iron $159.20 Enter a quantity and
20 THU561 Gasket for Elbow Outlet Pipe (5 pieces) $27.25 Enter a quantity and
21 THU560 Lower Bracket $5.95 Enter a quantity and
22 THU343 2x4 Outlet Drain Kit $57.75 Enter a quantity and
23 THU807 Washlet Connection Kit $69.87 Enter a quantity and

Replacement Parts for Toto DuoFit 173 In-Wall Tank Unit

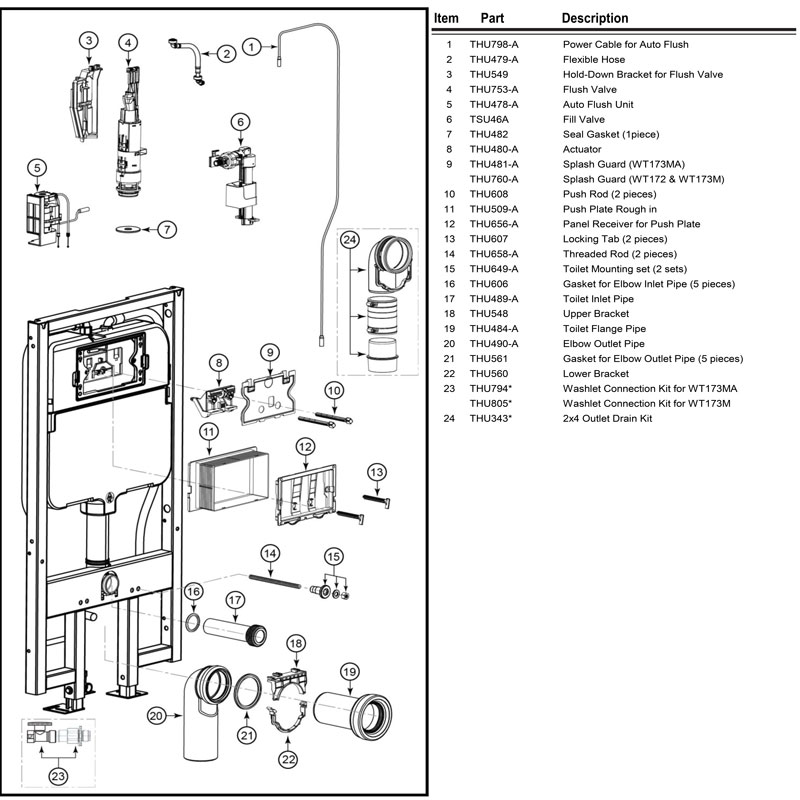

Toto Duofit in-wall tank unit diagram - model 173
Item # Part # Description Price & Quantity
1 THU798-A Power Cable for Auto Flush $78.28 Enter a quantity and
2 THU479-A Flexible Hose $16.63 Enter a quantity and
3 THU549 Hold-Down Bracket for Flush Valve $13.71 Enter a quantity and
4 THU753-A Flush Valve $37.95 Enter a quantity and
5 THU478-A Auto Flush Unit $195.39 Enter a quantity and
6 TSU46A Fill Valve $36.79 Enter a quantity and
7 THU482 Seal Gasket (1 piece) $11.39 Enter a quantity and
8 THU480-A Actuator $19.93 Enter a quantity and
9 THU481-A Splash Guard (WT173MA) $11.38
THU760-A Splash Guard (WT172 & WT173M) $11.59 Enter a quantity and
10 THU608 Push Rod (2 pieces) $13.75 Enter a quantity and
11 THU509-A Push Plate Rough in $45.65 Enter a quantity and
12 THU656-A Panel Receiver for Push Plate $17.50 Enter a quantity and
13 THU607 Locking Tab (2 pieces) $13.73 Enter a quantity and
14 THU658-A Threaded Rod (2 pieces) $19.94 Enter a quantity and
15 THU649-A Toilet Mounting Set (2 set) Discontinued
Replaced by THU649R-A
THU649R-A Toilet Mounting Set (2 sets) $16.80 Enter a quantity and
16 THU606 Gasket for Elbow Inlet Pipe (5 pieces) $9.63 Enter a quantity and
17 THU489-A Toilet Inlet Pipe $13.65 Enter a quantity and
18 THU548 Upper Bracket $13.69 Enter a quantity and
19 THU484-A Toilet Flange Pipe $27.97 Enter a quantity and
20 THU490-A Elbow Outlet Pipe $13.67 Enter a quantity and
21 THU561 Gasket for Elbow Outlet Pipe (5 pieces) $27.25 Enter a quantity and
22 THU560 Lower Bracket $5.95 Enter a quantity and
23 THU794 Washlet Connection Kit for WT173MA $154.29
THU805 Washlet Connection Kit for WT173M $59.50 Enter a quantity and
24 THU343 2x4 Outlet Drain Kit $57.75 Enter a quantity and

Replacement Parts for Toto Neorest 174 In-Wall Tank Unit

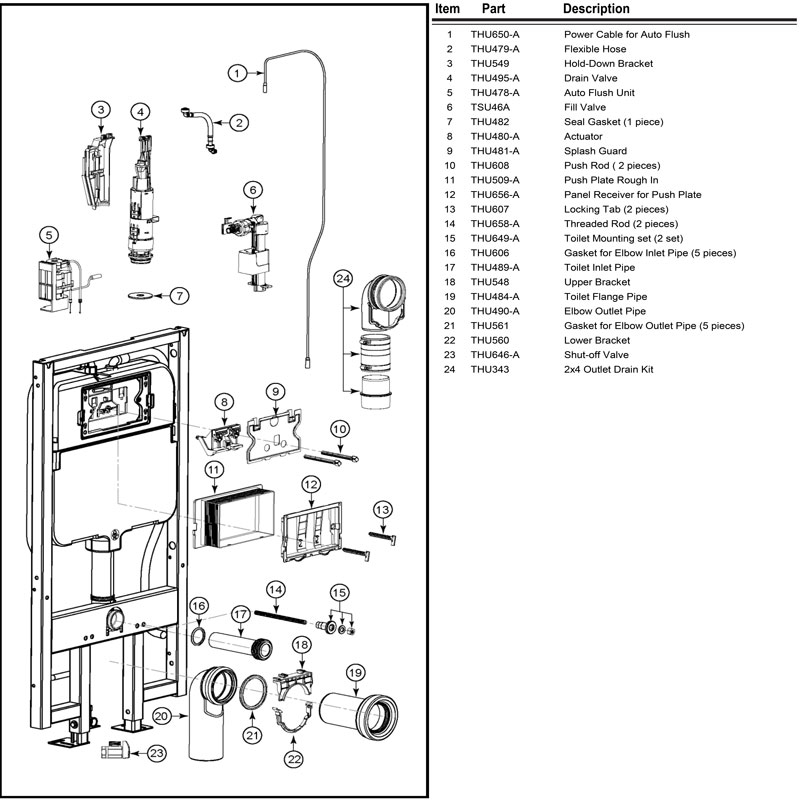

Toto Neorest in-wall tank unit diagram - model 174
Item # Part # Description Price & Quantity
1 THU650-A Power Cable for Auto Flush $79.98 Enter a quantity and
2 THU479-A Flexible Hose $16.63 Enter a quantity and
3 THU549 Hold-Down Bracket $13.71 Enter a quantity and
4 THU495-A Drain Valve $53.75 Enter a quantity and
5 THU478-A Auto Flush Unit $195.39 Enter a quantity and
6 TSU46A Fill Valve $36.79 Enter a quantity and
7 THU482 Seal Gasket (1 piece) $11.39 Enter a quantity and
8 THU480-A Actuator $19.93 Enter a quantity and
9 THU481-A Splash Guard $11.38 Enter a quantity and
10 THU608 Push Rod (2 pieces) $13.75 Enter a quantity and
11 THU509-A Push Plate Rough In $45.65 Enter a quantity and
12 THU656-A Panel Receiver for Push Plate $17.50 Enter a quantity and
13 THU607 Locking Tab (2 pieces) $13.73 Enter a quantity and
14 THU658-A Threaded Rod (2 pieces) $19.94 Enter a quantity and
15 THU649-A Toilet Mounting set (2 set) Discontinued
Replaced by THU649R-A
THU649R-A Toilet Mounting Set (2 sets) $16.80 Enter a quantity and
16 THU606 Gasket for Elbow Inlet Pipe (5 pieces) $9.63 Enter a quantity and
17 THU489-A Toilet Inlet Pipe $13.65 Enter a quantity and
18 THU548 Upper Bracket $13.69 Enter a quantity and
19 THU484-A Toilet Flange Pipe $27.97 Enter a quantity and
20 THU490-A Elbow Outlet Pipe $13.67 Enter a quantity and
21 THU561 Gasket for Elbow Outlet Pipe (5 pieces) $27.25 Enter a quantity and
22 THU560 Lower Bracket $5.95 Enter a quantity and
23 THU646-A Shut-off Valve $26.25 Enter a quantity and
24 THU343 2x4 Outlet Drain Kit $57.75 Enter a quantity and
Not Shown YT994#WH Neorest Push Plate - White $532.85 Enter a quantity and
