PVC Fitting Savers
Removes pipe from inside the fitting
Tired of having to replace an entire section of perfectly good PVC pipe work when pipe breaks off in a fitting? Now you can save the fitting by repairing it. Simple to use, and money saving to boot, these Fitting Savers are sure to keep you in business. Let PlumbingSupply.com
® be your source for these and
many other helpful tools.

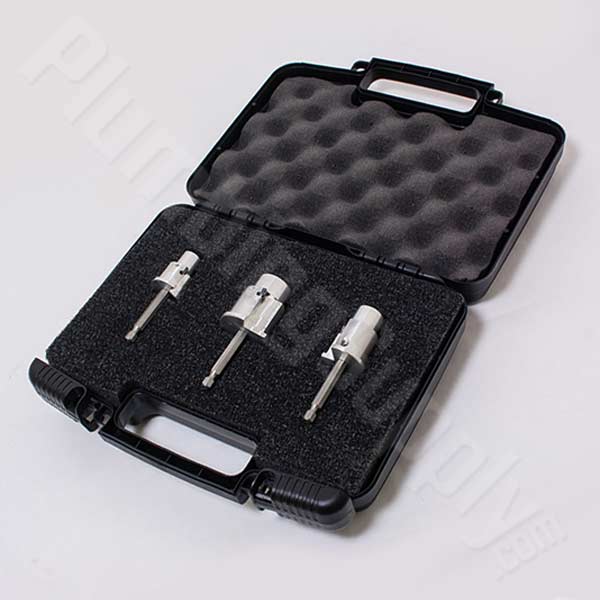

Deluxe PVC Fitting Savers

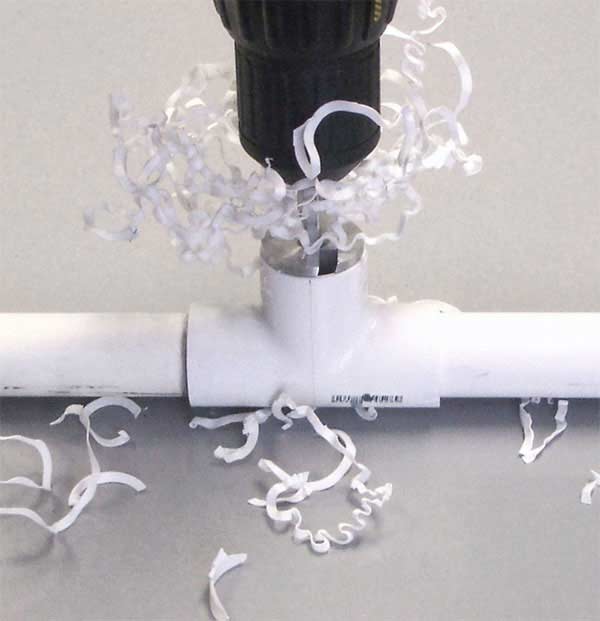

Quickly and easily removes pipe from solvent welded or threaded fittings. Saves time and money over replacing whole assemblies. Perfect for plumbing, irrigation and sprinkler contractors. Available in kits for schedule 40 PVC/ABS, schedule 80 PVC/CPVC and CTS.
Click here to learn more about schedule pipe.
Example: if you need to drill out a 3/4" tee for schedule 40 PVC, you would order a 3/4" fitting saver sized for schedule 40 pipe.

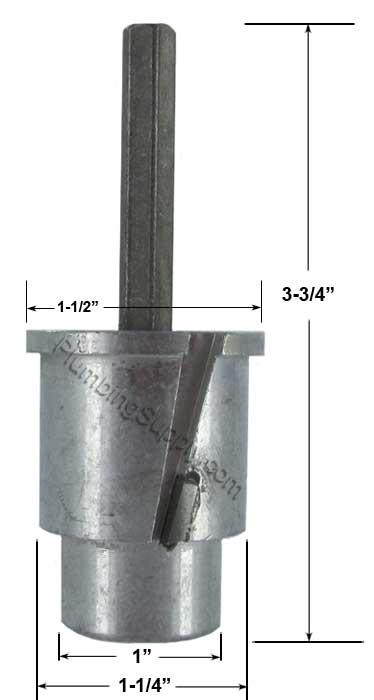

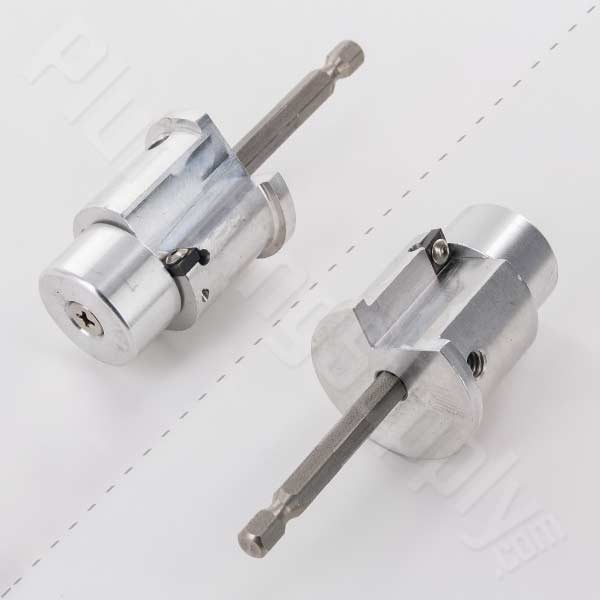

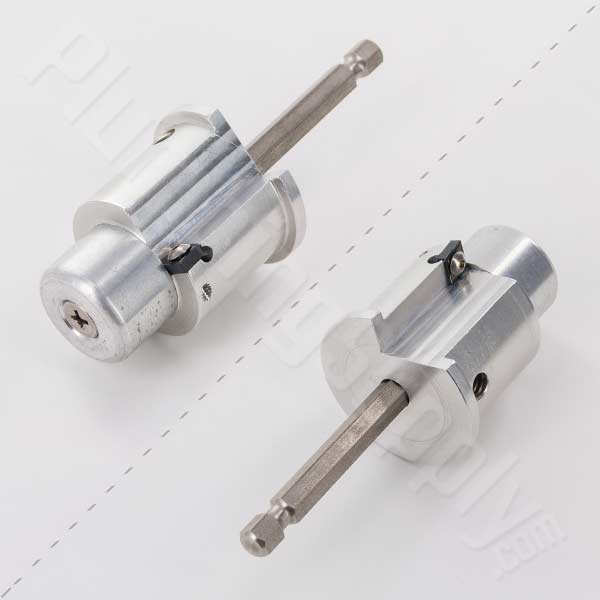

Fitting Savers For

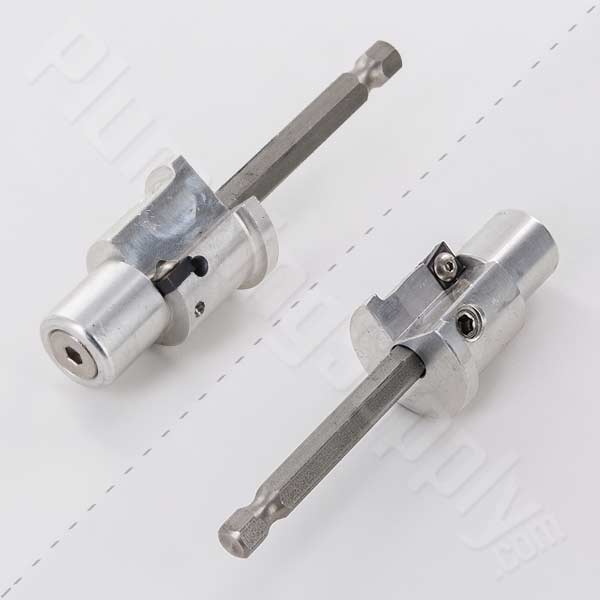

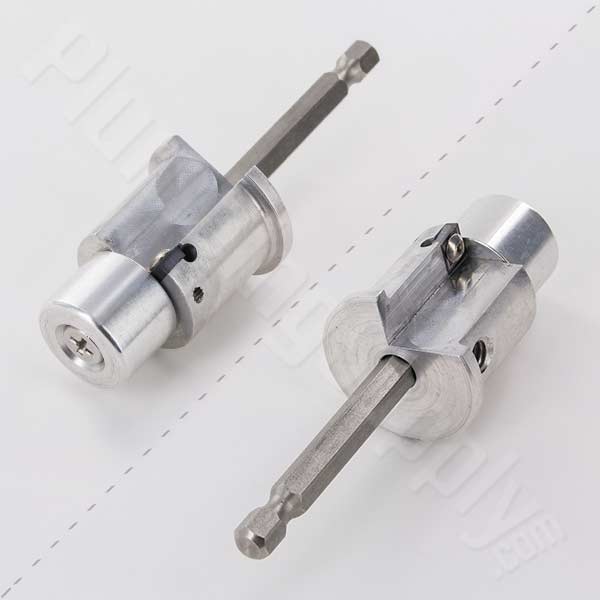

Schedule 40 PVC Fittings

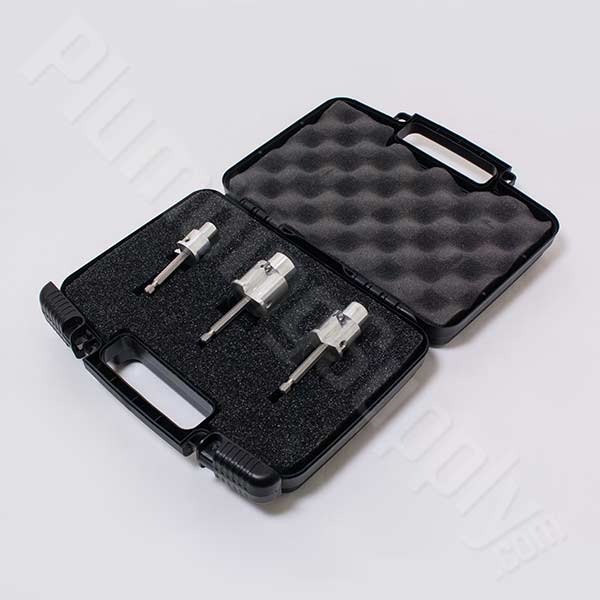

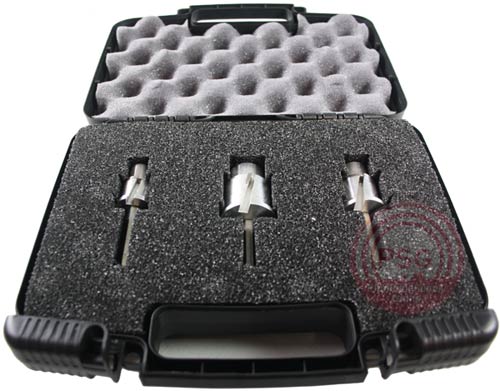

Fitting Savers For

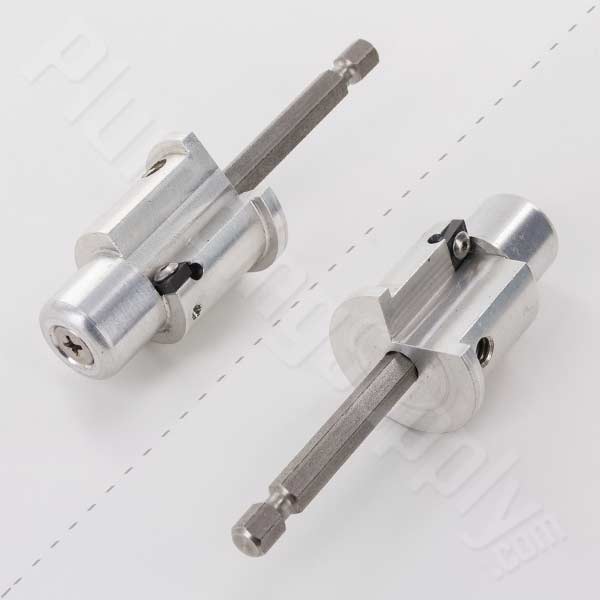

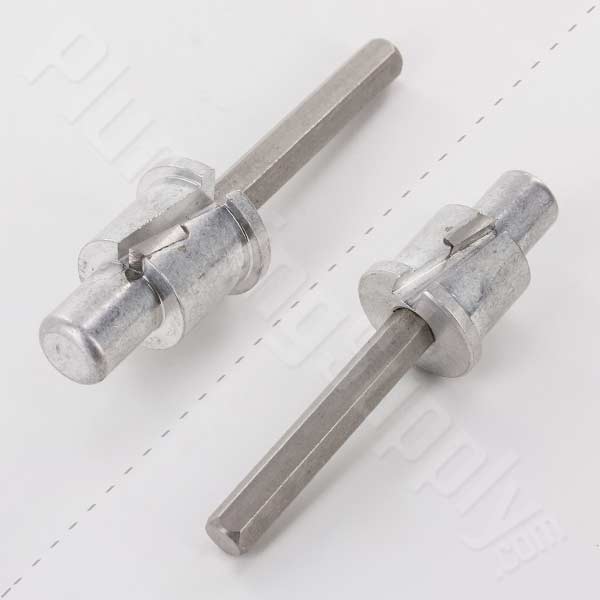

Schedule 80 PVC Fittings

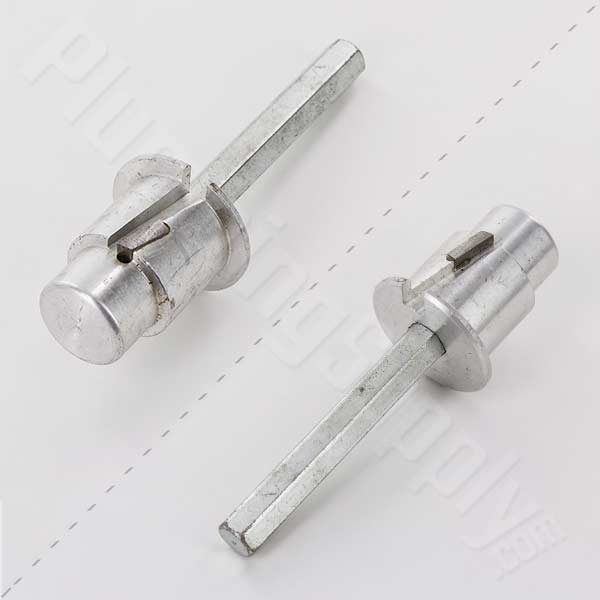

Fitting Savers For

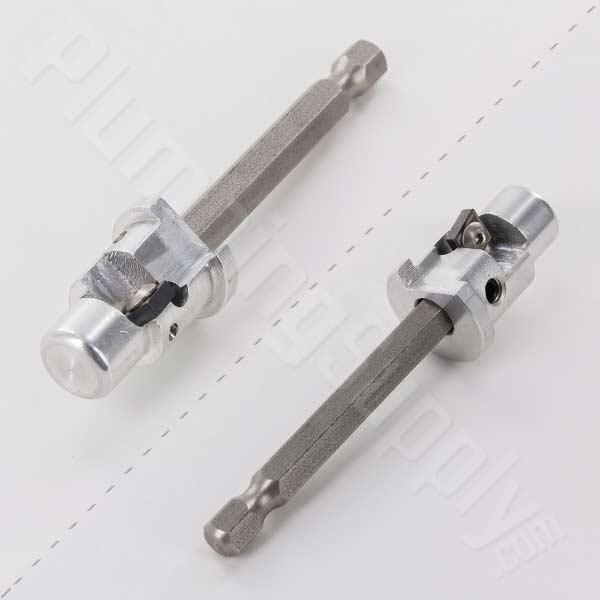

CPVC Pipe - CTS (Copper Tube Size)

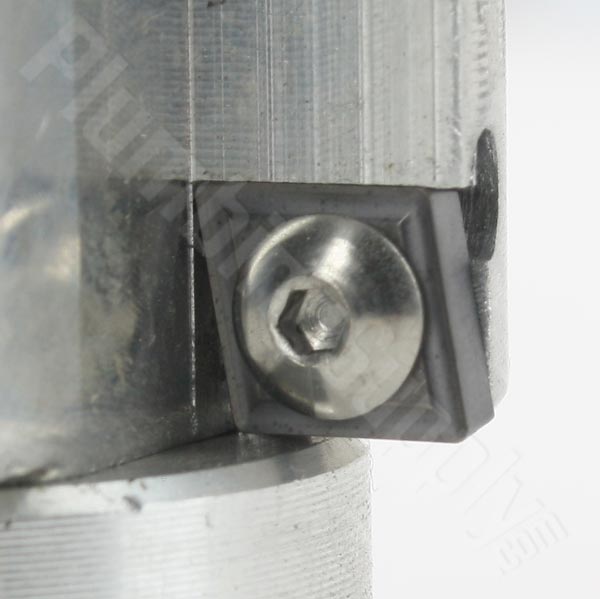

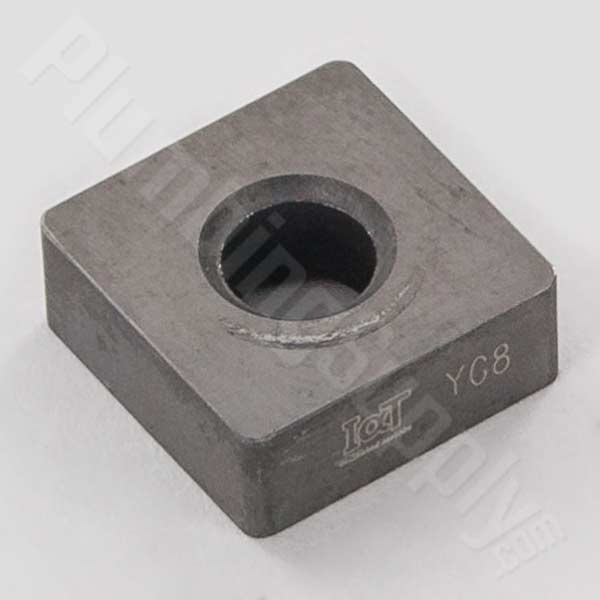

Replacement Parts For
All Plastic Fitting Savers

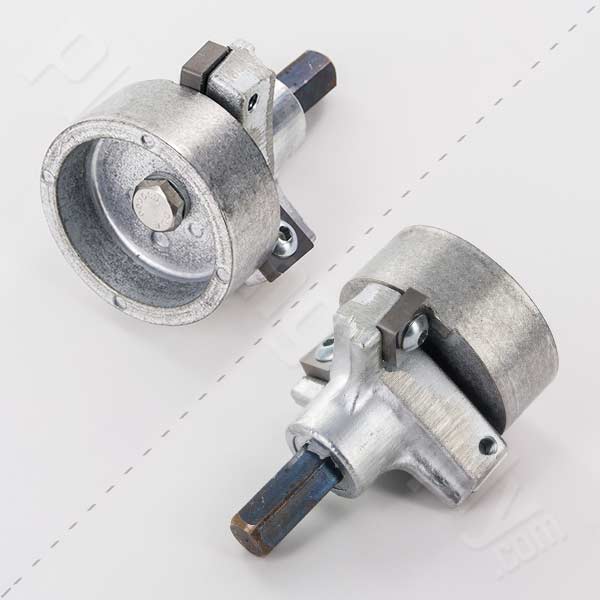

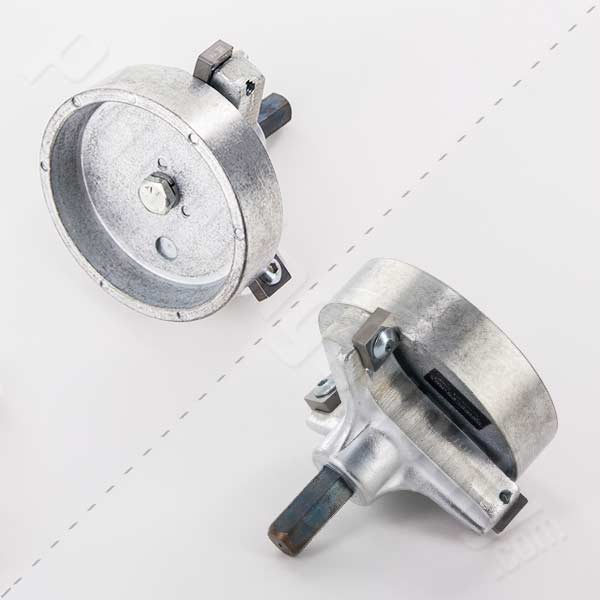

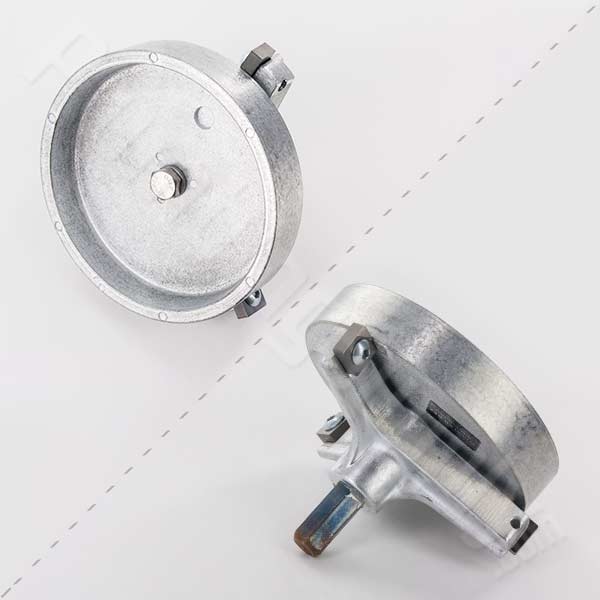

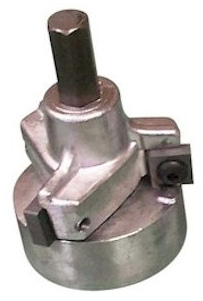

Pipe Hog® PVC / ABS Fitting Reamer
Quickly and accurately bore out solvent welded fittings to make repairs
The Pipe Hog

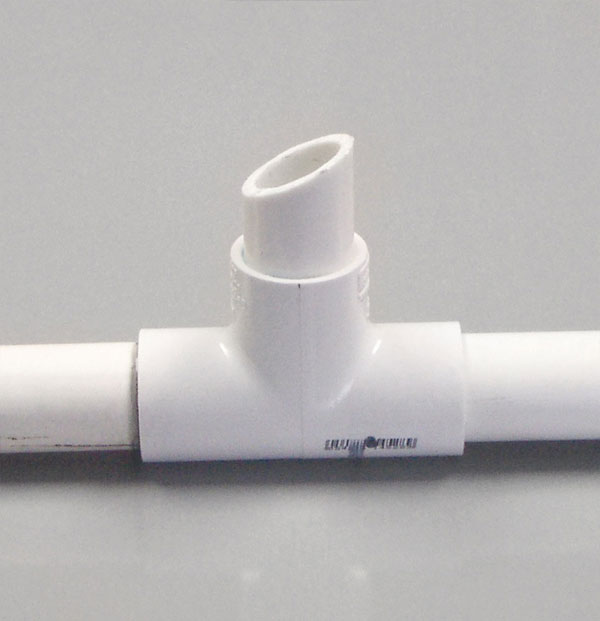

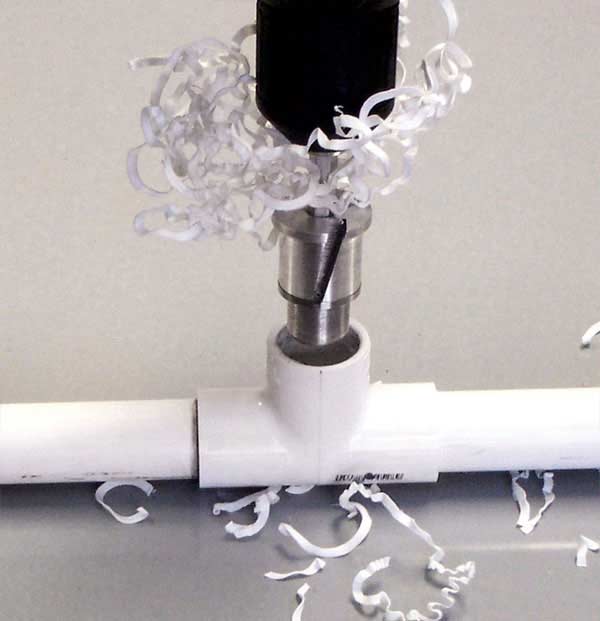

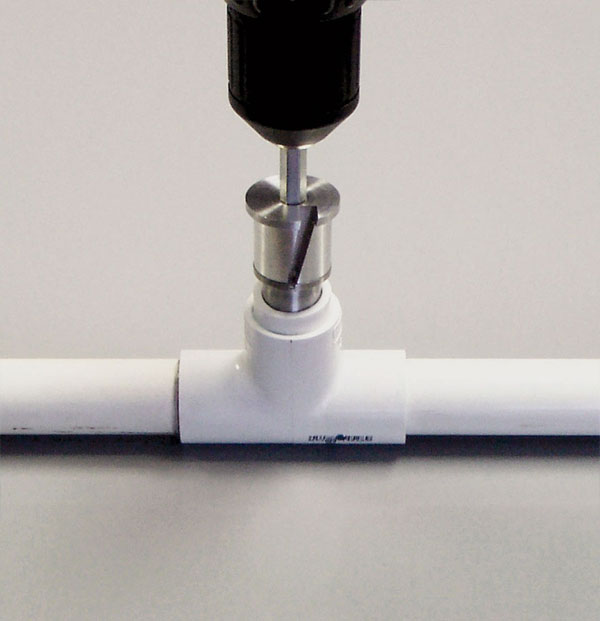

® operates with a 1/2" standard drill (1,000rpm max) and is available in four popular sizes. Simply cut the damaged pipe as close as possible to the fitting, insert the reamer guide into the pipe and pull the trigger!! In seconds, the broken pipe is machined out of the fitting allowing it to be re-used.
click here to learn more about schedule pipe.

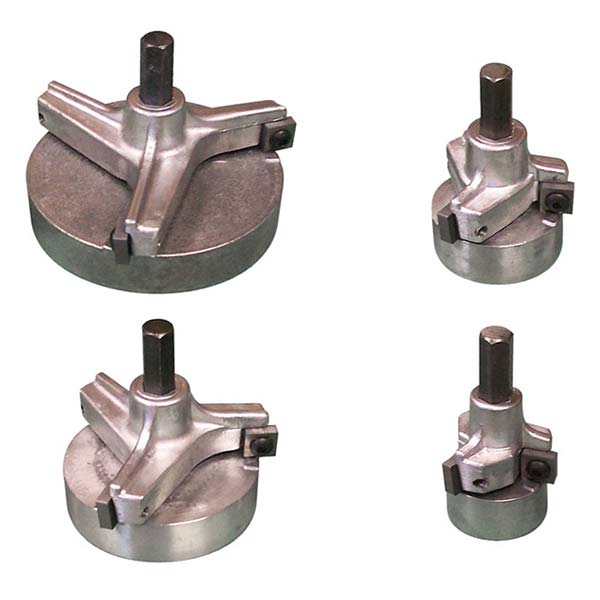

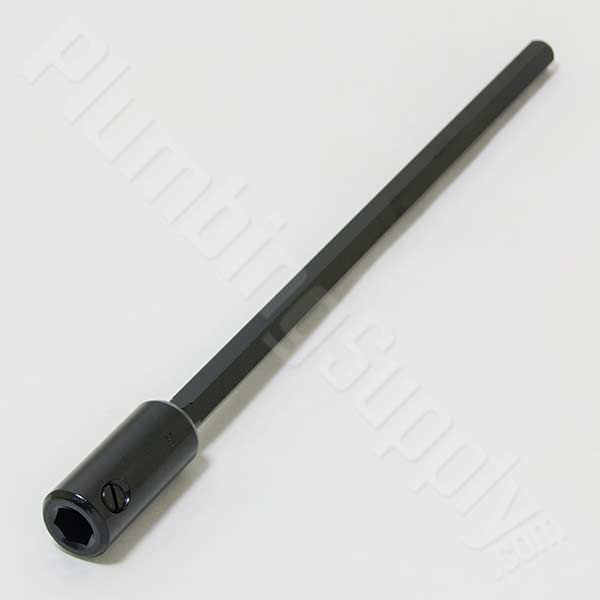

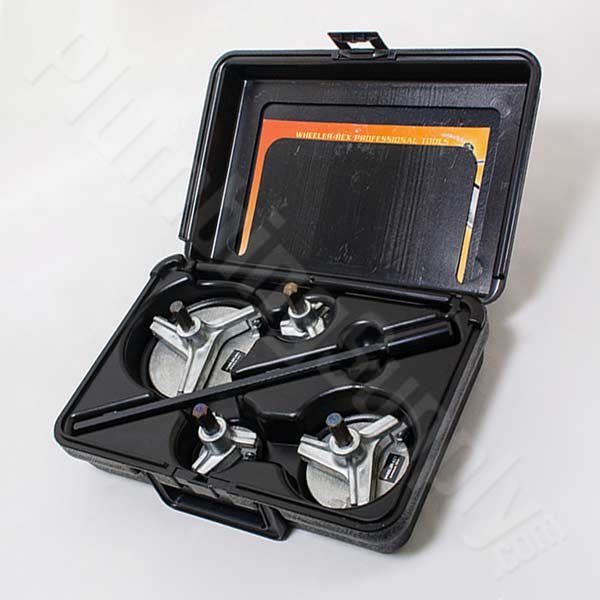

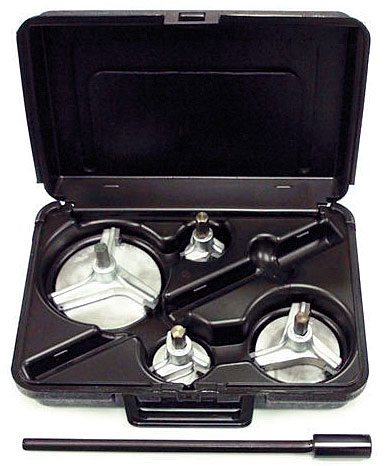

Kit includes one each: 1-1/2" Pipe Hog® for Schedule 40, 2" Pipe Hog® for Schedule 40, 3" Pipe Hog® for Schedule 40, 4" Pipe Hog® for Schedule 40, 12" Extension shaft, Heavy duty carrying case
Pipe Hog® Complete Kit = $419.75

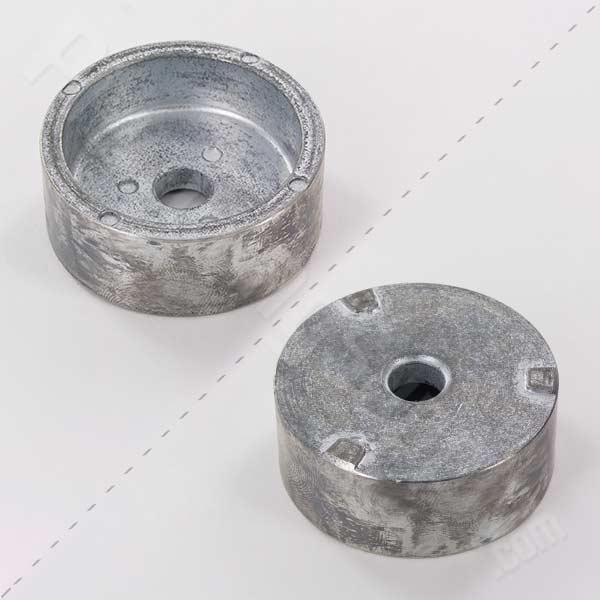

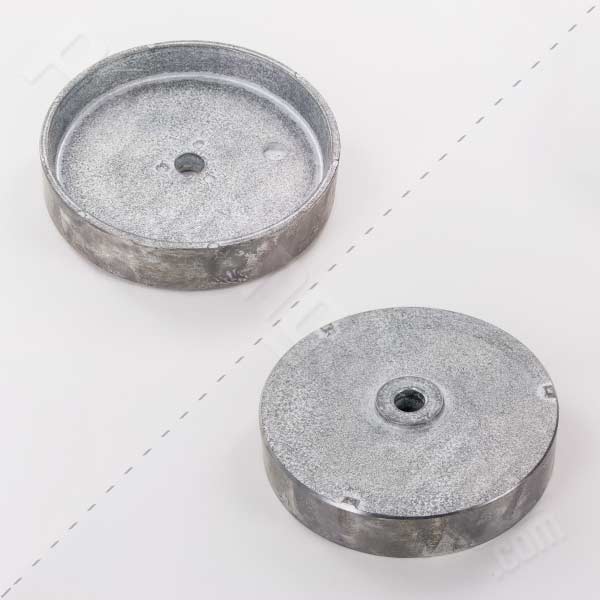

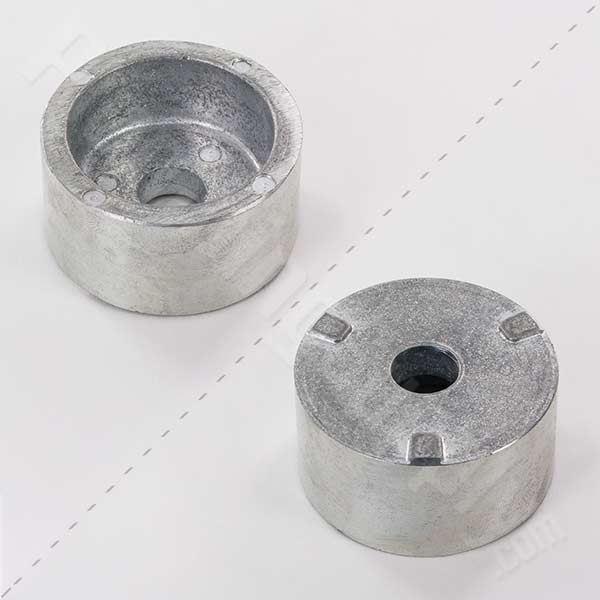

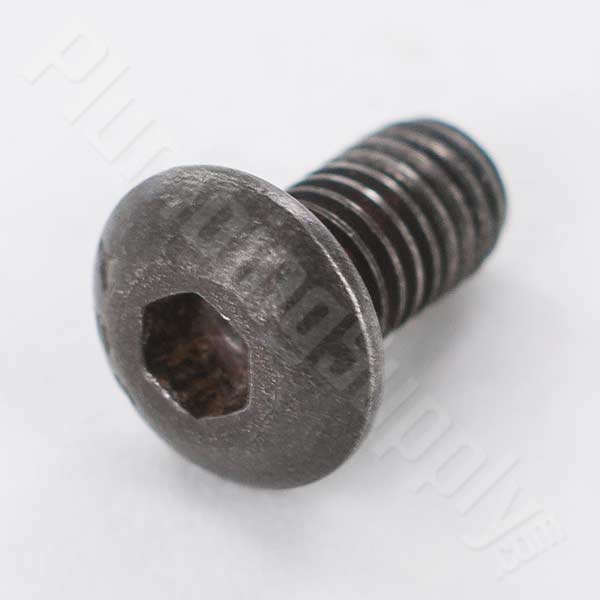

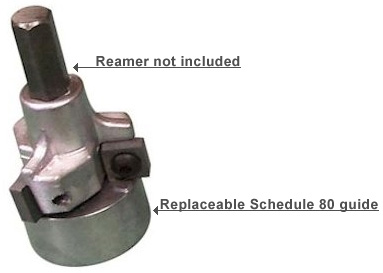

Individual Pipe Hog Parts

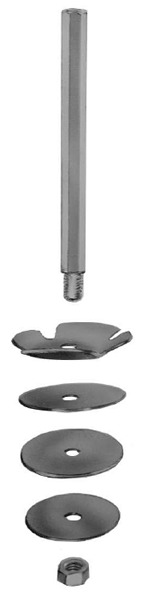

RamBit - The Economy Fitting
Saving Tool
An inexpensive way to reuse PVC/ABS plastic fittings
Features:
- This great tool works on ABS DWV, PVC DWV, PVC Pressure, CPVC (IPS), Rigid PVC Electric Conduct
- These Ram Bit's repair Schedule 40 fittings only
- Makes in-line repair and installations easy - allows you to quickly remove plastic pipe from fitting
- RamBit leaves fittings clean and ready for solvent welding
- Saves plastic fittings and glue on valves which reduces environmental impact and saves you money by not having to replace the fitting
- Saves time
– Cuts 1-1/2", 2", 3", and 4" DWV flush, below slab or sub-floor
– Repairing irrigation and swimming pool manifolds
– Repairing sprinkler risers
– Repairing freeze damaged plastic pipe (if fitting isn't broken and pipe is not still frozen)
- For use with 3/8" heavy duty variable speed drills (sizes up through 2"), but 1/2" drills are recommended
- 3" and 4" models are for use with 1/2" variable speed power drills
- The rate at which you can remove pipe from a fitting will depend on the RPM and power of the drill along with the amount of pressure applied to the drill while reboring
- All models 1/2" thru 4" include 1 guide disk (for Schedule 40 pipe only)
See The RamBit In Action:
Rambit Compatibility Chart
| Size |
Sch 40 |
Drill Size |
| 1/2" |
yes |
3/8" standard
or
3/8" heavy duty
rechargeable |
| 3/4" |
yes |
| 1" |
yes |
| 1 1/4" |
yes |
| 1 1/2" |
yes |
| 2" |
yes |
| 3" |
yes |
1/2"
variable |
| 4" |
yes |
Related Items & Accessories
If these fitting savers won't work for your application, you can try using PVC pipe extenders as another possible solution.
Frequently Asked Questions
Q. "What does schedule or class pipe mean? schedule 40? schedule 80? class 200?"
A. The pipe schedule refers to the pipe wall thickness and is a measure of the pressure a pipe can take without warping or causing failure. The higher the schedule, the thicker the pipe wall. The smaller the diameter of the pipe, the higher the working pressure rating will be. Schedule 40 2" PVC pipe has a working pressure rating of 280 p.s.i., but 1/2" PVC schedule 40 pipe has a working pressure rating of 600 p.s.i. Consequently, each pipe size diameter will have a different working pressure rating. This is not so with PVC Class piping. Class piping designates the working pressure of the pipe to be that of the "Class" no matter what the pipe diameter size is. All diameter sizes of Class 200 piping have a working pressure rating of 200 p.s.i.
For example:
• 1/2-inch nominal size pipe:
Schedule 40 has a wall thickness of 0.109 inches and a working pressure rating of 600 p.s.i.
Schedule 80 has a wall thickness of 0.147 inches and a working pressure rating of 850 p.s.i.
Class 200 has a wall thickness of 0.062 inches and a working pressure rating of 200 p.s.i.
• 2-inch nominal size pipe:
Schedule 40 has a wall thickness of 0.154 inches and a working pressure rating of 280 p.s.i.
Schedule 80 has a wall thickness of 0.218 inches and a working pressure rating of 400 p.s.i.
Class 200 has a wall thickness of 0.113 inches and a working pressure rating of 200 p.s.i.
• 4-inch nominal size pipe:
Schedule 40 has a wall thickness of 0.237 inches and a working pressure rating of 220 p.s.i.
Schedule 80 has a wall thickness of 0.337 inches and a working pressure rating of 320 p.s.i.
Class 200 has a wall thickness of 0.214 inches and a working pressure rating of 200 p.s.i.
As you can see, the relationship between class, schedule and wall thickness changes with the pipe's nominal size, we always suggest double checking your pipe size & pipe wall thickness to ensure you are getting the proper equipment every time.
Customer Testimonials
"For years I have had to deal with the hazards of PVC and an unsound joint or broken parts where you had no choice but to remake them and toss out good pipe work. Your RAM bits are fantastic. Being a Maintenance Manager for 20 Burger Kings I can tell you, I do my fair share of PVC work. Your Staff and company as a whole was a pleasure to do business with. Thank you."
- Mike Goza, Elgin, Illinois 60120-4648
"You had exactly what I was looking for. I had tried to purchase it at 4 to 5 different locations and they thought it was a good idea but did not know where to find it."
- Donald Nicholson, Fuquay Varina, North Carolina 27526-9352
Please note that every customer testimonial shown on our pages has given us written permission to quote them. Our customer's privacy is very important to us so we will never give, share or sell contact information or e-mail addresses to anyone!
