Parts for Geneva Collection Bath & Shower Fixtures
by Grohe

We're sorry, but we no longer offer Grohe Geneva bath fixtures.
We do, however, still offer replacement handles, cartridges, and other parts for these fixtures.

click any image to jump directly to repair parts for that item



Find more Grohe replacement parts for other fixtures


Parts for Geneva Lavatory & Bidet Faucets

Wideset Lavatory Faucet

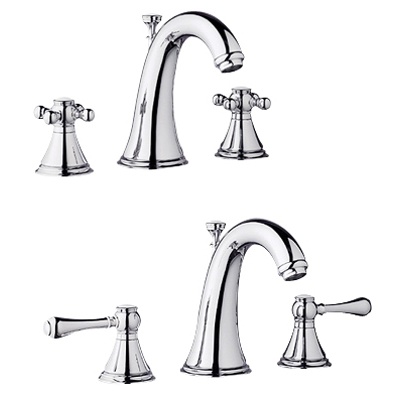

Geneva wideset lav faucet in chrome
20.801 - Widespread Bathroom Faucet
Geneva lav faucet parts diagram

Item # Part Number Description Price & Quantity
1 45.907.000 Upper handle flange - Chrome $85.50
2 45.882.000 1/2" ceramic cartridge - 1/4 turn - RIGHT/HOT stop $49.51
3 45.883.000 1/2" ceramic cartridge - 1/4 turn - LEFT/COLD stop $49.83
4 45.906.000 Bottom handle flange - Chrome $77.92
45.906.R00 Bottom handle flange - Polished Brass Discontinued
5 45.025.000 Shank mounting kit $50.79
6 12.902.00M Coupling nut Discontinued
7 45.791.000 Pop-up lift rod - Chrome $65.85
7.1 45.763.L00 Complete marking piece set - 8 white buttons total
2 sm hot/cold, 2 lg hot/cold, 2 sm plain, 2 lg plain
$58.69
8 13.931.000 Flow control (M24 x 1) - Chrome $64.86
9 46.249.000 Shank mounting kit $22.79
10 28.957.000 Pop-up waste assembly - Chrome $129.95
28.957.BE0 Pop-up waste assembly - Sterling Discontinued
28.957.EN0 Pop-up waste assembly - Brushed Nickel $102.12
28.957.R00 Pop-up waste assembly - Polished Brass Discontinued
28.957.ZB0 Pop-up waste assembly - Oil Rubbed Bronze
10.1 45.324.000 Replacement pop-up plug for 28.957 waste assembly - Chrome $36.95
45.324.R00 Replacement pop-up plug for 28.957 waste assembly - Polished Brass Discontinued
10.2 01.153.000 Replacement waste assembly housing - Chrome $54.33
01.153.R00 Replacement waste assembly housing - Polished Brass Discontinued
10.3 45.264.000 Ball rod Discontinued

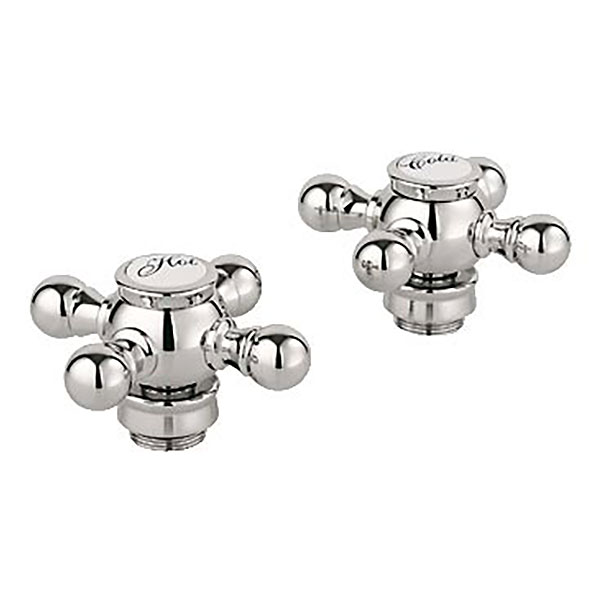

11 18.733.000 Replacement cross handles - sold in pairs - Chrome Discontinued
18.733.BE0 Replacement cross handles - sold in pairs - Sterling
18.733.EN0 Replacement cross handles - sold in pairs - Brushed Nickel
18.733.ZB0 Replacement cross handles - sold in pairs - Oil Rubbed Bronze
11.1 45.953.000 Marking buttons for 18.733 cross handles - set of 3 - Chrome Discontinued
In All Finishes

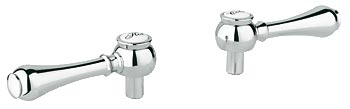

12 18.734.000 Replacement lever handles - sold in pairs - Chrome Discontinued
18.734.BE0 Replacement lever handles - sold in pairs - Sterling
18.734.EN0 Replacement lever handles - sold in pairs - Brushed Nickel Discontinued
18.734.ZB0 Replacement lever handles - sold in pairs - Oil Rubbed Bronze Discontinued

- OR - View Cart

Bidet Faucet

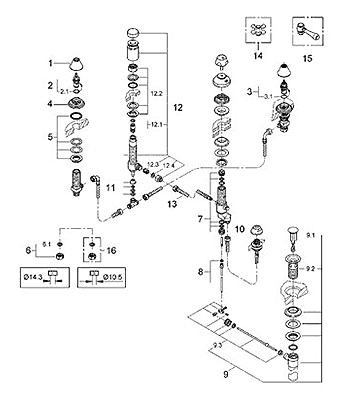

Geneva bidet faucet parts breakdown

Item # Part Number Description Price & Quantity
1 45.907.000 Upper handle flange - Chrome $85.50
2 45.882.000 1/2" ceramic cartridge - 1/4 turn - RIGHT/HOT stop $49.51
3 45.883.000 1/2" ceramic cartridge - 1/4 turn - LEFT/COLD stop $49.83
4 45.906.000 Bottom handle flange - Chrome $77.92
45.906.R00 Bottom handle flange - Polished Brass Discontinued
5 45.025.000 Shank mounting kit $50.79
6 12.901.00M Coupling nut Discontinued
7 45.026.000 Screw connection (M30 x 1.5mm) Discontinued
8 45.027.000 Seal kit $33.13
9 45.646.000 Swivel vertical pop-up rod - Chrome Discontinued
10 28.957.000 Pop-up waste assembly - Chrome $129.95
28.957.BE0 Pop-up waste assembly - Sterling Discontinued
28.957.EN0 Pop-up waste assembly - Brushed Nickel $102.12
28.957.R00 Pop-up waste assembly - Polished Brass Discontinued
28.957.ZB0 Pop-up waste assembly - Oil Rubbed Bronze
10.1 45.324.000 Replacement pop-up plug for 28.957 waste assembly - Chrome $36.95
45.324.R00 Replacement pop-up plug for 28.957 waste assembly - Polished Brass Discontinued
10.2 01.153.000 Replacement waste assembly housing - Chrome $54.33
01.153.R00 Replacement waste assembly housing - Polished Brass Discontinued
10.3 45.264.000 Ball rod Discontinued
11 24.210.000 Vertical rim spray - Chrome $129.75
11.1 02.664.000 Vertical spray face - Chrome Discontinued
12 45.704.000 11-3/4" flexible hose - 3/8" x 3/8" connections $43.91
13 45.852.000 Complete vacuum breaker - Chrome $603.80
13.1 45.854.000 Double ball vacuum breaker Discontinued
13.2 45.855.000 Vacuum breaker mounting kit Discontinued
13.3 08.565.000 Non-return check valve $16.29
14 46.254.000 Flexible connector (3/8" x 5/8" x 13-3/4") $42.78
15 18.733.000 Replacement cross handles - sold in pairs - Chrome Discontinued
18.733.BE0 Replacement cross handles - sold in pairs - Sterling
18.733.EN0 Replacement cross handles - sold in pairs - Brushed Nickel
18.733.ZB0 Replacement cross handles - sold in pairs - Oil Rubbed Bronze
15.1 45.953.000 Marking buttons for 18.733 cross handles - set of 3 - Chrome Discontinued
In All Finishes
16 18.734.000 Replacement lever handles - sold in pairs - Chrome Discontinued
18.734.BE0 Replacement lever handles - sold in pairs - Sterling
18.734.EN0 Replacement lever handles - sold in pairs - Brushed Nickel Discontinued
18.734.ZB0 Replacement lever handles - sold in pairs - Oil Rubbed Bronze Discontinued

- OR - View Cart

Parts for Geneva Tub & Shower Fixtures

Roman Tub Fillers

Geneva Roman tub filler with handshower in chrome
25.054/25.506 - Roman Tub Fillers
Roman tub filler faucet parts schematic

Item # Part Number Description Price & Quantity
1 45.907.000 Upper handle flange - Chrome $85.50
2 45.882.000 1/2" ceramic cartridge - 1/4 turn - RIGHT/HOT stop $49.51
3 45.883.000 1/2" ceramic cartridge - 1/4 turn - LEFT/COLD stop $49.83
4 45.906.000 Bottom handle flange - Chrome $77.92
45.906.R00 Bottom handle flange - Polished Brass Discontinued
5 45.025.000 Shank mounting kit $50.79
6 45.817.000 Pop-up lift rod - Chrome $55.17
45.817.R00 Pop-up lift rod - Polished Brass Discontinued
6.1 45.763.L00 Complete marking piece set - 8 white buttons total
2 sm hot/cold, 2 lg hot/cold, 2 sm plain, 2 lg plain
$58.69
7 13.934.000 Flow control (M28 x 1) - Chrome $64.56
13.934.R00 Flow control (M28 x 1) - Polished Brass Discontinued
8 46.078.000 Shank mounting kit $65.26
9 45.470.000 Diverter valve cartridge $65.00
10 08.565.000 Non-return check valve $16.29
11 45.819.000 Handshower holder - Chrome Discontinued
11.1 07.660.000 Shank mounting kit Discontinued
12 18.733.000 Replacement cross handles - sold in pairs - Chrome Discontinued
18.733.BE0 Replacement cross handles - sold in pairs - Sterling
18.733.EN0 Replacement cross handles - sold in pairs - Brushed Nickel
18.733.ZB0 Replacement cross handles - sold in pairs - Oil Rubbed Bronze
12.1 45.953.000 Marking buttons for 18.733 cross handles - set of 3 - Chrome Discontinued
In All Finishes
13 18.734.000 Replacement lever handles - sold in pairs - Chrome Discontinued
18.734.BE0 Replacement lever handles - sold in pairs - Sterling
18.734.EN0 Replacement lever handles - sold in pairs - Brushed Nickel Discontinued
18.734.ZB0 Replacement lever handles - sold in pairs - Oil Rubbed Bronze Discontinued

- OR - View Cart

Shower Volume Control Valves

Grohe Geneva shower volume controls
19.829/19.837 - Volume Controls

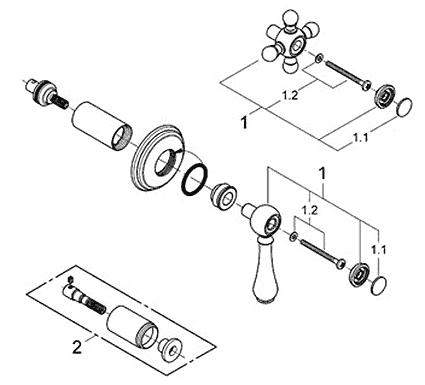

Grohe Geneva shower volume control parts schematic

Item # Part Number Description Price & Quantity
1 45.774.000 Large cross handle - Chrome $104.93
45.775.000 Large lever handle - Chrome $103.27
1.1 45.763.L00 Complete marking piece set - 8 white buttons total
2 sm hot/cold, 2 lg hot/cold, 2 sm plain, 2 lg plain
$58.69
1.2 47.602.000 Fixing set/handle screw - Chrome $21.47
2 45.565.000 Extension kit - Chrome $45.05
45.565.R00 Extension kit - Polished Brass $76.47
Not Shown 45.882.000 1/2" ceramic cartridge for 29.273 shower volume control rough-in valve $49.51
Not Shown 45.888.000 3/4" ceramic cartridge for 29.274 shower volume control rough-in valve $91.30

- OR - View Cart

Three-Port Shower Diverter

Grohe Geneva shower diverters
19.219/19.220 - Shower Diverters

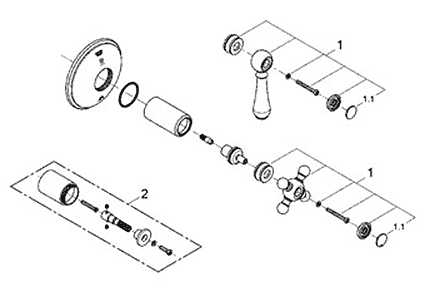

Grohe Geneva shower diverters parts schematic

Item # Part Number Description Price & Quantity
1 45.774.000 Large cross handle - Chrome $104.93
45.775.000 Large lever handle - Chrome $103.27
1.1 45.763.L00 Complete marking piece set - 8 white buttons total
2 sm hot/cold, 2 lg hot/cold, 2 sm plain, 2 lg plain
$58.69
1.2 47.602.000 Fixing set/handle screw - Chrome $21.47
2 45.979.000 1-1/2" Extension kit - Chrome $55.51
Not Shown 45.676.000 Ceramic cartridge for 3-port (29.712) and 5-port (29.714) diverter valves $123.06

- OR - View Cart

Pressure Balance Valves

Grohe Geneva shower pressure balance valves
19.722/19.725 - Shower Valves

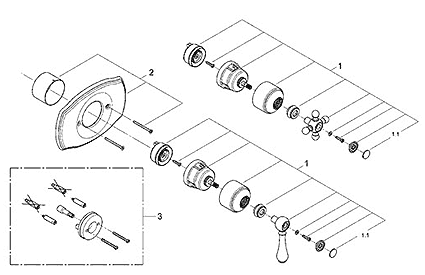

Grohe Geneva pressure balance shower valves parts breakdown

Item # Part Number Description Price & Quantity
1 47.703.000 Large cross handle - Chrome Discontinued
47.710.000 Large lever handle - Chrome Discontinued
1.1 45.763.L00 Complete marking piece set - 8 white buttons total
2 sm hot/cold, 2 lg hot/cold, 2 sm plain, 2 lg plain
$58.69
2 47.616.000 Escutcheon - Chrome Discontinued
47.616.R00 Escutcheon - Polished Brass Discontinued
3 47.344.000 1" Extension kit - Chrome $62.54

- OR - View Cart

Shower Thermostats

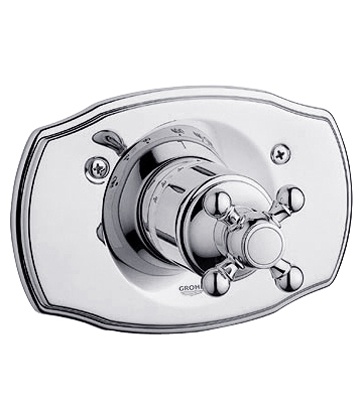

Grohe Geneva shower thermostat
19.615 - Shower Thermostat

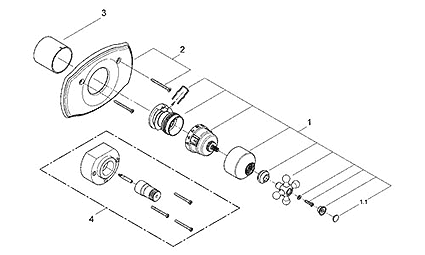

Grohe Geneva thermostatic shower valves parts breakdown

Item # Part Number Description Price & Quantity
1 47.711.000 Large cross handle - Chrome $150.29
1.1 45.763.L00 Complete marking piece set - 8 white buttons total
2 sm hot/cold, 2 lg hot/cold, 2 sm plain, 2 lg plain
$58.69
2 47.613.000 Escutcheon - Chrome $257.16
47.613.R00 Escutcheon - Polished Brass $369.94
3 09.949.000 Sleeve - Chrome $33.79
Not Shown 47.582.000 3/4" paraffin cartridge for 34.124 GrohTherm valve $215.20

- OR - View Cart
