Drop-In Stainless Steel Sinks

by Griffin


Superior quality sinks from Griffin may be the last you'll ever need. These high-grade, stainless steel kitchen sinks offer over 40 years of customer satisfaction in a product that is made to last. With styles ranging from a single bowl coved corner style to the triple bowl square corner design, we are sure to have the sink that meets your needs. Plus, don't forget to see Griffin's beautiful new residential styles.

Proudly made in the USA

NSF Listed Coved Corner Drop-In Sinks

Griffin coved corner NSF approved single bowl sink
Griffin double bowl coved corner NSF approved sink

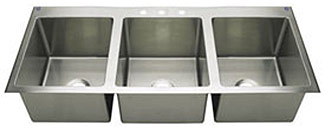

Griffin triple bowl coved corner kitchen sink
Griffin triple bowl coved corner kitchen sink
These rounded corner design drop-in sinks feature:
  • These satin finished drop in sinks are great for converting existing counters to sink stations, or for using in new construction to be more space-efficient
  • NSF approved for use as food equipment, so these are great for restaurants or professional kitchens
  • Durable 16 gauge, type-304 construction
  • Available in 1,2,3 and 4 compartment models with 12" sink depth
  • True-Gauge bowl construction means the smooth-finished seams and corners are just as sturdy as the walls of the sink
  • 3-1/2" basket drains included for each bowl
  • Front and side rims are 1-1/2" wide and rear deck is 3" wide, as well as providing plenty of support for the sink
  • Faucet holes are 1-1/8" diameter
  • Coved compartment has 3/4" radius, both horizontal and vertical for ease of cleaning
  • Unitized construction with stiffeners welded directly to sink bowls to ensure maximum rigidity
  • Sink compartment(s) have noise reducing pads to deaden sound
  • 10yr manufacturer's warranty
  • Sinks proudly made in the USA

Drop in sinks are a great idea for kitchens without a lot of extra floor space for a freestanding sink unit. Let your floor space do double duty as a cabinet below and drop in sink above with these great commercial kitchen sinks. Whether you need a single, double, triple, or quadruple bowl, these NSF approved sinks will meet your hand washing, food prep, and dishwashing needs.

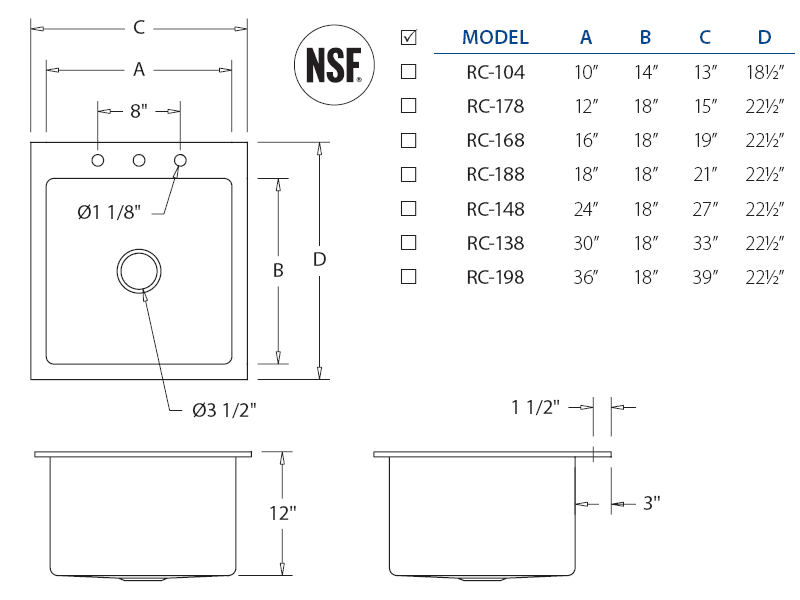

Single Bowl Drop-in Sinks


Model (Old Model #) Bowl Depth Bowl Size Overall Dimensions Price & Quantity
PNC.104 RC-104 12" 10" x 14" 13" x 18-1/2" $1,246.87 Enter a quantity and
PNC.178 RC-178 12" 12" x 18" 15" x 22-1/2" $1,309.85 Enter a quantity and
PNC.168 RC-168 12" 16" x 18" 19" x 22-1/2" $1,359.85 Enter a quantity and
PNC.188 RC-188 12" 18" x 18" 21" x 22-1/2" $1,403.86 Enter a quantity and
PNC.148 RC-148 12" 24" x 18" 27" x 22-1/2" $1,448.80 Enter a quantity and
PNC.138 RC-138 12" 30" x 18" 33" x 22-1/2" $1,551.55 Enter a quantity and
PNC.198 RC-198 12" 36" x 18" 39" x 22-1/2" $1,850.85 Enter a quantity and

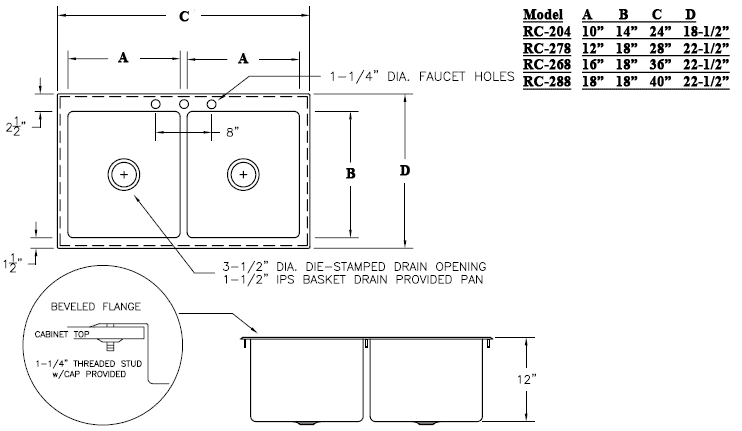

Double Bowl Drop-in Sinks


Model (Old Model #) Bowl Depth Bowl Size Overall Dimensions Price & Quantity
PNC.204 RC-204 12" 10" x 14" 24" x 18-1/2" $1,693.85 Enter a quantity and
PNC.278 RC-278 12" 12" x 18" 28" x 22-1/2" $1,765.29 Enter a quantity and
PNC.268 RC-268 12" 16" x 18" 36" x 22-1/2" $1,887.59 Enter a quantity and
PNC.288 RC-288 12" 18" x 18" 40" x 22-1/2" $1,646.24 Enter a quantity and

Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.

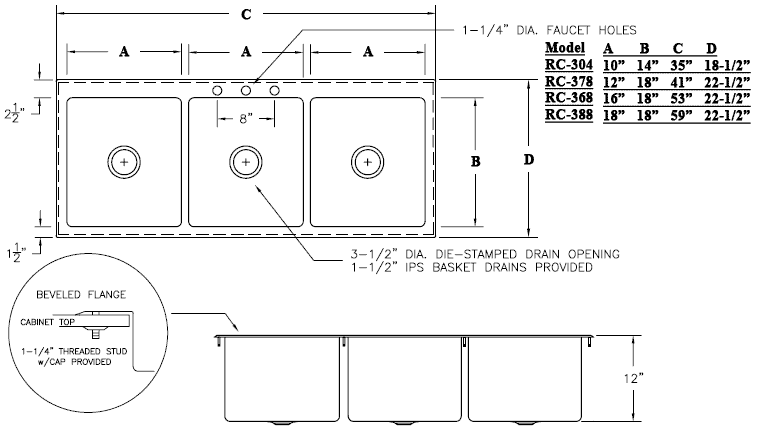

Triple Bowl Drop-in Sinks


Model (Old Model #) Bowl Depth Bowl Size Overall Dimensions Price & Quantity
PNC.304 RC-304 12" 10" x 14" 35" x 18-1/2" $1,870.87 Enter a quantity and
PNC.378 RC-378 12" 12" x 18" 41" x 22-1/2" $1,986.08 Enter a quantity and
PNC.368 RC-368 12" 16" x 18" 53" x 22-1/2" $2,177.95 Enter a quantity and
PNC.388 RC-388 12" 18" x 18" 59" x 22-1/2" $2,191.74 Enter a quantity and

Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.

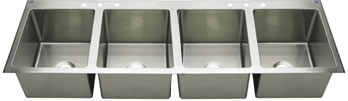

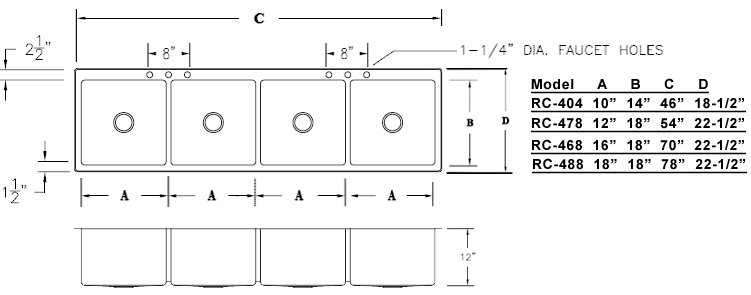

Four Bowl Drop-in Sinks


Model (Old Model #) Bowl Depth Bowl Size Overall Dimensions Price & Quantity
PNC.404 RC-404 12" 10" x 14" 46" x 18-1/2" $2,330.74 Enter a quantity and
PNC.478 RC-478 12" 12" x 18" 54" x 22-1/2" $2,509.99 Enter a quantity and
PNC.468 RC-468 12" 16" x 18" 70" x 22-1/2" $3,234.36 Enter a quantity and
PNC.488 RC-488 12" 18" x 18" 78" x 22-1/2" $3,327.71 Enter a quantity and

Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.

Square Corner Drop-In Utility Sinks

Griffin squared corner single bowl sink
Griffin double bowl squared corner design sink
Griffin triple bowl square corner design sink

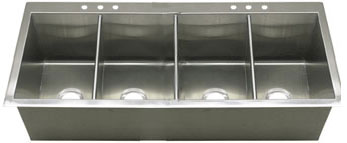

Griffin four bowl square corner design sink
These squared corner design drop-in sinks feature:
  • These square corner sinks give you the most space for your bowl size as the edges do not slope
  • Unibody 16 gauge, type-304 construction for maximum durability
  • Sink compartments are sound deadened with noise reducing pads
  • All seams are welded and ground to a smooth finish
  • Front and side rims are 1-1/2", while rear deck is 3" wide with 1-1/8" faucet holes designed to fit standard commercial deck mount faucets
  • Available in 1,2,3 and 4 compartment models
  • 3-1/2" basket drain included
  • 10yr manufacturer's warranty
  • Sinks proudly made in the USA

These squared corner sinks are manufactured with the same attention to detail Griffin gives all of their stainless steel sinks. All corners are square, which gives you a bit more room at the bottom of the bowl than sinks with sloped edges and coved corners. Designed to handle some of the toughest commercial environments, these sinks are great for numerous applications where a utility sink is needed, but when NSF approval is not required, such as some kitchens, laundry rooms, industrial applications, or even (we've heard) in a photo lab!

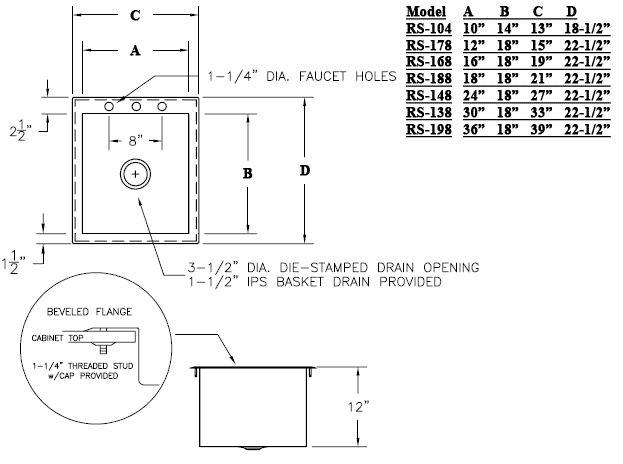

Single Bowl Drop-in Sinks


Model (Old Model #) Bowl Depth Bowl Size Overall Dimensions Price & Quantity
PNS.104 RS-104 12" 10" x 14" 13" x 18-1/2" $824.21 Enter a quantity and
PNS.178 RS-178 12" 12" x 18" 15" x 22-1/2" $887.72 Enter a quantity and
PNS.168 RS-168 12" 16" x 18" 19" x 22-1/2" $965.10 Enter a quantity and
PNS.188 RS-188 12" 18" x 18" 21" x 22-1/2" $999.98 Enter a quantity and
PNS.148 RS-148 12" 24" x 18" 27" x 22-1/2" $1,090.07 Enter a quantity and
PNS.138 RS-138 12" 30" x 18" 33" x 22-1/2" $1,179.89 Enter a quantity and
PNS.198 RS-198 12" 36" x 18" 39" x 22-1/2" $1,285.31 Enter a quantity and

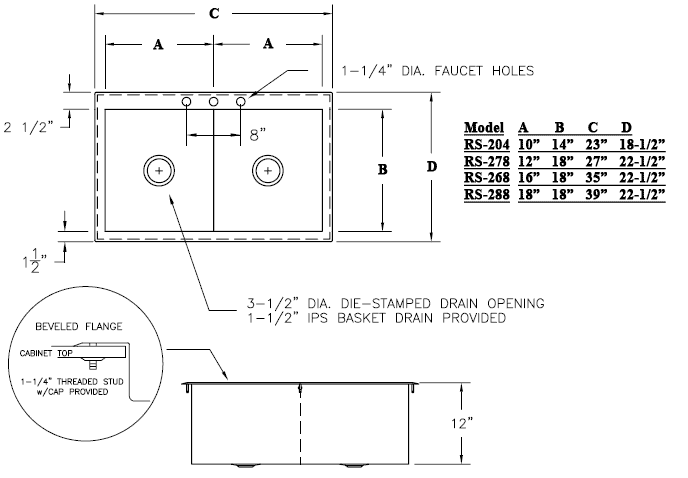

Double Bowl Drop-in Sinks


Model (Old Model #) Bowl Depth Bowl Size Overall Dimensions Price & Quantity
PNS.204 RS-204 12" 10" x 14" 23" x 18-1/2" $1,109.39 Enter a quantity and
PNS.278 RS-278 12" 12" x 18" 27" x 22-1/2" $1,239.48 Enter a quantity and
PNS.268 RS-268 12" 16" x 18" 35" x 22-1/2" $1,441.24 Enter a quantity and
PNS.288 RS-288 12" 18" x 18" 39" x 22-1/2" $1,433.92 Enter a quantity and

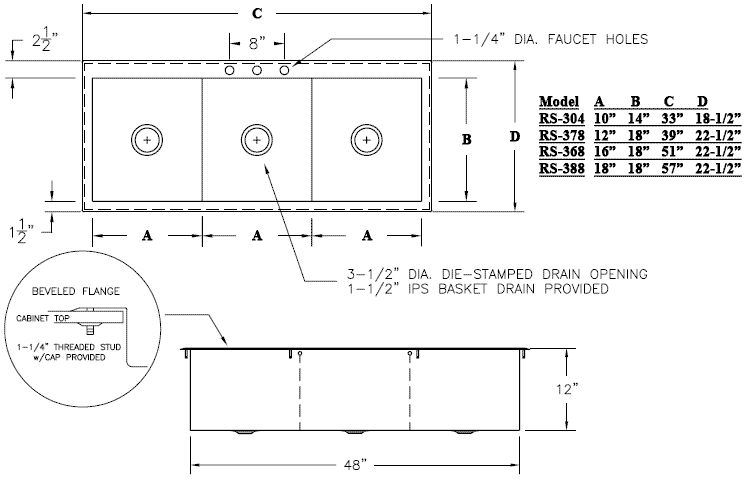

Triple Bowl Drop-in Sinks


Model (Old Model #) Bowl Depth Bowl Size Overall Dimensions Price & Quantity
PNS.304 RS-304 12" 10" x 14" 33" x 18-1/2" $1,421.36 Enter a quantity and
PNS.378 RS-378 12" 12" x 18" 39" x 22-1/2" $1,584.41 Enter a quantity and
PNS.368 RS-368 12" 16" x 18" 51" x 22-1/2" $1,764.40 Enter a quantity and
PNS.388 RS-388 12" 18" x 18" 57" x 22-1/2" $1,882.11 Enter a quantity and

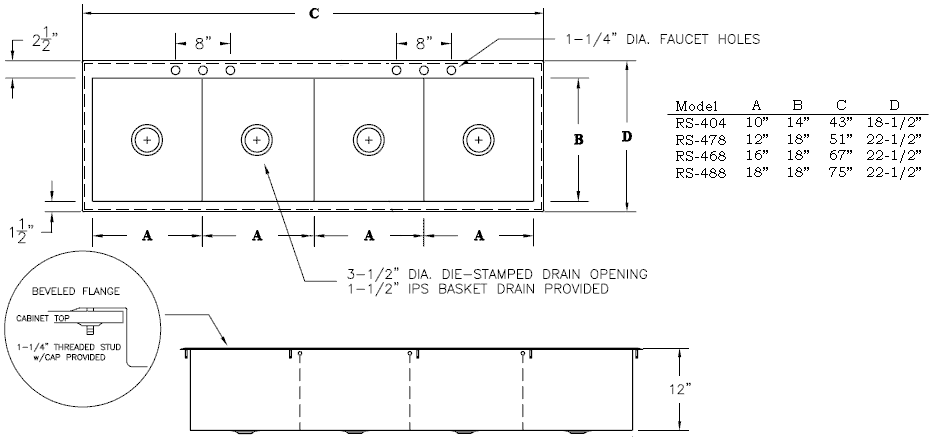

Four Bowl Drop-in Sinks


Model (Old Model #) Bowl Depth Bowl Size Overall Dimensions Price & Quantity
PNS.404 RS-404 12" 10" x 14" 43" x 18-1/2" $2,017.85 Enter a quantity and
PNS.478 RS-478 12" 12" x 18" 51" x 22-1/2" $2,217.75 Enter a quantity and
PNS.468 RS-468 12" 16" x 18" 67" x 22-1/2" $2,524.42 Enter a quantity and
PNS.488 RS-488 12" 18" x 18" 75" x 22-1/2" $2,757.98 Enter a quantity and


Looking for faucets made in the USA? Check out our extensive selection of quality Fisher commercial faucets all made right here in the United States.


Related Items & Accessories



Frequently Asked Questions

Q. "Please explain the best gauge of stainless and which is longer lasting?"
A. The lower the number, the thicker the material. In our opinion, 22 gauge is bare minimum - builder quality. During the manufacturing process, stainless steel sinks are "stamped" into shape. That means that the material stretches and therefore the corners can be very thin. We suggest at least 20 gauge and preferably 18 gauge.

Q. "What is True-Gauge?"
A. Unlike a stamped sink where metal gets stretched thin in certain places, True-Gauge sinks are folded meaning that every part of the sink is the same gauge. Whether it be the welds, corners, or bowl; True-Gauge assures that every part of your sink will have the same gauge.

Q. "What do the different types of stainless steel (304, 316, etc) mean?"
A. The term "stainless steel" refers to specific grades of steel that contain more than 10% chromium. Stainless steel may also include a variety of other elements (such as nickel, titanium, molybdenum, etc); it resists corrosion and is generally a stronger, more reliable steel. The most common grades of stainless steel are:

Type 304: Aside from having a higher content of chromium than most other types of stainless steel, type 304 also contains nickel; this enables it to withstand most ordinary corrosion in architecture, is durable in typical food processing environments, and resists most chemicals.

Type 316: Similar to type 304, but also contains a small amount of molybdenum, which is an alloy element #304 does not contain (but one that provides even stronger resistance to some deterioration). Types 304 and 316 are grades of stainless steel that are most often used in plumbing, as well as in the manufacturing of kitchen utensils and sinks.

Type 409: Does not contain virtually any nickel at all, but also is the stainless steel that contains the least amount of chromium. Type 409 is more suitable for high temperature applications, which is why it's often used in automotive trim and exhaust systems, or hot water tanks.

Type 410: Also does not contain any significant nickel; its primary difference to type 409 stainless is characterized by the use of heat treatment for hardening and strengthening. Type 410 is not appropriate for severely corrosive applications, but used instead in environments that require high strength; this is why it's the type of stainless steel that's often used in surgical equipment.

Type 430: Another plain-chromium stainless steel, similar to type 409, but is usually used in decorative applications.
