Grid Strainer Bathroom Sink Drains

• Classic grid strainer top with 19 holes for fast draining
• Fits 1-1/2" sink openings with 1-1/4" OD x 5-3/4" long tailpiece
• Strong, long-lasting 17 gauge construction
• All exposed brass is fully polished in designer finishes
• Perfect for thick wall vessels and porcelain sinks
• Includes two rubber washers and lock nut to ensure a secure fit
• Available with or without overflow holes

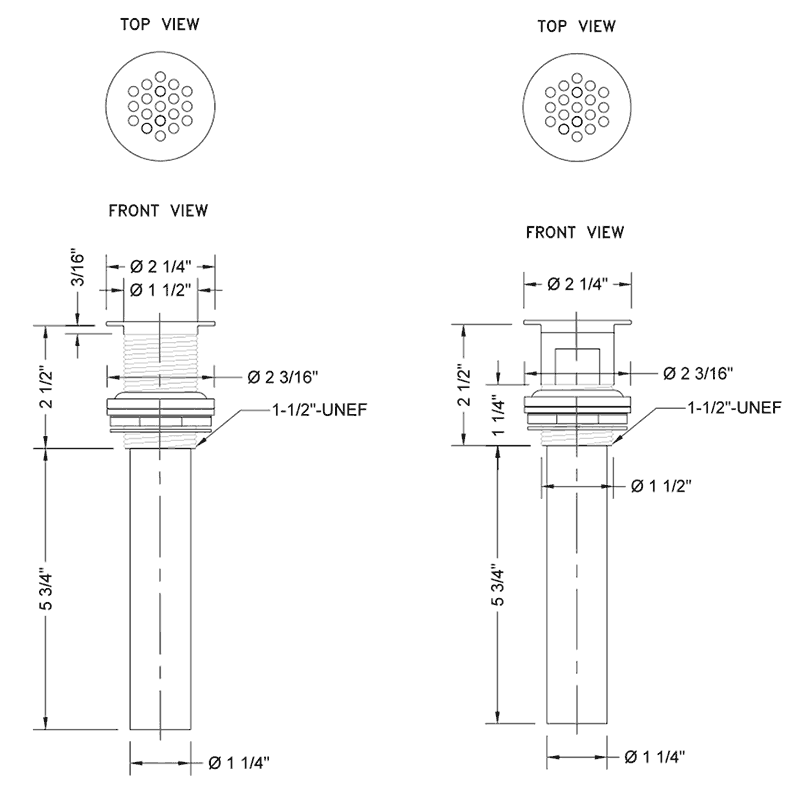

• View 808 / 810 drain specifications

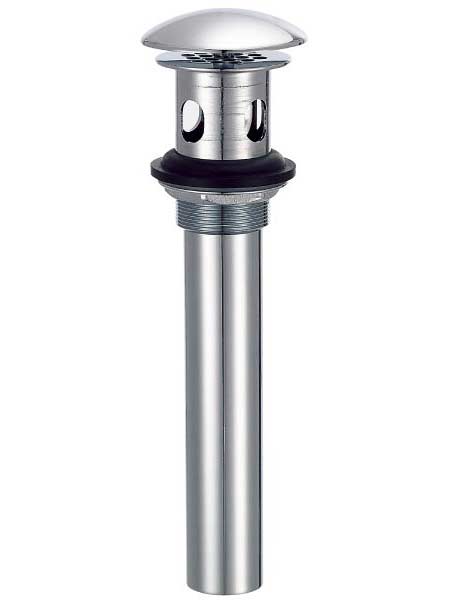

• Stylish drain with dome cover over the grid to conceal the drain opening and add a finished look to your sink
• Works with sinks that have overflow drains
• Grid strainer design helps prevent lost items and is easy to install
• Fits 1-1/2" sink drain holes with a 2-1/4" maximum sink thickness
• Strong metal drain body with 1-1/4" OD tailpiece
• Available in designer finishes to match your other Danze fixtures

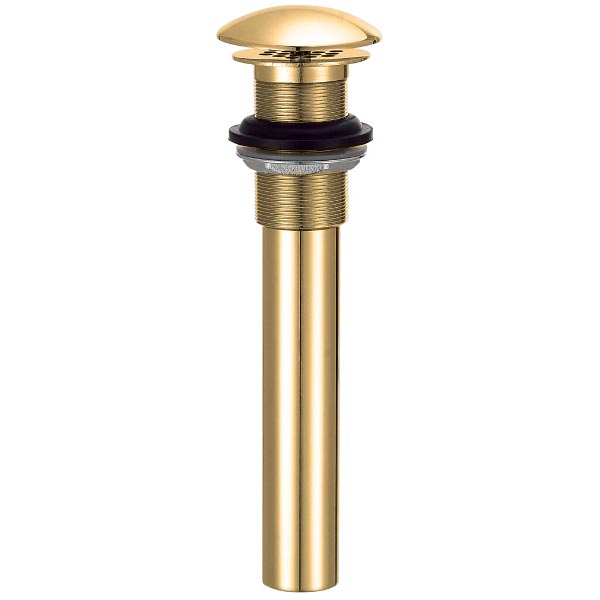

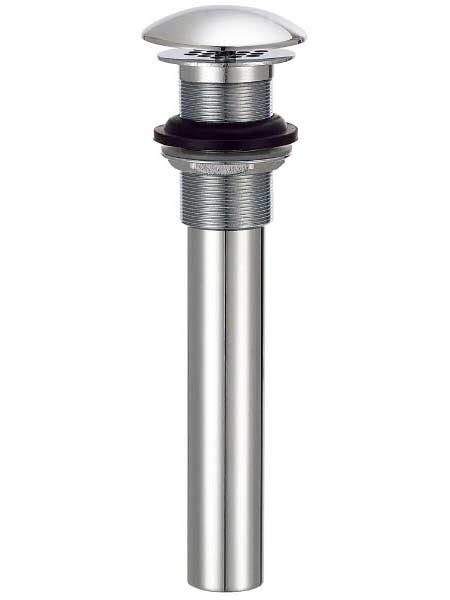

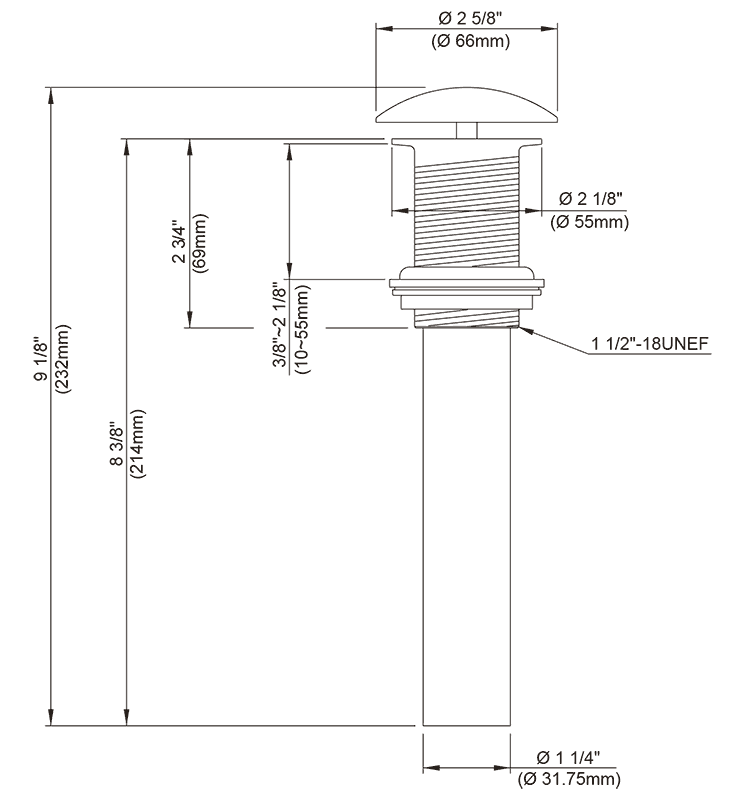

• View detailed D495082 drain NO overflow dimensions

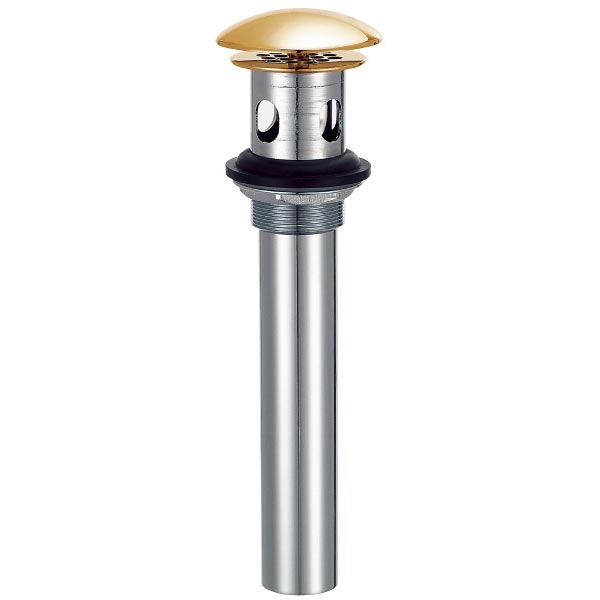

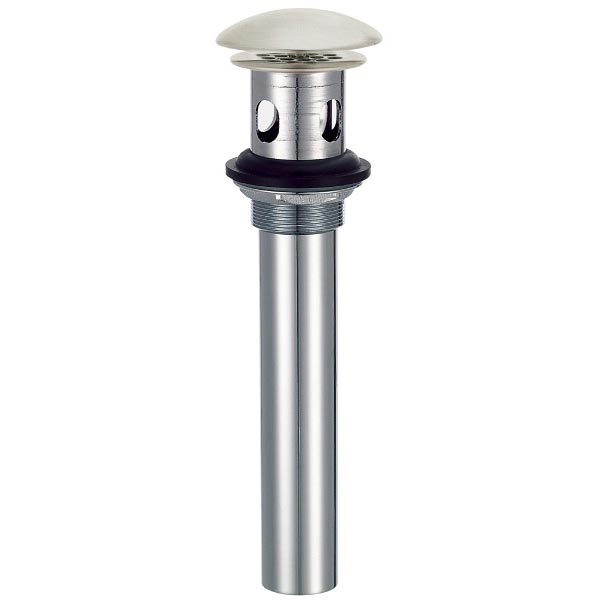

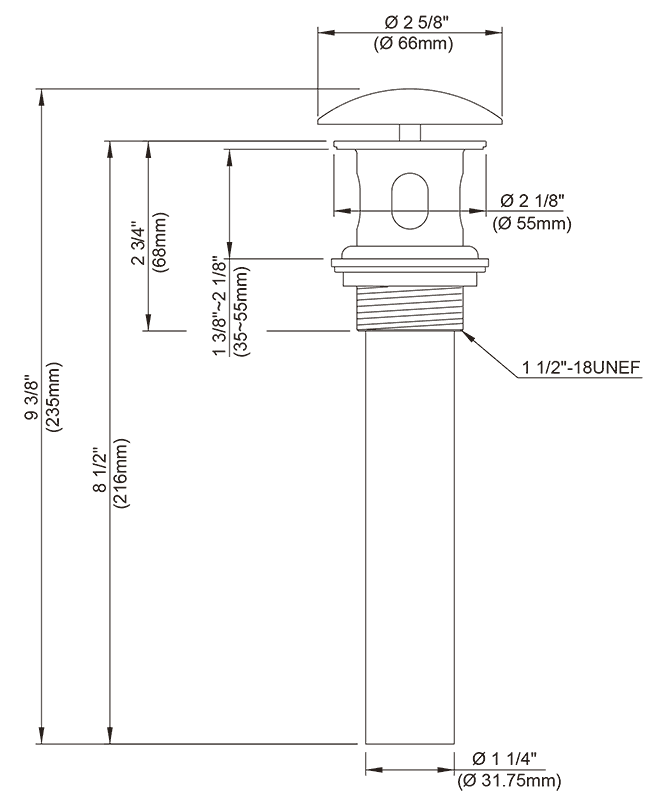

• View detailed D495008 drain WITH overflow dimensions

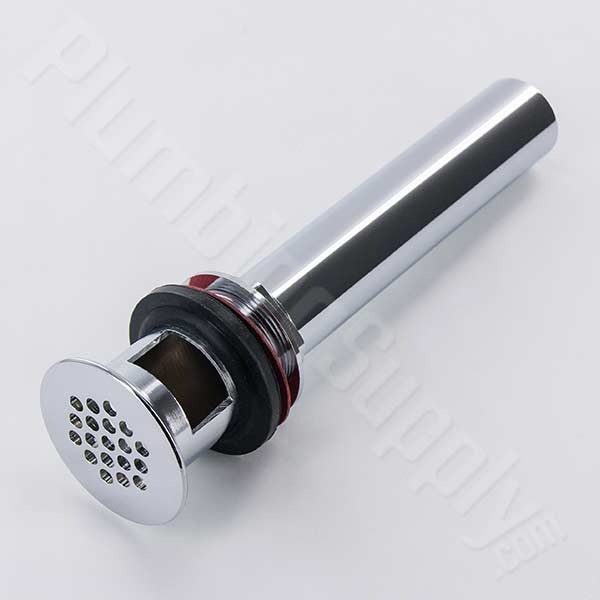

• Fits standard lavatory 1-1/2" sink openings
• Strong, long-lasting chrome plated brass drain body
• 1-1/4" OD x 6" brass 17 gauge tailpiece
• Includes rubber washers and lock nut to ensure a secure fit
• Overflow holes for use with overflow sinks

• Extra long 3-3/4" threading for thick counters
• Strong, long-lasting 17 gauge construction
• Perfect for thick wall vessels and porcelain sinks
• Includes two rubber washers and two lock nuts to ensure a secure fit
• Available with or without overflow holes
• All exposed brass is fully polished in designer finishes (including tailpiece)
• Classic grid strainer top with 19 holes for fast draining
• Fits 1-1/2" sink openings with 1-1/4" OD x 5-3/4" long tailpiece
• View 815 / 816 extra long drain specifications

• Extra long 2-9/16" threading for thick counters
• Perfect for thick wall vessels and porcelain sinks
• Strong, 2-piece, long-lasting 17 gauge construction
• Includes one rubber washer, one friction washer, and one lock nut to ensure a secure fit
• NO overflow holes
• All exposed brass is fully polished in designer finishes (including tailpiece)
• Classic grid strainer top with 19 holes for fast draining
• Fits 1-1/2" sink openings
• 1-1/4" x 8" tailpiece
• View extra long grid drain specifications

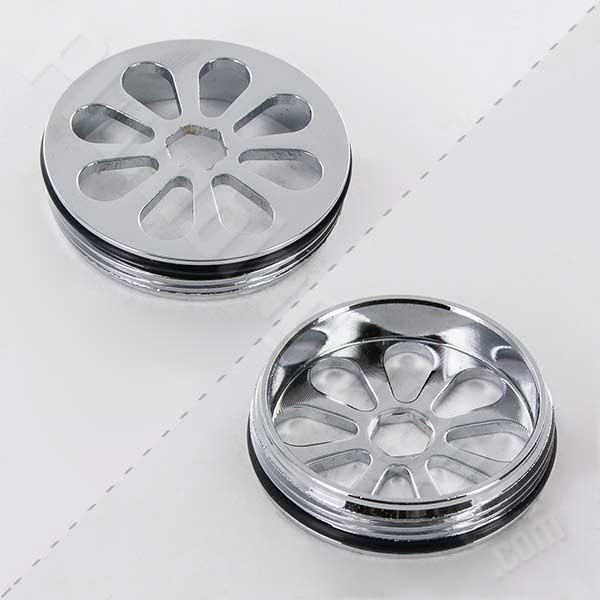

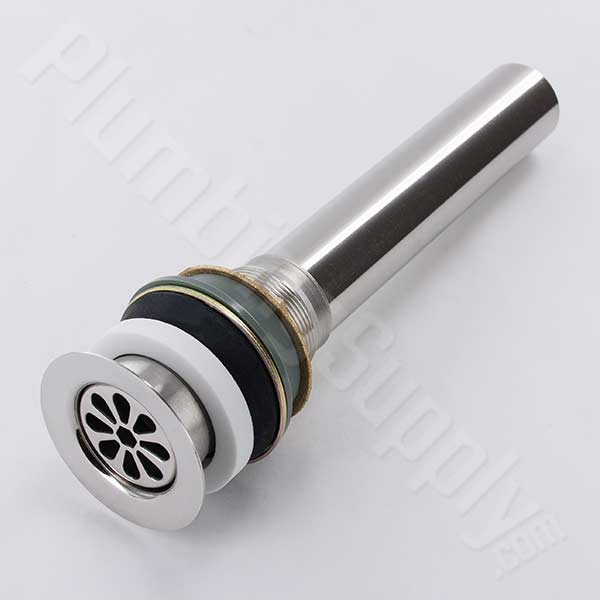

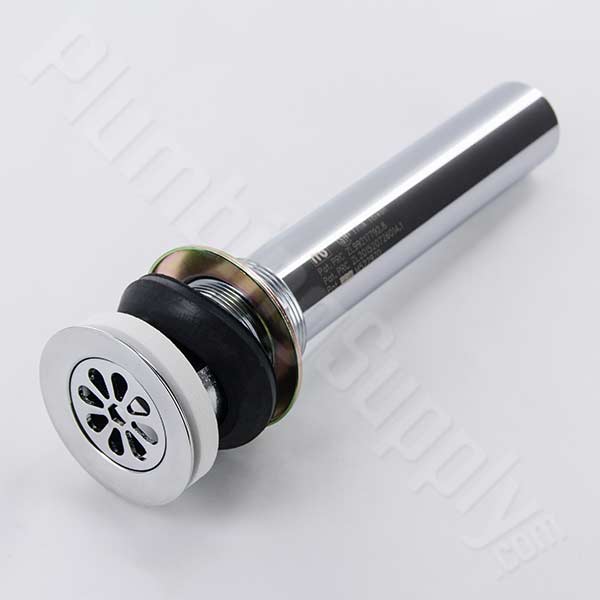

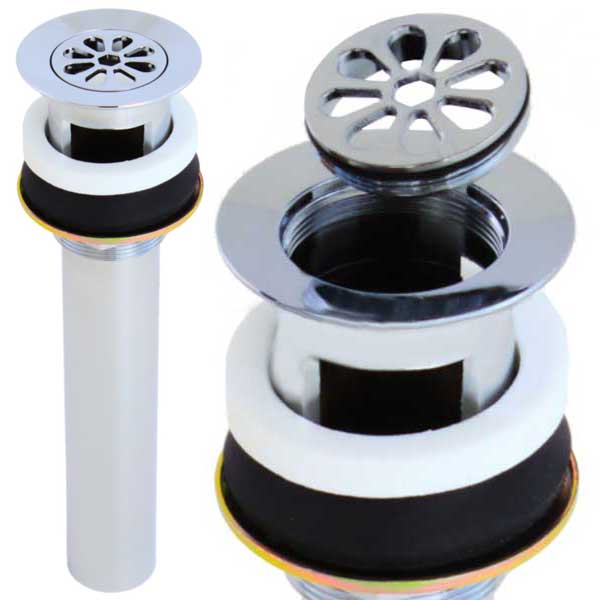

• Daisy patterned grid strainer can be removed for easy cleaning
• Center grid removable by using 1/4" hex wrench (not included)
• Concave flange design to minimize standing water in sink
• Fits 1-1/2" sink openings with 1-1/4" OD x 6" tailpiece
• Your choice of durable chrome plated 17 gauge brass or 304 type stainless steel construction
• Includes spacer, rubber washer and lock nut to ensure a secure fit
• Available with or without overflow holes

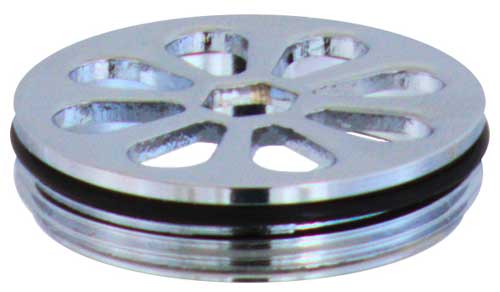

• Grid drain insert replacement available separately

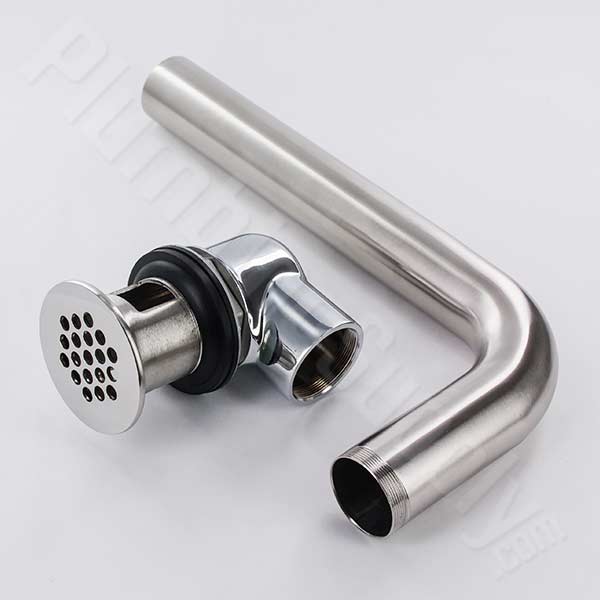

• Offset style designed to allow for wheelchair access under the sink
• Fits standard lavatory 1-1/2" sink openings - up to 2-1/2" thick
• Strong, long-lasting chrome plated brass drain body

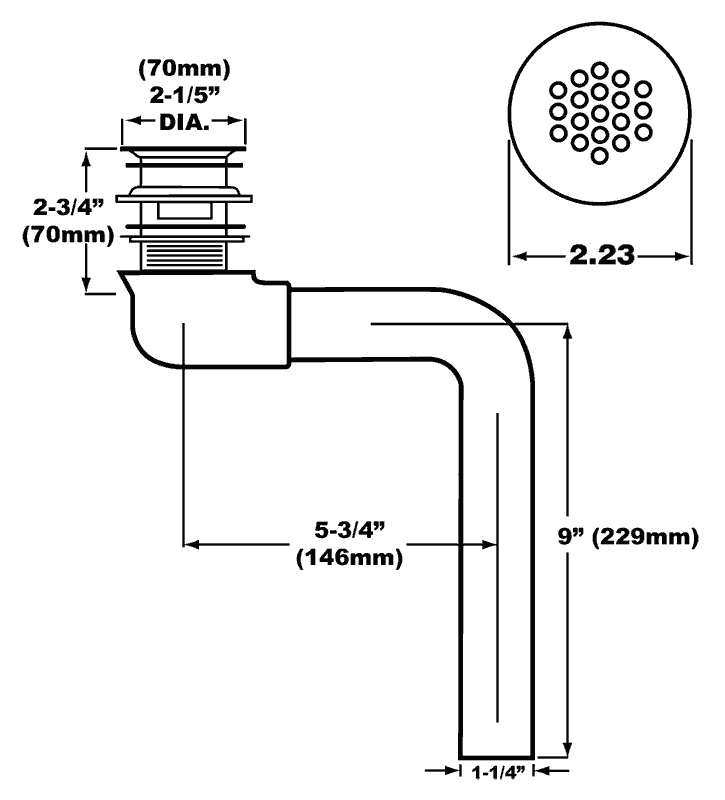

• 1-1/4" OD x 9" offset 5-3/4" brass 17 gauge tailpiece
• Includes rubber washers and lock nut to ensure a secure fit
• Overflow holes for use with overflow sinks
• View 1177-TP drain specifications

• Fits standard grid drain threads 1-1/4" O.D. x 27 threads per inch
• Extends drain shank threads 1-1/4" in length
• Perfect for thick sinks and countertops, or other custom installations
• Works with pop-up, pull-out plug, or lift & turn lavatory sink drains that have a removable tailpiece
• Chrome finish, but normally hidden by washers and mounting nut

How it works:

• Tailpiece is removed from grid strainer drain body
• Extension internally threads into drain body
• Tailpiece threads into extension
