Direct Bathtub Drains and Replacement Parts

Here at PlumbingSupply.com® we offer the hard to find products and parts people need but are unable to find elsewhere. Direct bathtub drains come in real handy when a building obstacle prevents the bathtub drain p-trap from being placed conventionally near the wall. The direct drain allows the p-trap to be attached directly below the tub outlet. When you need to replace your old, worn out waste and overflow assemblies, or wish to remodel your bathroom, consider these stylish, durable replacements from PlumbingSupply.com®! Available in many beautiful finishes, these assemblies not only come complete, but also have replacement trim and working parts available should you need them down the road.

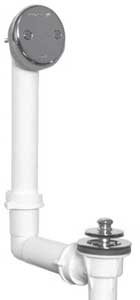

Direct Drain - Complete Push Pull Style Bathtub Waste And Overflow
Polypropylene 1-1/2" O.D. Tubular Body
Fits most tubs 14" - 16" high
This Direct Drain waste and overflow assembly features:
  • For bathtubs with drains plumbed directly below the tub outlet
  • Designed for heavy duty use - ideal for hotels, motels and rental properties
  • Durable polypropylene tubular body
  • Brass constructed overflow plate, strainer and stopper
  • Metal strainer body works great with cast iron or plastic tubs
  • Push the stopper 'down' to keep water in the tub and pull the stopper 'up' to open the drain and allow the water to flow out of the tub
  • 1 1/2" strainer body and drain tee with 11 1/2 threads per inch (coarse thread)
  • 1.865" outside thread diameter
  • Easily connects to most drains with the use of a nut and washer slip joint connection
  • Connect to ABS schedule 40 drain pipes by using an ABS Marvel Adapter or to PVC schedule 40 drain pipes by using a PVC Marvel Adapter - sold separately below
  • Parts for this bathtub waste and overflow assembly are available below
Push-Pull Waste & Overflow Assembly - Direct Drain - Model 515-PP
Image Model # Finish Price & Quantity
watco finish chrome sample 515-PP-CP Chrome $58.05 Enter a quantity and
watch finish polished brass 515-PP-PB Polished Brass $99.94 Enter a quantity and
watco finish nickel 515-PP-BN Brushed Nickel $71.75 Enter a quantity and
watco sample bone 515-PP-BO Bone $115.67 Enter a quantity and
watco sample biscuit 515-PP-BS Biscuit $115.70 Enter a quantity and
watco sample oil rubbed bronze 515-PP-BZ Oil Rubbed Bronze $76.13 Enter a quantity and
watco sample nickel polished 515-PP-NP Polished Nickel $102.72 Enter a quantity and
watco sample white 515-PP-WH White $90.31 Enter a quantity and
watco finish wrought iron 515-PP-WI Wrought Iron $108.98 Enter a quantity and
Drain Connectors
Image Size Description Price & Quantity
abs 1 and 1-2 inch marvel adapter 850abs 1 1/2" ABS Marvel Adapter with Nut & Washer $2.35 Enter a quantity and

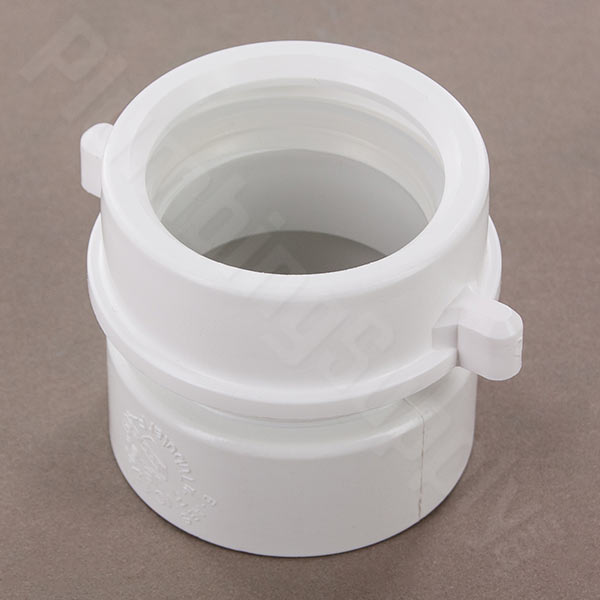

pvc marvel adapter 1 1/2" PVC Marvel Adapter with Nut & Washer $1.52 Enter a quantity and


Parts For #515 Direct Drain Waste & Overflow Assembly

Push Pull Direct Drain Waste and Overflow parts diagram
Item # Image Part # Description Price & Quantity

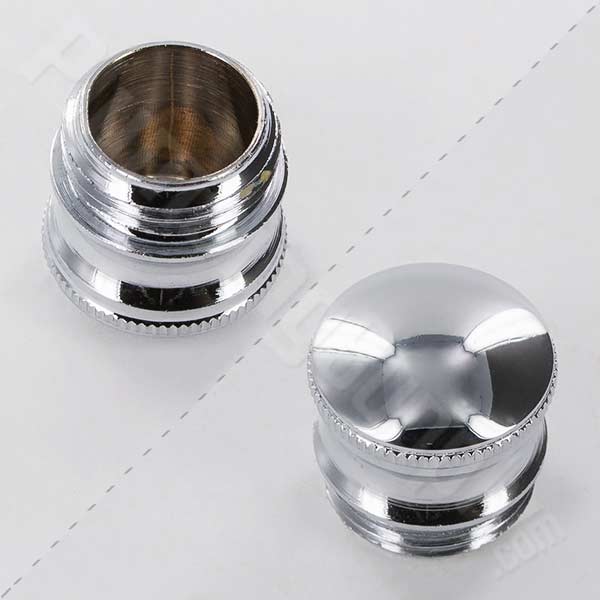

1 tub drain watco knob 01010 chrome 01010 Knob - Chrome $3.43 Enter a quantity and
watco finish polished brass Knob - Polished Brass $7.95 Enter a quantity and

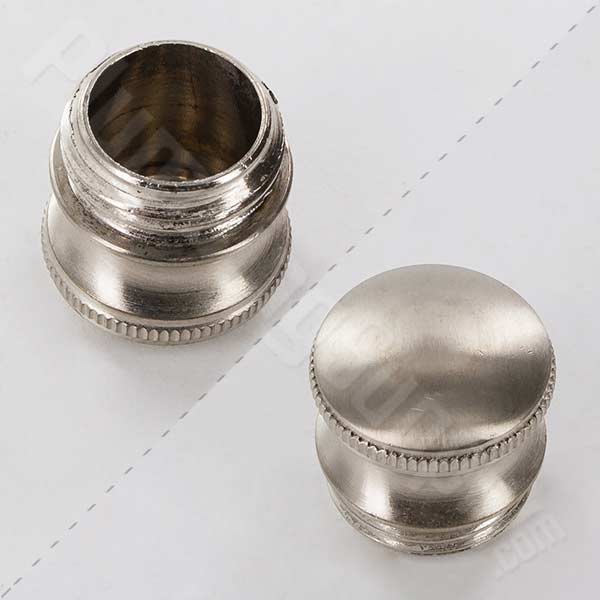

tub drain watco knob brushed nickel 01010 Knob - Brushed Nickel $4.51 Enter a quantity and
watco finish oil rubbed bronze Knob - Oil Rubbed Bronze $6.95 Enter a quantity and
2 watco tub drain push pull post with friction ring 038-11510 11584 Push-Pull Post with Friction Ring $4.46 Enter a quantity and
3 tub drain watco stopper chrome 01013 01013 Stopper - Chrome $7.46 Enter a quantity and
watco finish polished brass Stopper - Polished Brass $15.76 Enter a quantity and
watco finish brushed nickel Stopper - Brushed Nickel $14.56 Enter a quantity and
watco finish oil rubbed bronze Stopper - Oil Rubbed Bronze Discontinued
use 38610
Enter a quantity and
4 watco tub drain push pull seal 11507 11507 Replacement Seal for Stopper $2.39 Enter a quantity and
1-4 watco tub drain push pull stopper chrome 38610 38610 Complete Stopper Assembly
Chrome
$16.12 Enter a quantity and
watco tub drain push pull stopper polished brass 38610 Complete Stopper Assembly
Polished Brass
$30.95 Enter a quantity and
watco tub drain push pull stopper brushed nickel 38610 Complete Stopper Assembly
Brushed Nickel
$27.95 Enter a quantity and
watco oil rubbed bronze sample Complete Stopper Assembly
Oil Rubbed Bronze
$25.95 Enter a quantity and
5 tub drain watco pushed pull strainer body chrome 01016 01016 Strainer body - Chrome
coarse thread; 11-1/2 tpi
1-7/8" (1.865) O.D.
$17.60 Enter a quantity and
watco tub drain push pull strainer body polished brass 01016 Strainer body - Polished Brass
coarse thread; 11-1/2 tpi
1-7/8" (1.865) O.D.
$14.76 Enter a quantity and
watco tub drain push pull strainer body brushed nickel 01016 Strainer body - Brushed Nickel
coarse thread; 11-1/2 tpi
1-7/8" (1.865) O.D.
$19.95 Enter a quantity and
watco oil rubbed bronze finish Strainer body - Oil Rubbed Bronze
coarse thread; 11-1/2 tpi
1-7/8" (1.865) O.D.
$23.45 Enter a quantity and
Item # Image Part # Description Price & Quantity
6 tub drain watco drain ell gasket 10696 10696 Drain Washer - 1-1/2" $2.44 Enter a quantity and

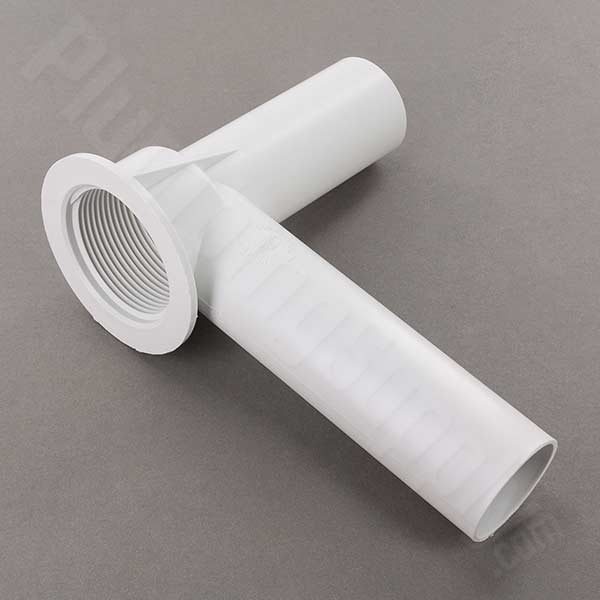

7 watco direct drain tee 10081 10081 Drain Tee - Polypropylene $11.17 Enter a quantity and
8 tubular abs slip join nut black 150 11580 Slip Joint Nut - Black $0.23 Enter a quantity and
9 tubular poly slip joint washer 150 11583 11583 Slip Joint Polywasher $0.18 Enter a quantity and

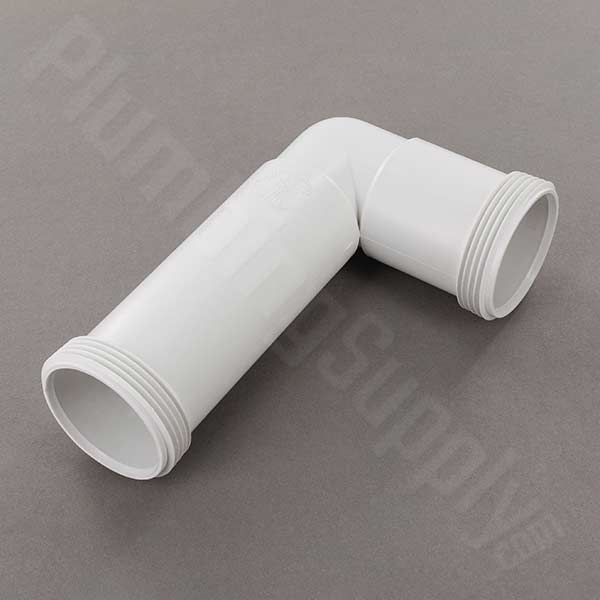

10 watco direct drain elbow 10080 10080 Elbow - Polypropylene $10.10 Enter a quantity and

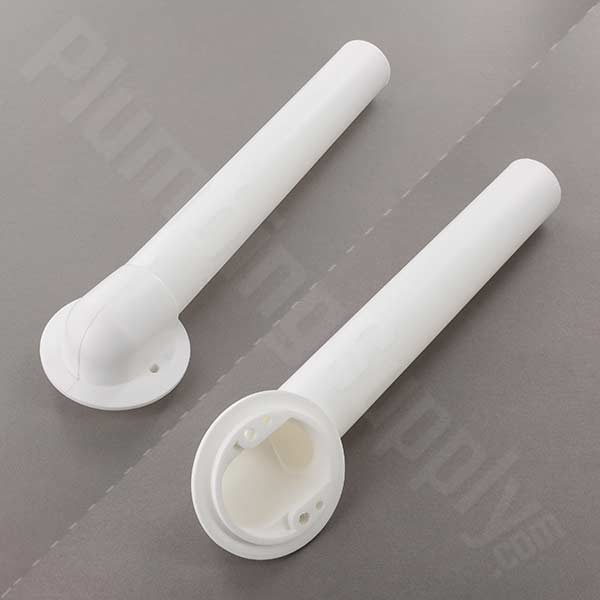

11 watco direct drain overflow ell 10082 10082 Overflow Elbow - Polypropylene $11.60 Enter a quantity and
12 tub drain watco overflow elbow gasket 10675 10675 Overflow Elbow Gasket $2.88 Enter a quantity and
13 tub drain watco retainer plate chrome 11530 11530 Retainer Plate $2.82 Enter a quantity and
14 tub drain watco retainer plate screw 11540 11540 Retainer Plate Screw
- single - 2 required
$2.51 Enter a quantity and
15 tub drain watco metal overflow plate 01003 chrome 01003 2-Hole Overflow Plate
Chrome
$6.64 Enter a quantity and
tub draom watco polished brass overflow plate 01003 2-Hole Overflow Plate
Polished Brass
$11.70 Enter a quantity and
tub drain watco metal overflow plate brushed nickel 01003 2-Hole Overflow Plate
Brushed Nickel
$11.64 Enter a quantity and
tub drain watco metal overflow plate oil rubbed bronze 01003 2-Hole Overflow Plate
Oil Rubbed Bronze
$6.47 Enter a quantity and
16 tub drain watco overflow plate screw chrome 01024 01024 Overflow Faceplate Screw
Chrome
- single - 2 required
$3.90 Enter a quantity and
tub drain watco overflow plate polished brass 01024 Overflow Faceplate Screw
Polished Brass
- single - 2 required
$3.87 Enter a quantity and
tub drain watco overflow plate screw brushed nickel 01024 Overflow Faceplate Screw
Brushed Nickel
- single - 2 required
$5.45 Enter a quantity and
tub drain watco overflow plate screw 01024 oil rubbed bronze Overflow Faceplate Screw
Oil Rubbed Bronze
- single - 2 required
$4.11 Enter a quantity and

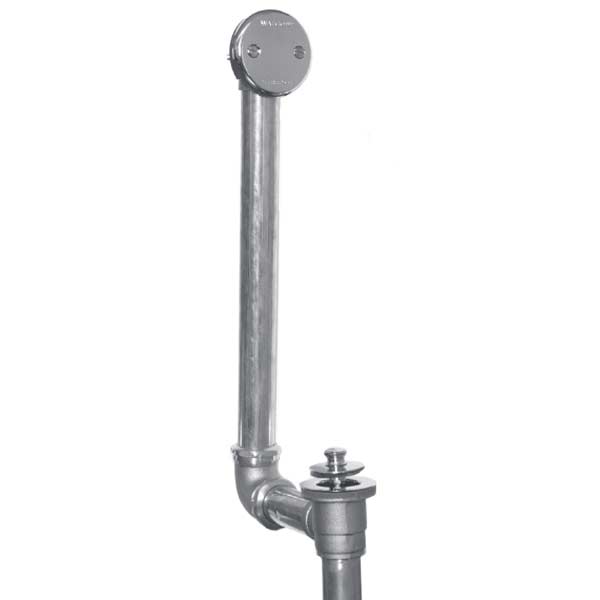

Direct Drain - Complete Push Pull Style Bathtub Waste And Overflow
17 Gauge Brass 1-1/2" O.D. Tubular Body
Fits most tubs 14" - 16" high
Watco direct drain waste and overflow
This Direct Drain waste and overflow assembly features:
  • Fits bathtubs with drains plumbed directly below the tub outlet
  • Intended for heavy duty use, such as hotels, motels and rental properties
  • Durable 17 gauge brass tubular body
  • Overflow plate, strainer flange body and stopper brass constructed with plated finish
  • Exposed trim parts are finished, tubular body is rough brass
  • Metal strainer flange body will attach to cast iron or plastic tubs
  • Push the stopper 'down' to fill the tub with water and pull the stopper 'up' to open and allow the water to flow out of the tub
  • Replaceable nitrile rubber (buna-n) stopper seal
  • 1 1/2" strainer body and drain tee with 11 1/2 threads per inch (coarse thread)
  • 1.865" outside thread diameter
  • Connect to ABS schedule 40 drain pipes by using an ABS Marvel Adapter or to PVC schedule 40 drain pipes by using a PVC Marvel Adapter - sold separately below
  • Parts for this bathtub waste and overflow assembly are available below
Brass Push-Pull Waste & Overflow Assembly - Direct Drain - Model 512-PP
Model # Image Finish Price & Quantity
512-PP-CP watco sample chrome Chrome $149.57 Enter a quantity and
512-PP-BN watco sample brushed nickel Brushed Nickel $173.32 Enter a quantity and
512-PP-BZ watco sample oil rubbed bronze Oil Rubbed Bronze $170.77 Enter a quantity and
Drain Connectors
Size Image Description Price & Quantity
1 1/2" abs 100 x 150 marvel adapter 850abs ABS Marvel Adapter with Nut & Washer $2.35 Enter a quantity and
1 1/2" pvc marvel adapter PVC Marvel Adapter with Nut & Washer $1.52 Enter a quantity and

Parts For #512 Brass Direct Drain Waste & Overflow Assembly

Push Pull Brass Direct Drain Waste and Overflow parts diagram
Item # Image Part # Description Price & Quantity
1 tub drain watco knob chrome 01010 01010 Knob - Chrome $3.43 Enter a quantity and
tub drain watco knob brushed nickel 01010 Knob - Brushed Nickel $4.51 Enter a quantity and
watco oil rubbed bronze sample Knob - Oil Rubbed Bronze $6.95 Enter a quantity and
2 tub drain watco push pull post 038-11510 11584 Push-Pull Post with Friction Ring $4.46 Enter a quantity and
3 tub drain watco stopper chrome 01013 01013 Stopper - Chrome $7.46 Enter a quantity and
watco brushed nickel sample Stopper - Brushed Nickel $14.56 Enter a quantity and
watco oil rubbed bronze sample Stopper - Oil Rubbed Bronze Discontinued
use 38610
Enter a quantity and
4 tub drain watco push pull seal 11507 11507 Replacement Seal for Stopper $2.39 Enter a quantity and
1-4 watco tub drain push pull stopper chrome 38610 38610 Complete Stopper Assembly
Chrome
$16.12 Enter a quantity and
watco push pull stopper brushed nickel 38610 Complete Stopper Assembly
Brushed Nickel
$27.95 Enter a quantity and
watco finish oil rubbed bronze Complete Stopper Assembly
Oil Rubbed Bronze
$25.95 Enter a quantity and
5 watco tub drain push pull strainer body chrome 01016 01016 Strainer Body - Chrome
coarse thread; 11-1/2 tpi
1-7/8" (1.865) O.D.
$17.60 Enter a quantity and
tub drain watco push pull strainer body brushed nickel 01016 Strainer Body - Brushed Nickel
coarse thread; 11-1/2 tpi
1-7/8" (1.865) O.D.
$19.95 Enter a quantity and
watco oil rubbed bronze sample Strainer Body - Oil Rubbed Bronze
coarse thread; 11-1/2 tpi
1-7/8" (1.865) O.D.
$23.45 Enter a quantity and
6 watco tub drain ell gasket 10696 10696 Drain Washer - 1-1/2" $2.44 Enter a quantity and
7 image currently unavailable 44010 Direct Drain Tee with Internal Threads - Brass $36.69 Enter a quantity and
8 image currently unavailable 17GA-6 6" Tailpiece - Brass $11.10 Enter a quantity and
Item # Image Part # Description Price & Quantity
9 image currently unavailable 17GA-4.75 4-3/4" Drain Ell Tube - Brass $8.78 Enter a quantity and
10 image currently unavailable 41580 Brass Slip Joint Nut $6.43 Enter a quantity and
11 tubular poly slip joint washer 150 11583 1-1/2" Slip Joint Polywasher $0.18 Enter a quantity and
12 image currently unavailable 44011 Brass Elbow for Direct Drains $24.76 Enter a quantity and
13 image currently unavailable 17GA-1562 15-5/8" Overflow Ell Tube - Brass - 17 gauge $34.28 Enter a quantity and
14 image currently unavailable 44003 Brass Overflow Ell $23.40 Enter a quantity and
15 tub drain watco overflow washer 40675 40675 Washer for Brass Overflow Ell $3.75 Enter a quantity and
16 tub drain watco retainer plate chrome 11530 11530 Retainer Plate $2.82 Enter a quantity and
17 tub drain watco retainer plate screw 41540 41540 Brass Screw for Retainer Plate $1.89 Enter a quantity and
18 tub drain watco metal overflow plate chrome 01003 01003 2-Hole Overflow Plate
Chrome
$6.64 Enter a quantity and
watco tub drain metal overflow plate brushed nickel 01003 2-Hole Overflow Plate
Brushed Nickel
$11.64 Enter a quantity and
watco tub drain metal overflow plate oil rubbed bronze 01003 2-Hole Overflow Plate
Oil Rubbed Bronze
$6.47 Enter a quantity and
19 watco tub drain overflow plate screw chrome 01024 01024 Overflow faceplate screw
Chrome
- single - 2 required
$3.90 Enter a quantity and
watco tub drain overflow plate screw brushed nickel 01024 Overflow faceplate screw
Brushed Nickel
- single - 2 required
$5.45 Enter a quantity and
watco tub drain overflow plate screw oil rubbed bronze 01024 Overflow faceplate screw
Oil Rubbed Bronze
- single - 2 required
$4.11 Enter a quantity and

Hair Catching & Drain Cleaning Brush

Kitchen drain cleaning brush
This Brushtech cleaning brush features:
  • Easily remove hair clogs from sink and tub drains
  • Great for homes as well as hotels and gyms
  • Thin flexible brush bypasses push/pull and toe touch type stoppers
  • Choose standard 13" length for showers and sinks or extra long 25.5" length for sink overflows, tubs, and whirlpool baths
  • 13" OR 25.5" length x 0.5" brush diameter x 1" handle diameter
  • View how to use this brush
  • Proudly made in the USA USA flag button
Hair Catching & Drain Cleaning Brushes:
13" length - $5.89
25.5" length - $6.86
Order 12, 24, 48 or more of the same item for additional savings!
Pricing discounts will show up in your shopping cart.
- OR - View Cart

Related Items & Accessories

Frequently Asked Questions

Q. "What material is polypropylene?"
A. Polypropylene is a plastic material similar to polyethylene but harder and stronger. It is resistant to corrosion and chemical leaching. Polypropylene is used for many potable plumbing applications and also for food grade, reusable, containers because of its resistance to hot water and physical impact.

Q. "I notice that you offer polished brass, brushed nickel, and other designer finishes. Are they as durable as chrome?"
A. No, items with chrome finish are less likely to tarnish with proper care.

Q. "Do you offer other direct drain style bath tub drains?"
A. Yes, we offer these direct outlet tub drains as well these unique side outlet tub drains.

Q. "Will a Bath Waste & Overflow prevent water from overflowing the tub if the faucet is flowing water half to full force?"
A.The overflow drain on a tub will not prevent an overflow of the tub if the tub or tub/shower valve is flowing water faster than 2 or 3 gallons per minute. The main purpose of the overflow drain on a tub is to have a place for the water to exit as water is displaced when someone enters the tub. Most people fill up the tub and then turn off the water before entering the tub. The normal tub overflow is 1 1/2" diameter which can normally handle 2 to 3 gallons of water per minute if the piping is clean and free of any debris or hair. Many tub or tub/shower combination valves in use today were installed before water conservation laws were passed and are capable of allowing water flow rates of between 6 and 35 gallons per minute depending on the type of valve installed. As you can see, a normal, gravity fed, tub overflow will not be able to keep up if the faucet is running faster than 2 or 3 gallons per minute. To prevent a tub overflow we suggest you keep watch while your tub is filling with water.

return to top ↑

Copyright© 1995-2024 PlumbingSupply.com.
All Rights Reserved.
