Hymont Series Toilet Repair Parts
by Crane Plumbing

Sometimes you just don't want the hassle of replacing a toilet. When your porcelain is in good condition and all you need is a new flapper or flush valve or replacement gasket, we've got you covered. Get your Crane Hymont toilet in top-notch working condition again with these quality toilet repair parts.

Crane Hymont toilet

Replacement Parts for Crane Hymont Toilets
Tanks # 3544, 3546, 3549, 3742, 3746 & 31088
Models # 3153, 3813, 3814, 3820, 3854, 31002, 31054, 31055, 31056, 31079

This toilet may also be referred to as a Hymont Elite, Hymont Plus, or Hymont Jr. version

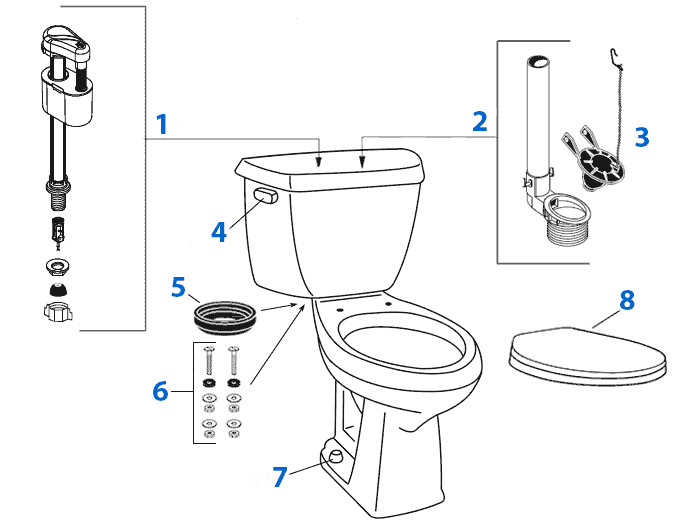

Parts diagram for Crane Hymont toilets

Item # Image Part # Description Price & Quantity
1 korky 528 quietfill fill valve 528 "Will Fit" QuietFill Valve - adjustable 7-3/4" to 13-1/2", float rod/ball NOT needed - Replaces old part #'s P030176 (for 3544 & 3549) / P030177 (for 3742 & 3746) / P030186 (for 3546 & 31088) $11.95
2 korky plus 87 flush valve with dimensions 87 "Will Fit" 2-Inch Flush Valve - 10-1/2" tall, may need to be cut down to height of original valve (altered valves are non-returnable) - Replaces old #'s P030189 (for 3742 & 3746) / P030195 (for 3546 & 31088) / P030199 (for 3544 & 3549) $14.99
3 blue crane flapper with chain p030755 P030755 Flapper & Chain - for P030189 / P030195 / P030199 valves Discontinued
coast flapper 53376 53372 "Will Fit" Flapper & Chain - for P030189 / P030195 / P030199 valves $7.65
red korky flapper 2001 Flapper & Chain - for "will fit" #87 valve $2.79
4 white crane trip lever P030361 P030361 OEM Front Mount Trip Lever - White - for 3742 Discontinued
chrome crane trip lever P030339 P030339 OEM Side Mount Trip Lever - Chrome - for 3544, 3546, 31088 Discontinued
universal brass arm fluidmaster pro64 chrome PRO64 "Will Fit" Front Mount Trip Lever - Chrome - approx. 9" long brass arm, can be bent or cut to fit (altered levers are non-returnable) - Replaces old part # P030385 (for 3746) $9.95
5 tank to bowl gasket wa75 WA75 "Will Fit" Recessed Tank to Bowl Gasket - 3-1/2" O.D. x 2 1/8" I.D. x 1-1/8" thick $4.39
6 stainless steel tank to bowl bolt set 237ss Tank Bolt Kit "Will Fit" Stainless Steel Tank-to-Bowl Mounting Set - includes 2 stainless steel bolts (5/16" x 3"), 4 rubber washers, 4 nuts, 4 flat steel washers $6.39
7 american standard toilet bolt cap covers white 034783-0200a Caps Toilet Bolt Caps (2) - White (view more color options) $8.07
8 crane white bemis round front slow close toilet seat 200TC Quality Bemis "Will Fit" Round Toilet Seat - Crane White (view more color options) $145.83
crane white elongated toilet seat 1200TC Quality Bemis "Will Fit" Elongated Toilet Seat - Crane White (view more color options) $152.68

- OR - View Cart

Related Items & Information




Frequently Asked Questions

Q. "My Crane toilet model number shows up as an American Standard/Universal Rundle toilet when I search the Internet. Are you sure these are the right parts? Most of them say 'will fit'..."
A. Crane Plumbing has a very complex history, and it's very possible that your toilet was in fact manufactured by either American Standard or Universal Rundle, depending on when it was made. When looking for parts for a Crane or Universal Rundle toilet, we always recommend trying to find a date stamp that can tell you when your toilet was manufactured. In the 1990's, Crane Plumbing purchased Universal-Rundle Corp. and continued to manufacture many of their toilet models under the URC label, but the internal components (i.e., flush valves, flappers, trip levers, etc.) of many were notably different. In 2008, Crane was acquired by American Standard - who then continued to manufacture select Crane toilet models, but chose not to continue certain lines or provide parts/support for many of the older Crane/URC models.

Because Crane has been under American Standard Brands for some time now, OEM parts are often difficult to find. Many of the parts we offer for Crane toilets are considered "will fit" - a part that is not made by the original manufacturer, but will fit and function like the original part. While we have done our best to find you these "will fit" replacement parts, please be aware that they may not be appropriate for every situation or for every toilet with this same model number. This is simply a convenience we offer to our customers to aid them in finding repair parts for their Crane toilets. We strongly encourage you to compare the pictures and dimensions provided with your existing parts prior to purchasing, in order to ensure a good match and proper function. Please note that we cannot accept returns for toilet seats or for modified (cut, bent, etc.) parts, and any returns are subject to our returns policy.

Q. "When I search for a Crane model number, more than one toilet series comes up - how do I know which one to choose?"
A. When searching for replacement parts for your toilet, it is most important to find the TANK number to ensure the parts are a good match. Crane tended to take a "mix & match" approach to their toilet models, and so you will often see the same tank used on a variety of bowl styles. We include pictures of various toilet styles on our site so that those who cannot find or read the tank number in their toilet can still find parts.

If you already know your tank number, feel free to choose whichever series you feel looks most similar to your toilet and use the parts specified for that TANK number. Because of Crane's unique "mix & match" system, as long as your tank number matches, you should be good to go even if the bowl doesn't look exactly the same. As always, though, we encourage you to compare any type of "will fit" toilet part with your existing parts prior to purchasing to ensure you're getting the correct item.
