Caravelle Toilet Repair Parts

by Caroma

Clean lines and exceptional quality are the hallmarks of the Caravelle toilet series by Caroma. Don't sacrifice the look of your bathroom over a leaky fill valve or broken flush button. PlumbingSupply.com® has everything you need to repair your stylish Caravelle toilet.

Replacement Parts for Caroma Caravelle Toilets

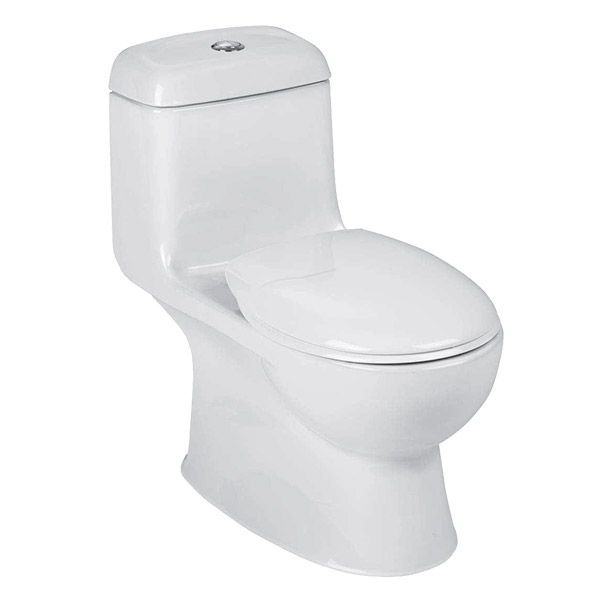

1st Generation One-Piece Models - #989646 & 989668 (2008 and older)

Parts diagram for Caravelle one-piece toilets - 2008 and older models
Item # Image Part # Description Price & Quantity
1 fluidmaster toilet fill valve 400h-002 "Will Fit" PerforMAX
400H-002
Fill Valve (adjustable height 9" - 14") - Replaces WD3121US $17.05 Enter a quantity and
2 caroma toilet flush valve 687152 687152 Flush Valve - includes #4 flush button kit $88.76 Enter a quantity and
3 caroma toilet flush valve washer 750017 750017 Flush Valve Seal $9.97 Enter a quantity and
4 caroma toilet flush valve gasket 687205 687205 Flush Valve Gasket $9.89 Enter a quantity and
5 toilet push button caroma 687052 687052 Flush Button ONLY - Chrome Discontinued
toilet push button rods caroma 687053 687053 Flush Button Rods $10.34 Enter a quantity and
6 caroma toilet repair kit 687256 687256 Plug/Washer/Nut Pack - Sold Individually $5.03 Enter a quantity and
7 image unavailable 326707 Round Front Toilet Seat (6" bolt spread) Discontinued

Need help determining which Caravelle one-piece model you have? Caravelle toilets that use the WD04900P flush valve are newer models and will lift off easily, allowing you to see the yellow and blue buttons at the top of your existing flush valve. Caravelle toilets made in or before 2008 require you to remove the buttons & bracket to remove the tank lid to access the flush valve.

Replacement Parts for Caroma Caravelle Toilets

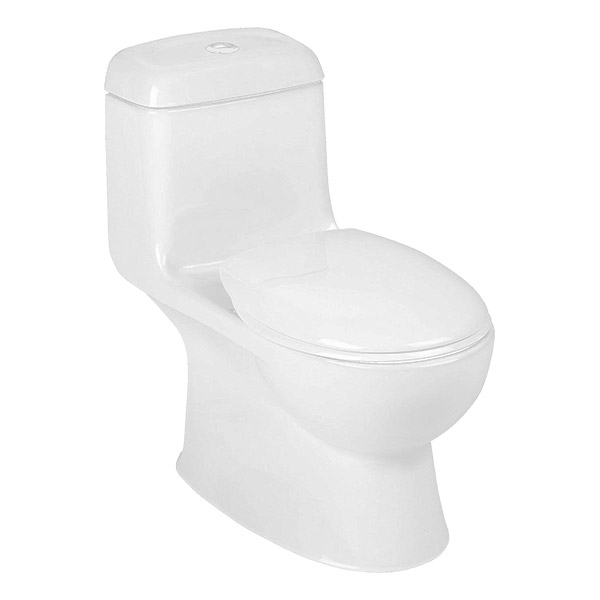

2nd Generation One-Piece Models - #989646 & 989668 (newer than 2008)

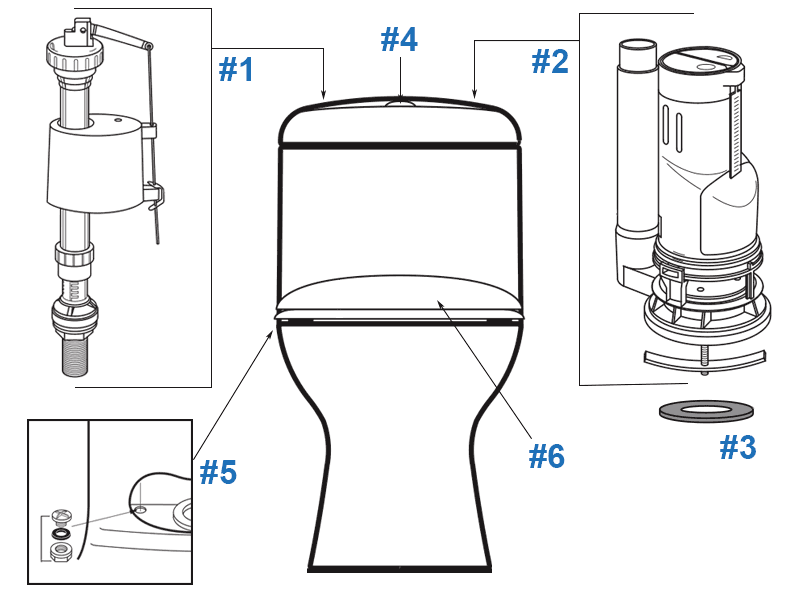

Parts diagram for Caravelle one-piece toilets - newer than 2008
Item # Image Part # Description Price & Quantity
1 fluidmaster toilet fill valve 400h-002 "Will Fit" PerforMAX
400H-002

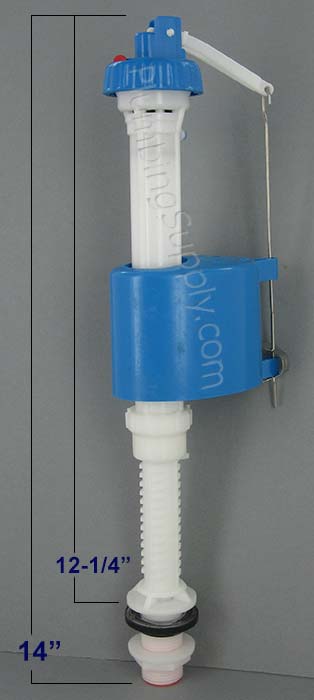

Fill Valve (adjustable height 9" - 14") - Replaces WD3121US $17.05 Enter a quantity and
2 caroma toilet flush valve wd04900p WD04900P Flush Valve $40.91 Enter a quantity and
3 caroma toilet flush valve seal 687242 687242 Flush Valve Seal $7.38 Enter a quantity and
4 toilet push button caroma wd05502 WD05502C Flush Button and Bezel Kit - Chrome $33.68 Enter a quantity and
5 caroma toilet repair kit 687256 687256 Plug/Washer/Nut Pack - Sold Individually $5.03 Enter a quantity and
6 image unavailable 326707 Round Front Toilet Seat (6" bolt spread) Discontinued

Need help determining which Caravelle one-piece model you have? Caravelle toilets that use the WD04900P flush valve are newer models and will lift off easily, allowing you to see the yellow and blue buttons at the top of your existing flush valve. Caravelle toilets made in or before 2008 require you to remove the buttons & bracket to remove the tank lid to access the flush valve.

Replacement Parts for Caroma Caravelle Smart Toilets

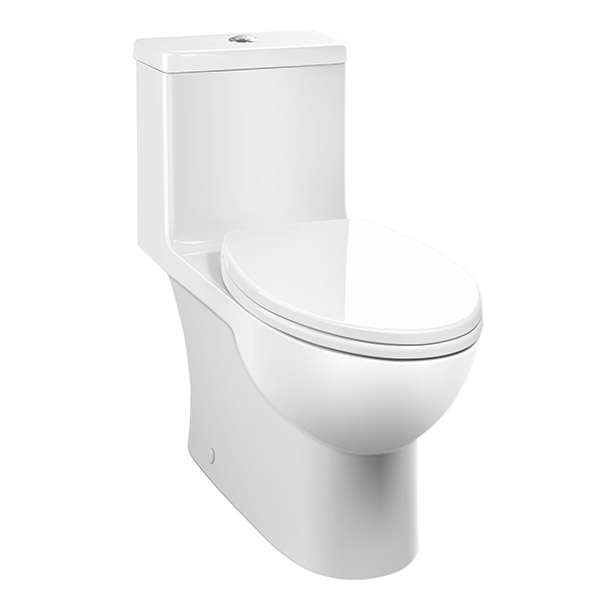

One-Piece Model - #989900

Parts diagram for Caravelle Smart one-piece toilets with top mount push button
Item # Image Part # Description Price & Quantity

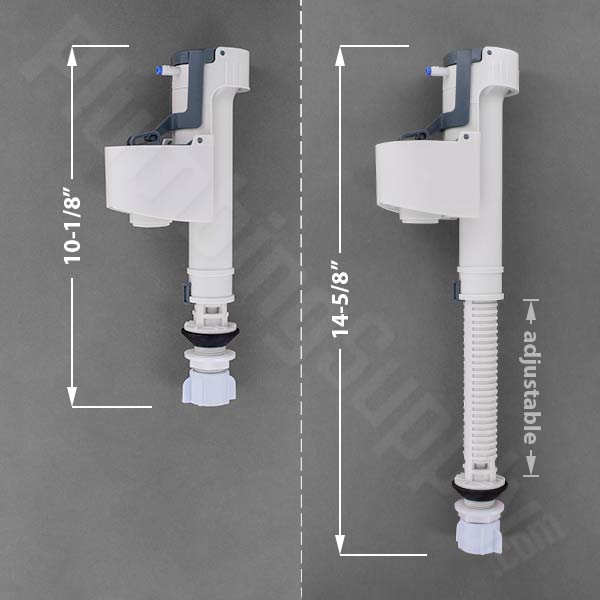

1 caroma smart fill valve b3300-ma B3300-MA Smart Fill Valve $28.83 Enter a quantity and

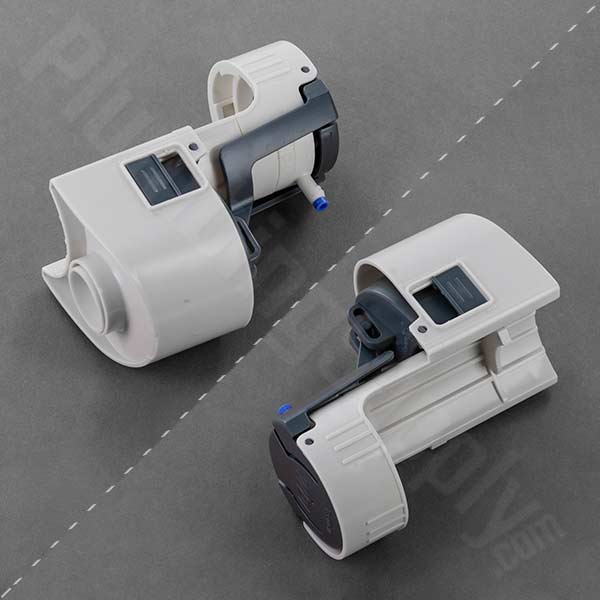

2 caroma smart fill valve repair kit b3300-ma-top B3300-MA-TOP Fill Valve Repair Kit for Smart Fill Valve $16.09 Enter a quantity and

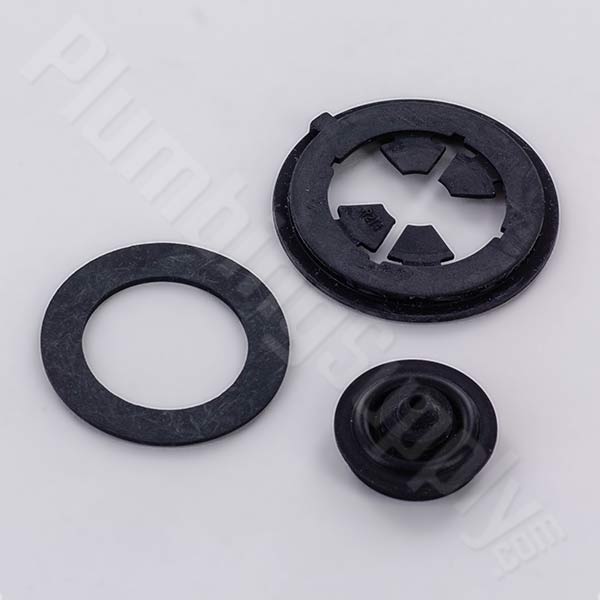

3 caroma smart fill valve gasket kit b3300-ma-kit B3300-MA-KIT Gasket Repair Kit for Smart Fill Valve $10.36 Enter a quantity and
4 image unavailable B4920U989900 Smart Dual Flush Valve - (old part #B4910T-U-989900) Discontinued Enter a quantity and
5 caroma flush valve seal 30795 30795 Flush Valve Seal $10.38 Enter a quantity and
6 caroma toilet flush valve gasket 687205 687205 Flush Valve Gasket $9.89 Enter a quantity and

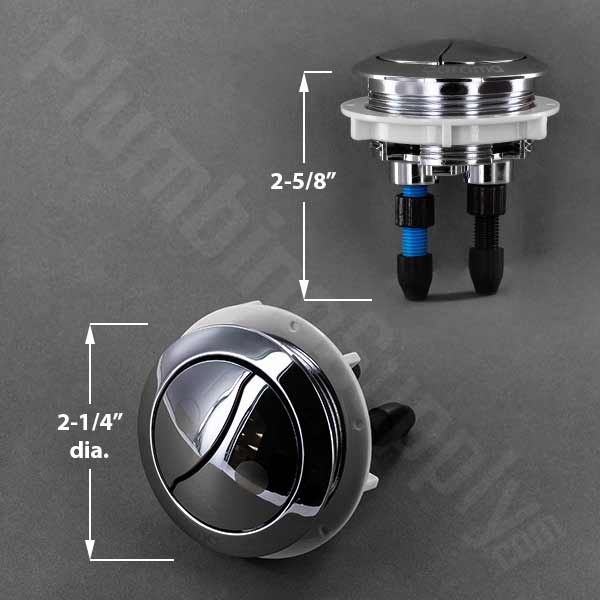

7 caroma flush button bezel b5502 chrome B5502 Flush Button & Bezel Kit - Chrome $22.17 Enter a quantity and
8 bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and

Replacement Parts for Caroma Caravelle Smart Toilets
One-Piece Model - #989100

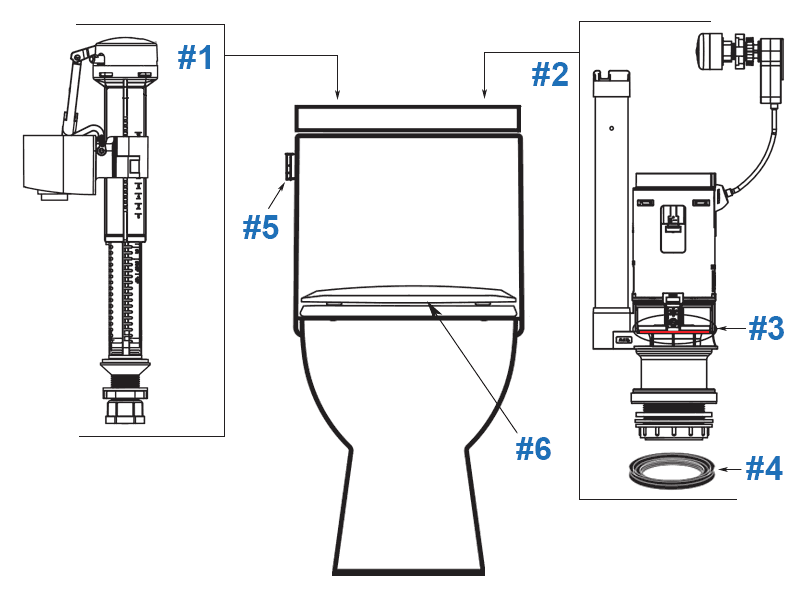

Parts diagram for Caravelle Smart one-piece toilets with lever style trip lever
Item # Image Part # Description Price & Quantity
1 caroma smart fill valve b3300-ma B3300-MA Smart Fill Valve - Replaces A1280 $28.83 Enter a quantity and
2 image unavailable A2432-U-989100 Smart Flush Valve - for LEFT Side Trip Levers $21.28 Enter a quantity and

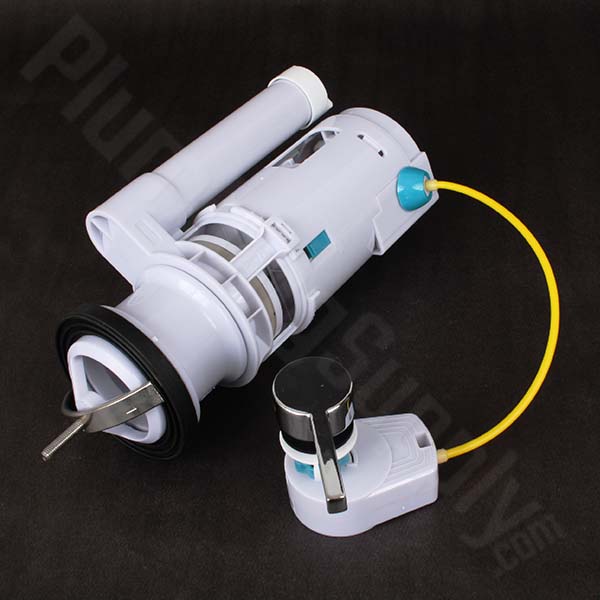

caroma smart flush valve right side flush lever a2432-u-989100-r A2432-U-989100-R Smart Flush Valve - for RIGHT Side Trip Levers $35.75 Enter a quantity and

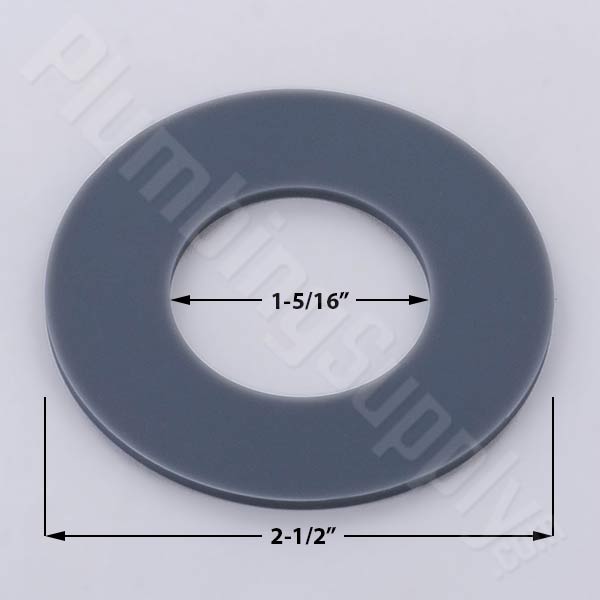

3 caroma flush valve seal 30795 30795 Flush Valve Seal $10.38 Enter a quantity and
4 caroma toilet flush valve gasket 687205 687205 Flush Valve Gasket $9.89 Enter a quantity and
5 caroma left side mount trip lever chrome b5780 B5780 LEFT Side Mount Trip Lever - Chrome $12.01 Enter a quantity and

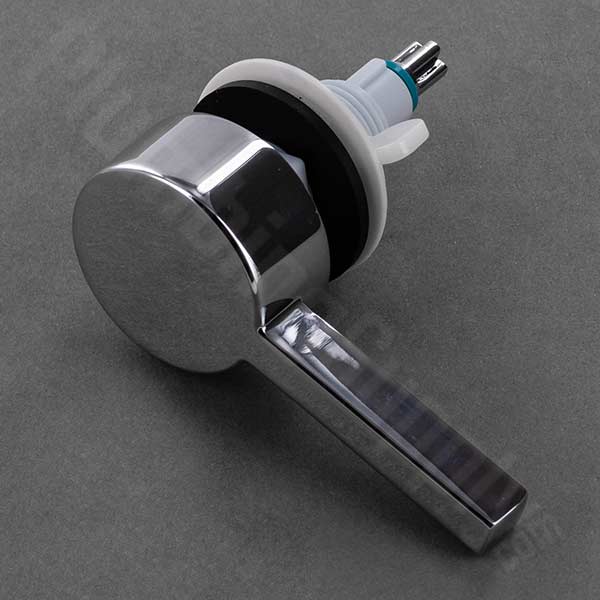

caroma right side mount trip lever b5780-r chrome B5780-R RIGHT Side Mount Trip Lever - Chrome $8.58 Enter a quantity and
6 bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and

Replacement Parts for Caroma Caravelle Toilets
Two-Piece Model - Tank #629435

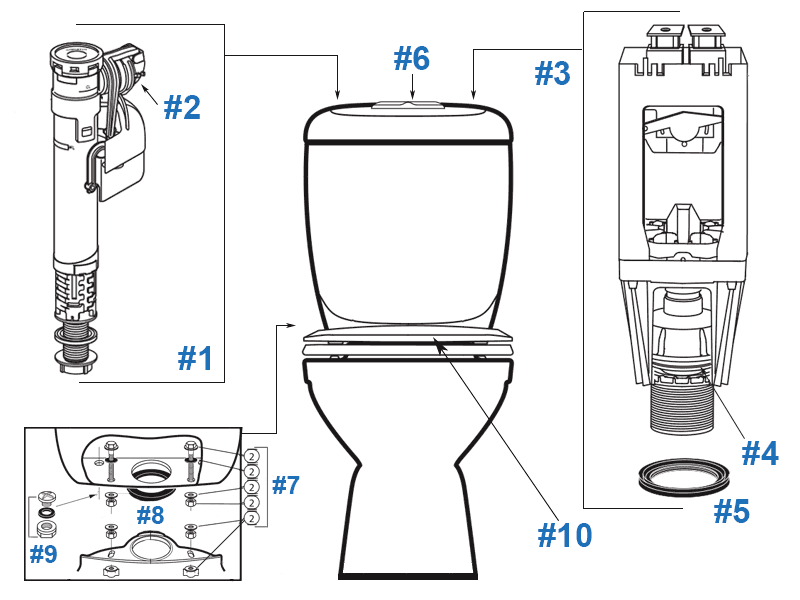

Parts diagram for Caravelle two-piece toilets
Item # Image Part # Description Price & Quantity
1 caroma toilet fill valve 687144 687144 Quietflow 2 Fill Valve (aka Inlet Valve) Discontinued
Use 687878
replacement below
caroma toilet fill valve 687878 687878 Quietflow 2 Inlet Valve $31.42 Enter a quantity and
2 caroma toilet repair kit 687040 687040 Fill Valve Repair Kit $19.66 Enter a quantity and
3 image unavailable 415043 Hi-Flow Flush Valve Discontinued
use 750283
caroma toilet flush valve 750289 750283 Hi-Flow M5 Series Flush Valve Discontinued
use 750284
caroma toilet flush valve 750289 750284 Hi-Flow M5 Series Flush Valve $45.10 Enter a quantity and
4 caroma toilet flush valve washer 750017 750017 Flush Valve Seal - for new M5 Series valves $9.97 Enter a quantity and
caroma plastic cistern outlet valve seal caroma 405006 405006 Flush Valve Seal - for old Hi-Flow valves $10.37 Enter a quantity and
5 caroma toilet flush valve gasket 687205 687205 Flush Valve Gasket $9.89 Enter a quantity and
6 toilet push button caroma b5171 white B5171-0 Flush Button and Bezel Kit - White - Replaces 405167W $17.94 Enter a quantity and
image unavailable B5171-C Flush Button and Bezel Kit - Chrome - Replaces 405167C $17.99 Enter a quantity and

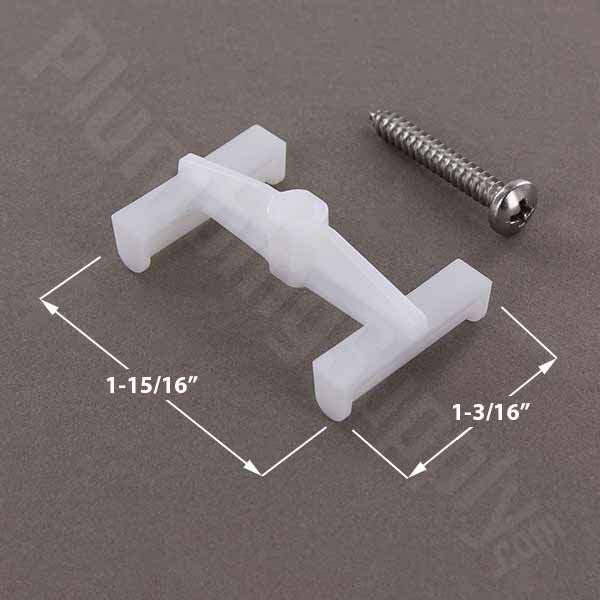

caroma toilet bezel clamp 412122 412122 Bezel Clamp - for old 405167 button & bezel kit ONLY $13.86 Enter a quantity and
7 caroma toilet tank to bowl bolt set 687240 687240 Tank to Bowl Bolt Mounting Kit $12.34 Enter a quantity and
8 caroma toilet tank to bowl foam seal 687214 687214 Tank to Bowl Foam Seal $12.29 Enter a quantity and
9 caroma toilet repair kit 687256 687256 Plug/Washer/Nut Pack - Sold Individually $5.03 Enter a quantity and
10 bemis affinity premium round toilet seat 200e4 white 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
bemis affinity premium elongated toilet seat 1200e4 white 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
If replacing an older square-style flush valve with one of the new M5 series valves, you may also need to order a new flush button kit to accommodate the height difference between these valves.

Replacement Parts for Caroma Caravelle Toilets
Two-Piece Model - Tank #920101W

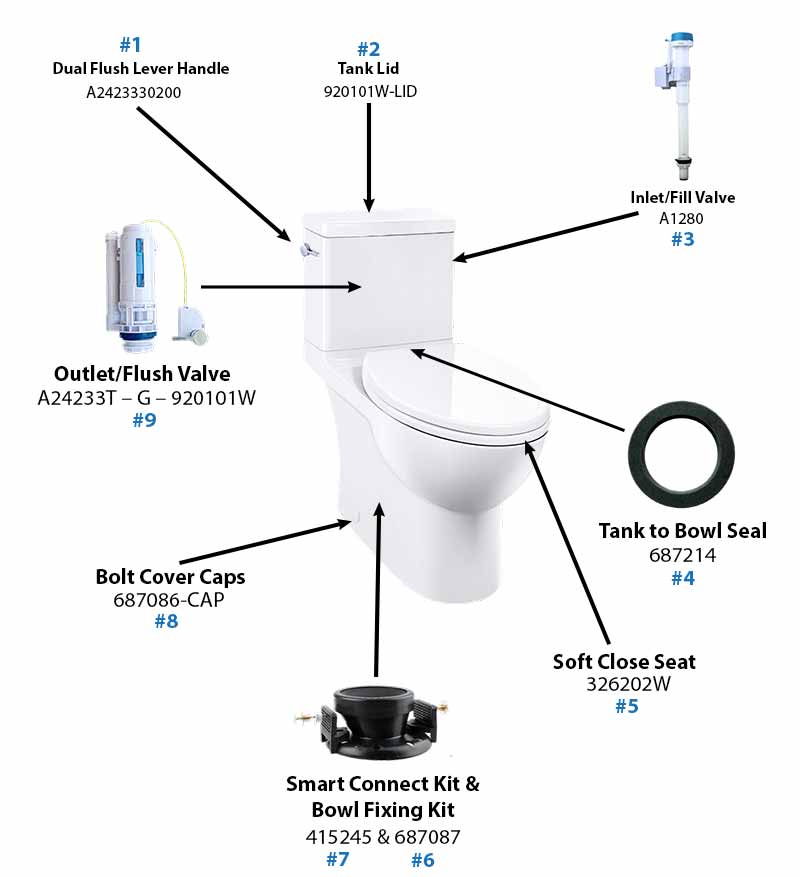

Parts diagram for Caravelle two-piece toilets
Item # Image Part # Description Price & Quantity
1 image unavailable A2423330200 Dual Flush Lever Handle Discontinued
2 image unavailable 920101W-LID Toilet Tank Lid Discontinued
3 caroma smart fill valve b3300-ma B3300-MA Inlet/Smart Fill Valve - Replaces A1280 $28.83 Enter a quantity and
caroma smart fill valve repair kit b3300-ma-top B3300-MA-TOP Fill Valve Repair Kit for Smart Fill Valve $16.09 Enter a quantity and
caroma smart fill valve gasket kit b3300-ma-kit B3300-MA-KIT Gasket Repair Kit for Smart Fill Valve $10.36 Enter a quantity and
4 image unavailable 687214 Tank to Bowl Seal $12.29 Enter a quantity and
5 image unavailable 326202W Soft Close Seat Discontinued

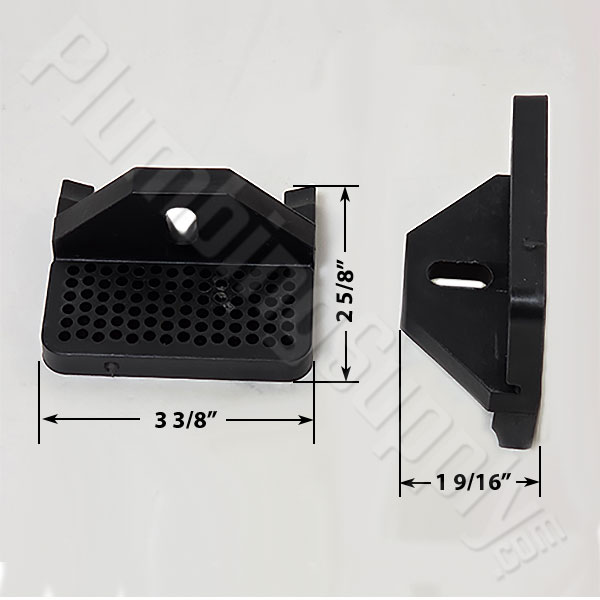

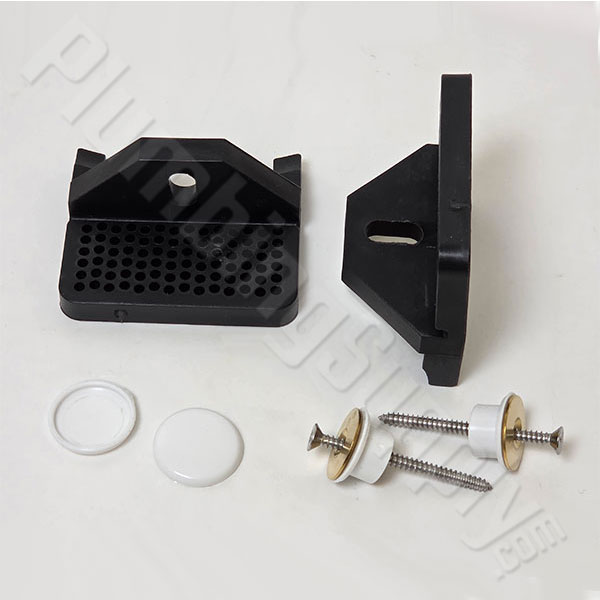

6 image unavailable 687087 Smart Connect Fixing Kit $15.10 Enter a quantity and
7 image unavailable 415245 Bowl Fixing Kit $16.92 Enter a quantity and
8 image unavailable 687086-CAP Bolt Cover Caps Discontinued
9 image unavailable A24233T Outlet/Flush Valve Discontinued
If replacing an older square-style flush valve with one of the new M5 series valves, you may also need to order a new flush button kit to accommodate the height difference between these valves.

Related Items & Information

Frequently Asked Questions

Q. "Do you carry toilet seats for the one-piece Caravelle toilet?"
A. Older Caravelle one-piece toilets (like the 989646 and 989668 models we offer parts for) have a 6" bolt spread, as opposed to the more commonly used 5-1/2" bolt spread. Currently our premium toilet seats only come in a 5-1/2" bolt spread. However, we are continually updating our product offerings and may carry them in future.

Q. "How are Caroma washdown toilets different from other toilets?"
A. According to the manufacturer, "North American toilets most commonly utilize siphon jet technology. Most of the water in the tank is used to create a vacuum or siphon effect in the trapway of the toilet bowl, which then pulls the waste out after the water. In the past, several North American toilets have been subject to clogging due to the lower volumes of water used in ultra low flow toilets. The trapways of the bowls had to be reduced to allow the vacuum to be created.

Washdown toilets do not use this flushing mechanism. When flushed, the water is released very quickly from the tank and into the bowl through an open rim bowl design. The water very effectively and efficiently pushes the waste out of the bowl, which is then followed by the water. The flush is fast and allows for superior movement down the sewage drains, as the water is following the waste. Because washdown toilets do not rely on creating a siphon effect in the trapway, the size of the trapway does not have to be reduced. Caroma toilets feature a massive 4 inch trapway!"

Q. "I just purchased a replacement M5 Series Flush Valve but the two push buttons on my tank lid will not reach the two tabs on the flush valve to activate the toilet to flush. What do I do?"

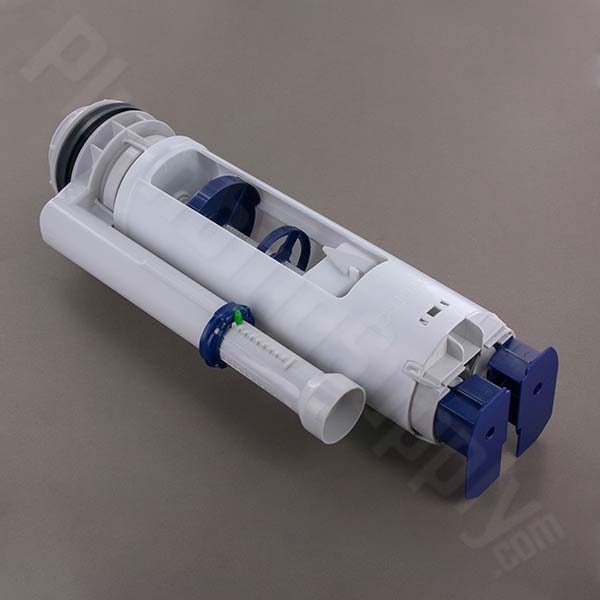

A. The blue tabs on the M5 series flush valves can be adjusted up or down. In order to raise the blue tabs, use a phillps head screwdriver and place it into the round holes found at the top of the blue tabs. Turning the adjustment screw counterclockwise will raise the tabs and turning the screw clockwise will lower the tabs. Be sure not to adjust the tabs too high because you may find when you put the tank lid on there will be water leaking from the tank into the bowl. This would be due to the outlet valve being slightly activated by the buttons pushing down onto the blue tabs. You would like about 1/8" of play before the buttons activate the flush.

image of push buttons on tank lid and adjustment screw location under blue tabs of flush valve

Q. "What is the difference between the Caroma 270 and 305 bowls? Does this matter when I'm looking for repair parts?"
A. The main difference between these two bowl styles is the size of the rough-in - either 10"-12" adjustable for the 270 bowl or 12" for the 305 bowl. This offers people options for toilet installation, and is not usually pertinent to typical repairs like changing the flush valve seal or installing a new push button mechanism. If you're looking for a new toilet seat, you will need to know whether your bowl is round or elongated, but both the 270 and 305 models come in round or elongated so it is important to measure to make sure you're getting the right size. To find common repair parts, such as fill valves, flush valves, gaskets, etc. refer to the model number of your tank to help you find the right parts.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
