Compression Style Shut-off Valves
Available in a variety of beautiful decorative finishes
These decorative, special finish shut-off valves give the "attention to detail" that you are looking for in completing your bathroom remodel or new bath construction. Offered in straight and angle styles, along with many beautiful finishes, these shut off valves will provide that finishing touch on your bathroom décor. PlumbingSupply.com® is your source for the best selection of plumbing products and supplies on the Internet!
Angle Pattern Compression Supply Valves
Supply Valves with Classic Oval Handles
| 1/2" IPS x 3/8" O.D. Compression |
|
| 3/8" IPS x 3/8" O.D. Compression |
|
5/8" O.D. Comp x 3/8" O.D. Compression
5/8" O.D. compression fits 1/2" nominal copper pipe |
|
Adjustable Angle Pattern Compression Supply Valves
5/8" O.D. (1/2" Nom.) Copper Sweat x 3/8" O.D. Compression
Up to 5" adjustable extension, includes bell escutcheon
The extension tube must be 3/8" - 1/2" shorter than the 1/2" Nom. copper pipe that gets sweated into the valve. This will allow just enough room for the valve to be sweated to the copper tube. The extension tube will then slide back over and cover the copper tube, from valve to wall/floor. The bell escutcheon will cover and hide the 3/8" -1/2" space at the wall/floor end.
View valve and bell escutcheon dimensions
To install: Slide the extension tube over the copper stub out extruding from the wall or floor, pushing it all the way to the wall. Slide the bell escutcheon over the adjustable extension tube. Sweat the valve onto the copper stub out. Slide the extension tube back over the copper tube to hide the copper at the valve end and adjust the bell escutcheon against the wall or floor.
Angle Pattern Compression Valve Kit with Classic Oval Handle =
Straight Pattern Compression Supply Valves

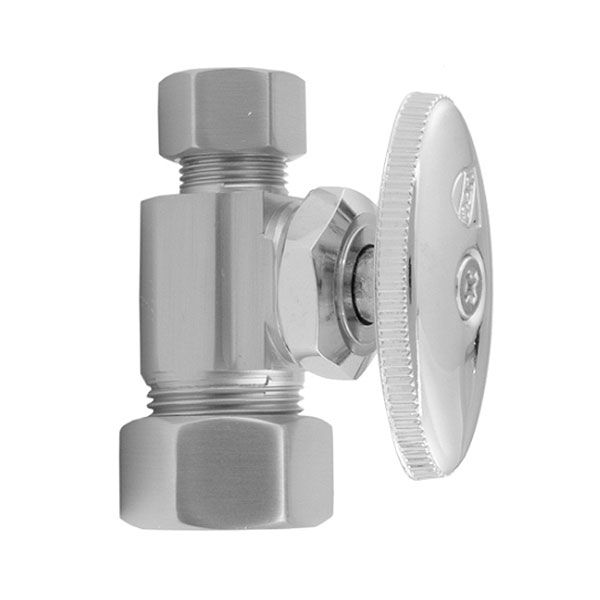

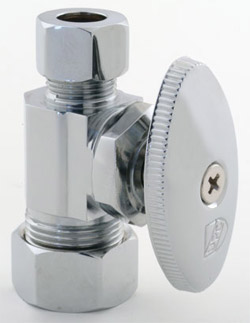

Supply Valves with Classic Oval Handles
| 1/2" IPS x 3/8" O.D. Compression |
|
| 3/8" IPS x 3/8" O.D. Compression |
|
5/8" O.D. Comp x 3/8" O.D. Compression
5/8" O.D. compression fits 1/2" nominal copper pipe |
|
Adjustable Straight Pattern Compression Supply Valves
5/8" O.D. (1/2" Nom.) Copper Sweat x 3/8" O.D. Compression
Up to 5" adjustable extension, includes bell escutcheon
The extension tube must be 3/8" - 1/2" shorter than the 1/2" Nom. copper pipe that gets sweated into the valve. This will allow just enough room for the valve to be sweated to the copper tube. The extension tube will then slide back over and cover the copper tube, from valve to wall/floor. The bell escutcheon will cover and hide the 3/8" -1/2" space at the wall/floor end.
View valve and bell escutcheon dimensions
To install: Slide the extension tube over the copper stub out extruding from the wall or floor, pushing it all the way to the wall. Slide the bell escutcheon over the adjustable extension tube. Sweat the valve onto the copper stub out. Slide the extension tube back over the copper tube to hide the copper at the valve end and adjust the bell escutcheon against the wall or floor.
Straight Pattern Compression Valve Kit with Classic Oval Handle =
Related Items & Accessories
Available Finishes
Please note: Not all products available in all finishes. Examples below are representational only and may differ depending on monitor settings.
Chrome
Antique Brass
Antique Copper
Black Nickel
Bronze Umber
Europa Bronze
Matte Black
Oil Rubbed Bronze
Pewter
Polished Brass
Polished Copper
Polished Gold
Polished Nickel
Satin Brass
Satin Chrome
Satin Gold
Satin Nickel
Tristan Brass
Vintage Bronze
