Overstock Shut-Off Valves
for NON-potable water applications ONLY
Need a new angle stop for your toilet? Maybe you're putting a sink in your shop or outdoor garden shed. Whatever your non-potable water needs, you're sure to get super low price on a quality, brand new stop valve with these overstocked items. Many of these products are priced below cost and ALL are limited to what's currently in stock - so order soon for the best selection!

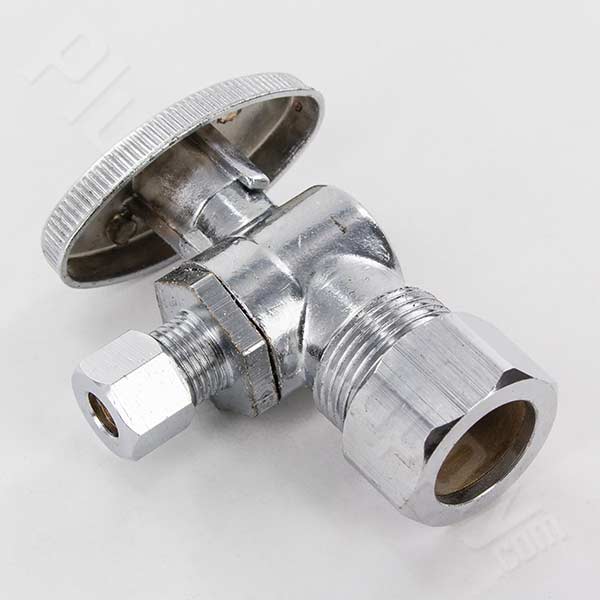

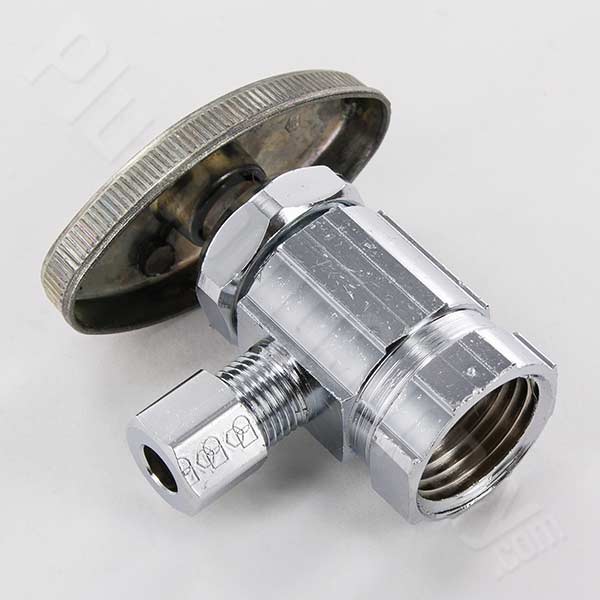

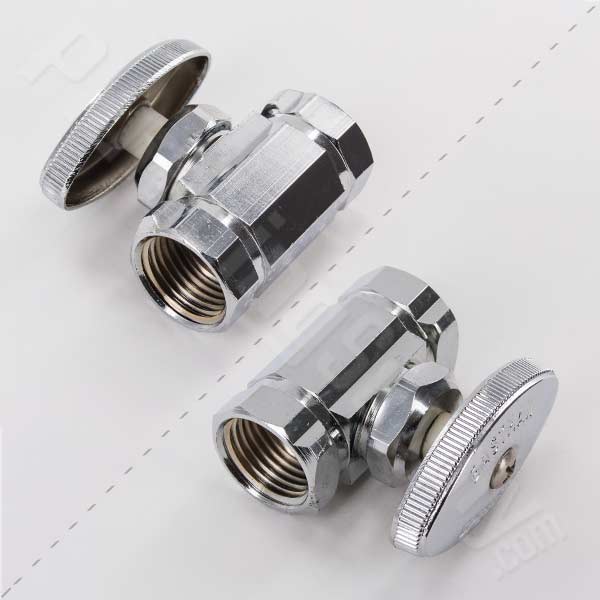

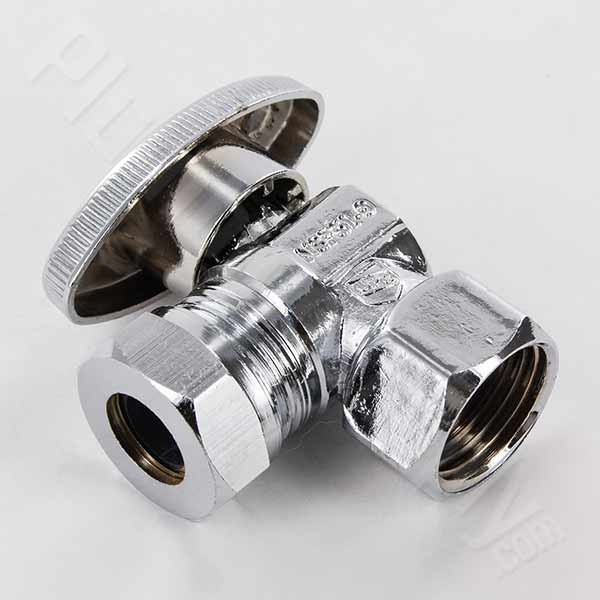

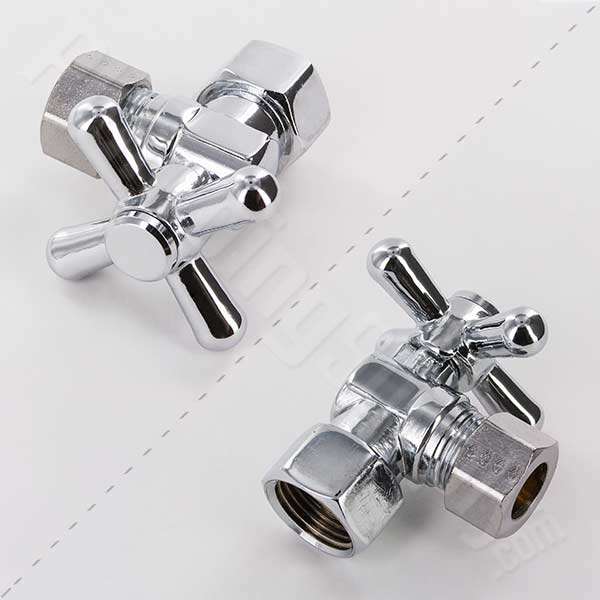

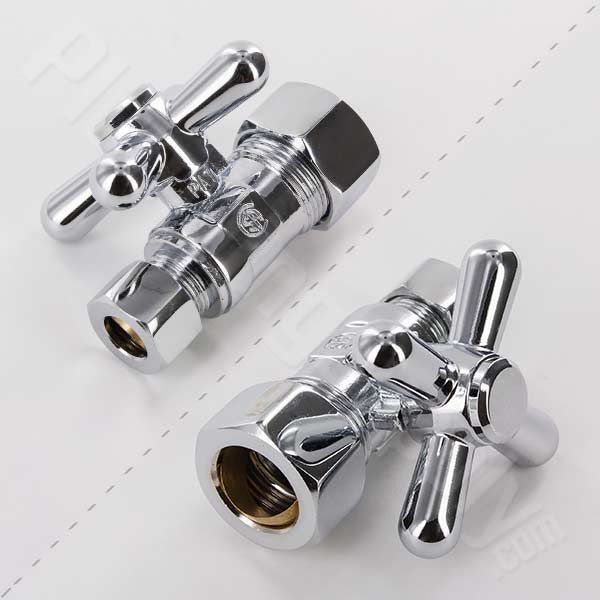

Compression Style Angle & Straight Stops

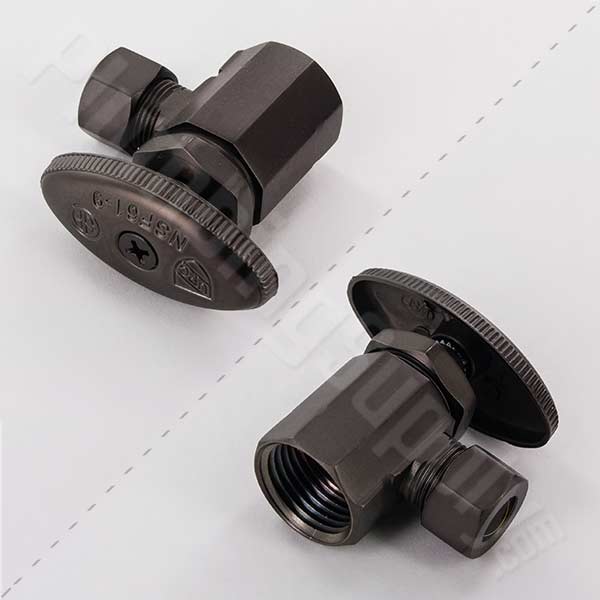

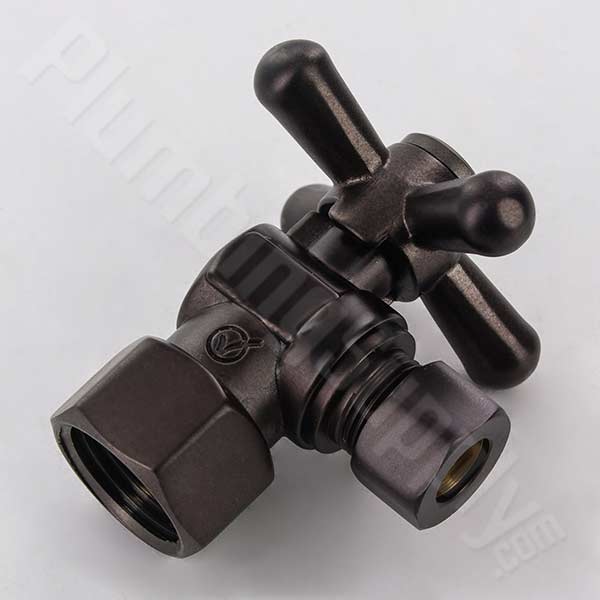

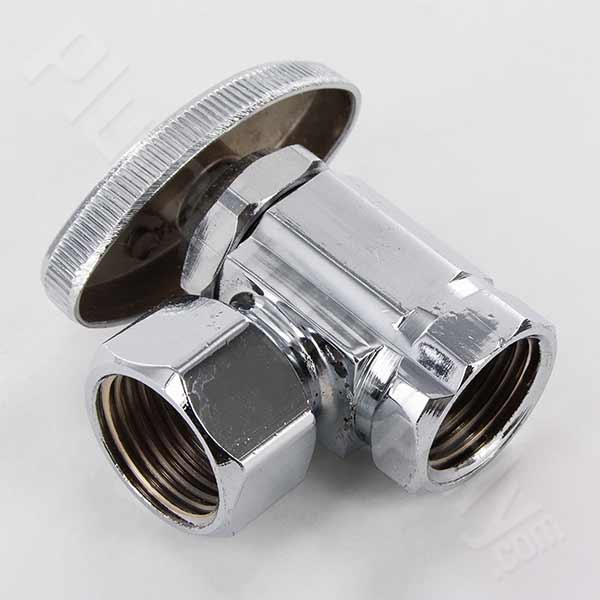

1/2" FIPS Inlet x 1/2" SJ Outlet

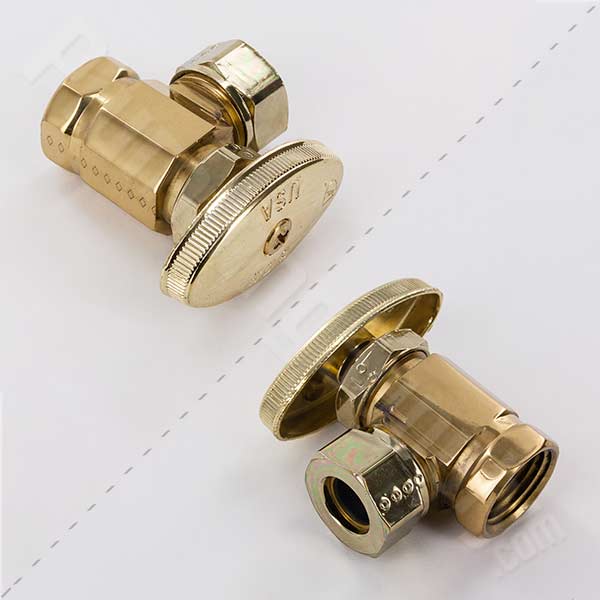

Polished Brass - Discontinued

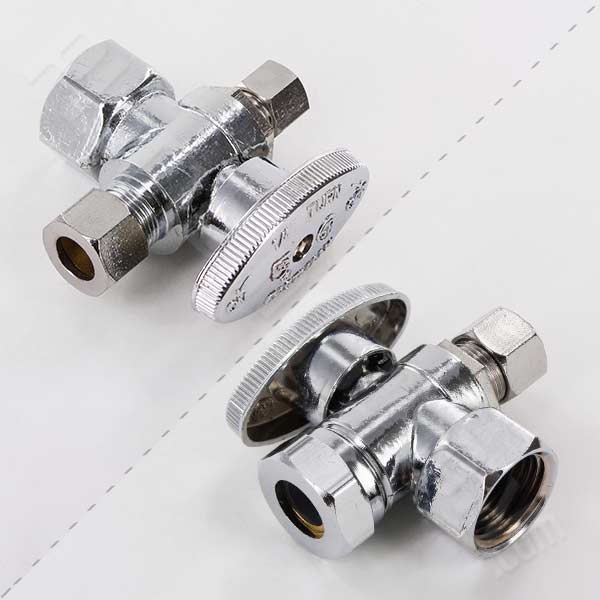

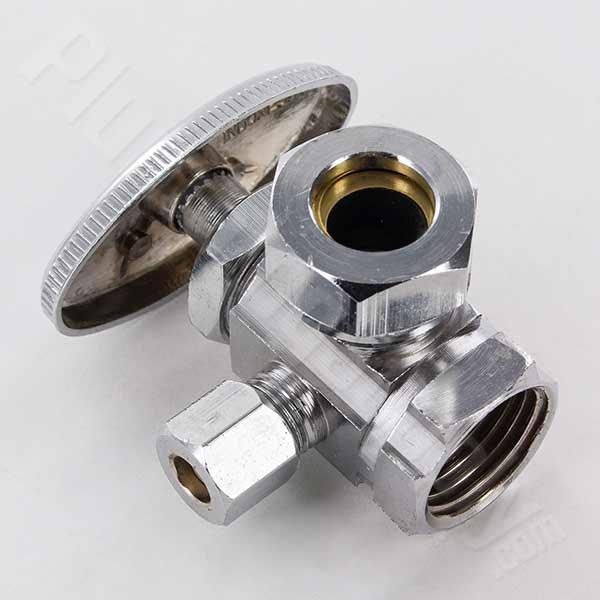

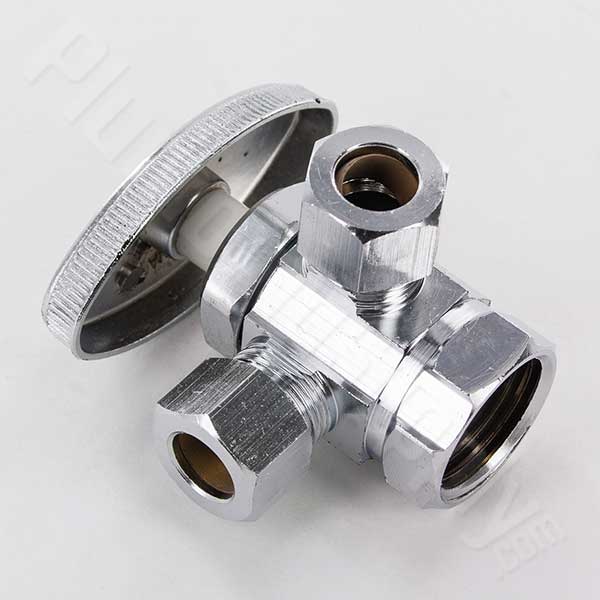

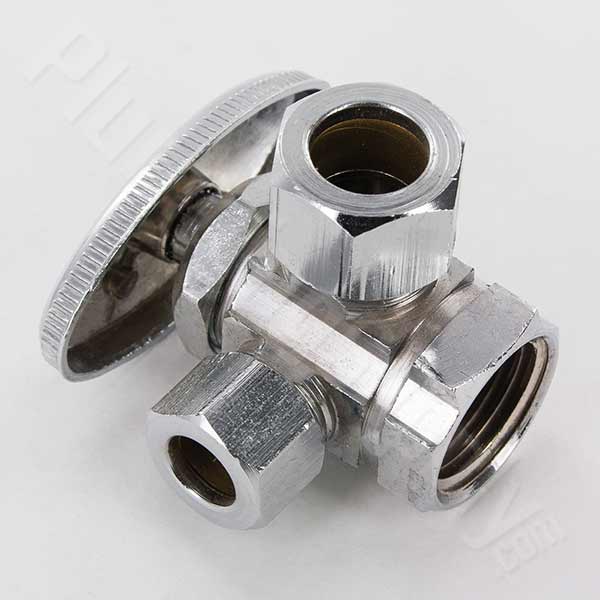

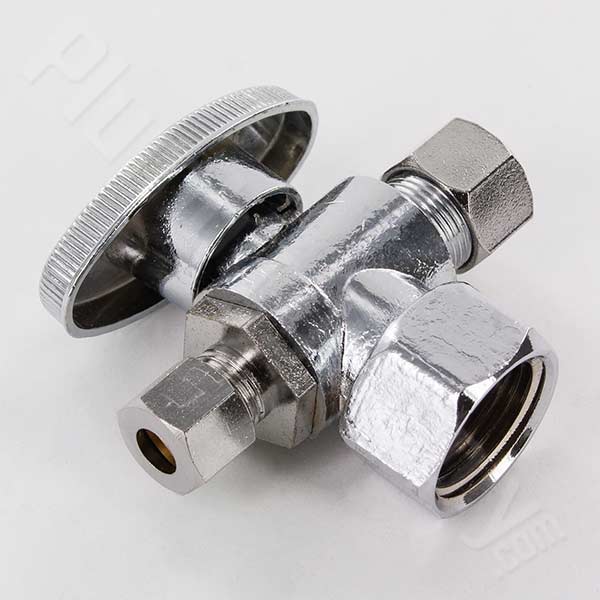

Three-Way Compression-Style Angle Stops - 1/2" FIPS Inlet
Quarter-Turn Style Angle & Straight Stops
Please note: These shut off valves are
NOT for potable water. Please
View me to shop our selection of straight and angle stops that meet low lead requirements for drinking water.
Three-Way Compression-Style Angle Stops - 1/2" FIPS Inlet
Related Items & Accessories
Frequently Asked Questions
Q. "What does compression style and 1/4 turn style (angle stop or straight stop) mean?"
A. The compression style in this case is referring to the way the water is shut off when the valve is closed. Please do not confuse this with the inlet or outlet size which can also be referred to as "compression". The handle is attached to a stem with a rubber washer on the other end. As the handle is turned to close the valve (clockwise), the rubber washer is forced (compressed) against the "seat" which is the metal opening of the waterway. 1/4 turn style valves have inside the stem a port that when the handle is turned one quarter of a turn counterclockwise, the valve is open fully and the same quarter turn in the opposite direction closes the valve completely.
Q. "How do I know if I need 1/2" Fip inlet or 5/8" o.d. inlet angle stops?"
A. Angle or straight stops have an inlet that is either 1/2" fip (female iron pipe) or 5/8" o.d. copper compression. The 1/2" fip stops are for attaching to threaded pipe nipples. The copper compression fittings are designed to attach to the smooth outside surface of copper pipe. 5/8" o.d. compression would fit a 1/2" nominal piece of copper.
Q. "What is the difference between 'nominal' dimensions and 'outside diameter (OD)' dimensions?"
A. Nominal is the term used to describe most pipe and fitting measurements in the plumbing industry. Nominal refers to the inside diameter measurement of the pipe. The actual inside pipe measurements will vary slightly due to the wall thickness of the pipe, so it is referred to as "nominal" meaning a small variance of size. The outside diameter (OD) dimensions refer to the actual outside diameter of the pipe. The outside diameter dimensions of pipe are a constant size which allow pipe fittings to be used with the same type of piping with multiple grades of wall thickness.
Q. "Some of the outlet sizes are shown as 3/8" OD or 5/8" OD compression nut w/sleeve. Is this measurement referring to the outside diameter of the compression nut?"
A. No, it is not. Copper compression fitting sizes are measured and sized according to the outside diameter (OD) of the copper tubing or copper pipe for which they will be used.
