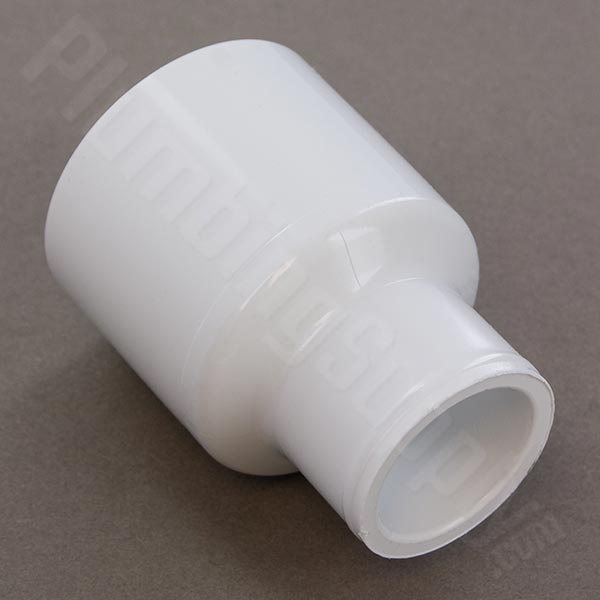

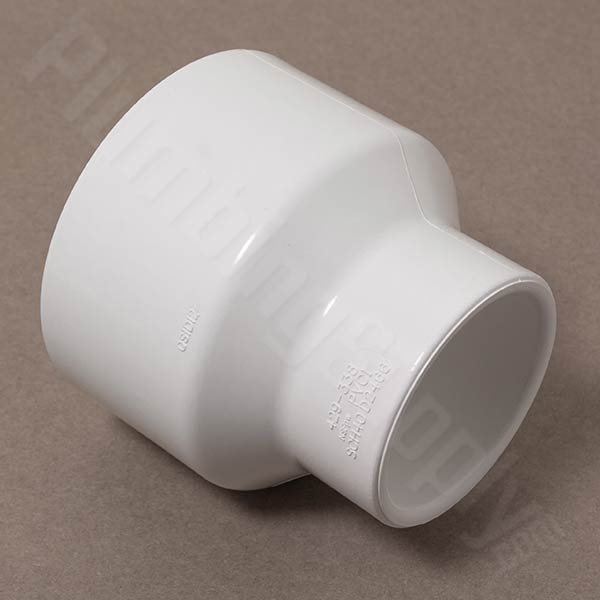

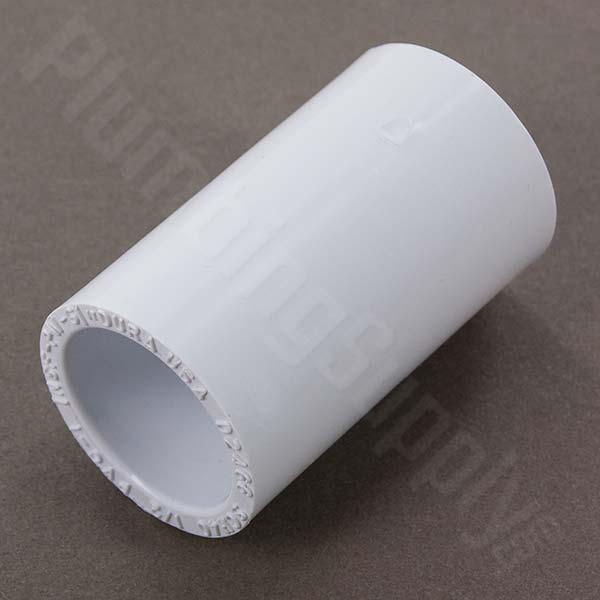

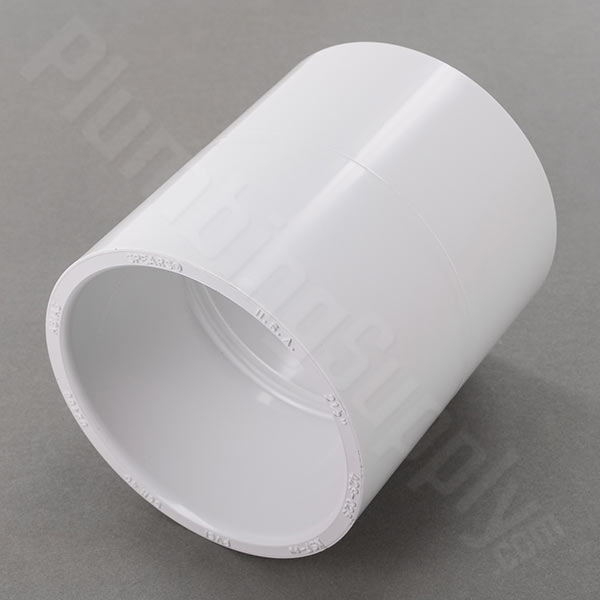

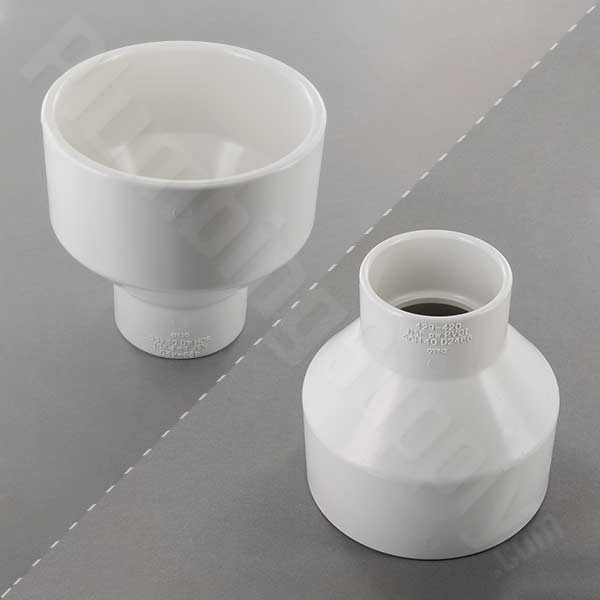

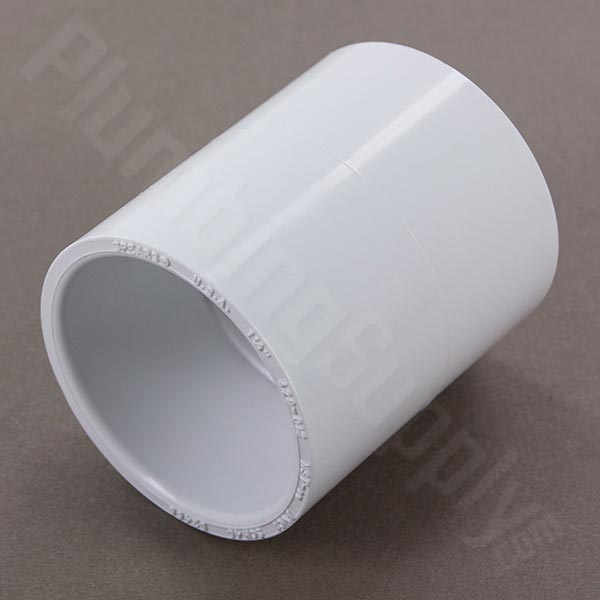

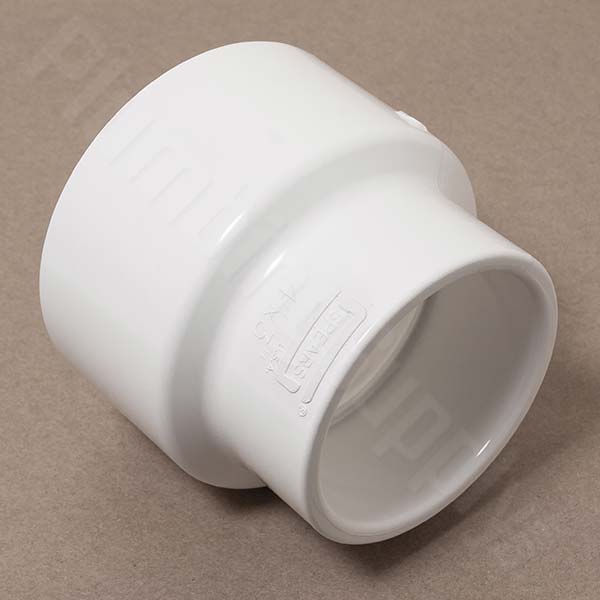

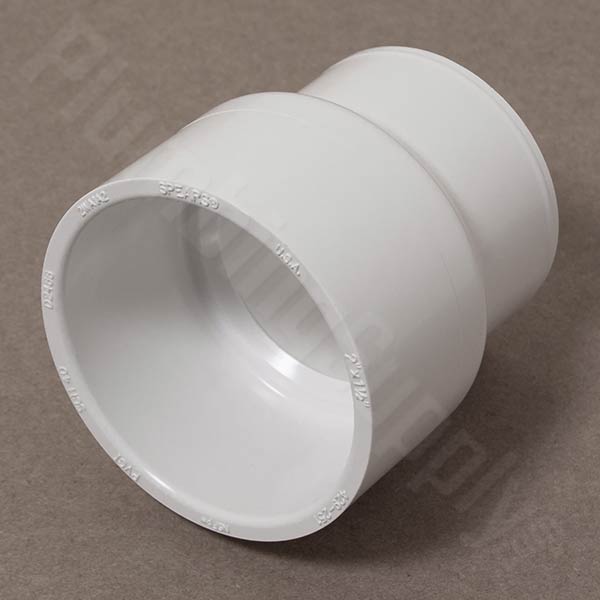

| Reducing Couplers / Couplings - S x S - #429 |
| These fit over pipe (are not bushings) |
 |
Need to seal your pipe threads? Click here for pipe dope.

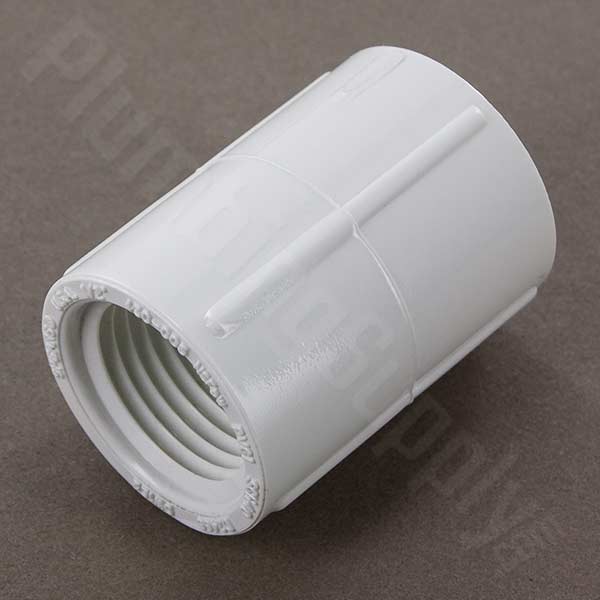

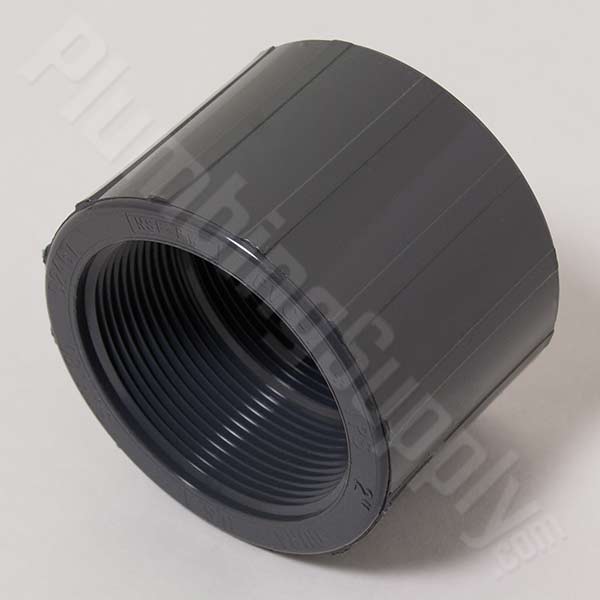

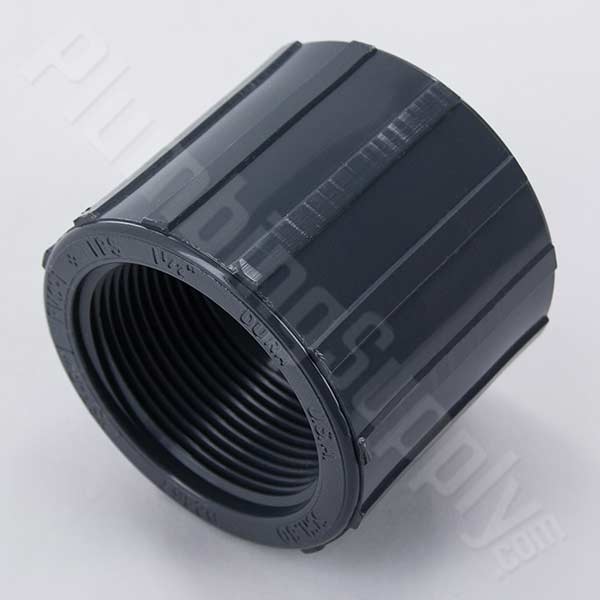

| Threaded Reducing Couplers / Couplings - Fips x Fips - #430 |
| Hard to find |
 |
Need to seal your pipe threads? Click here for pipe dope.
to top of page - to PVC definitions (terms)
One-time-use gloves free with any PVC fitting purchase just click this box >>>
click on any image for a larger view of the fitting

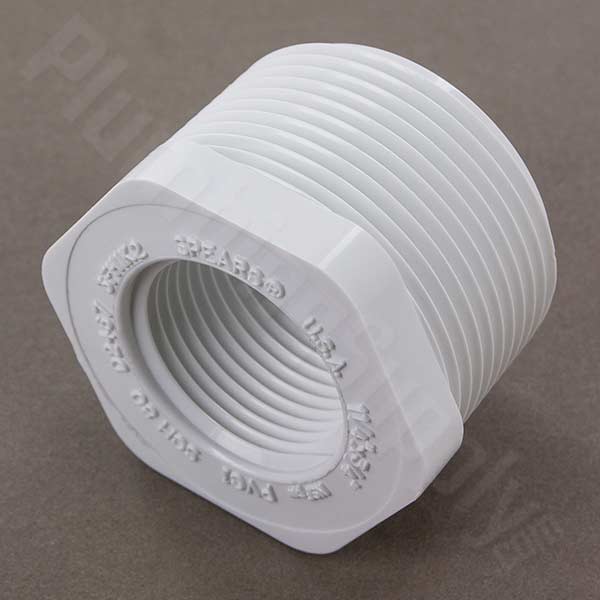

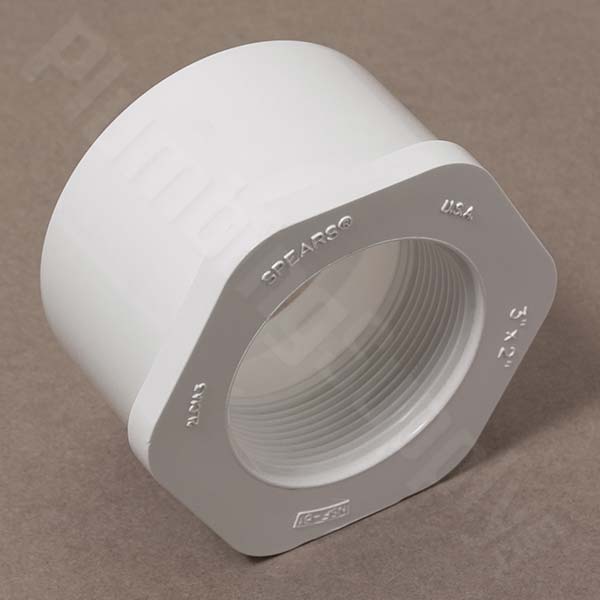

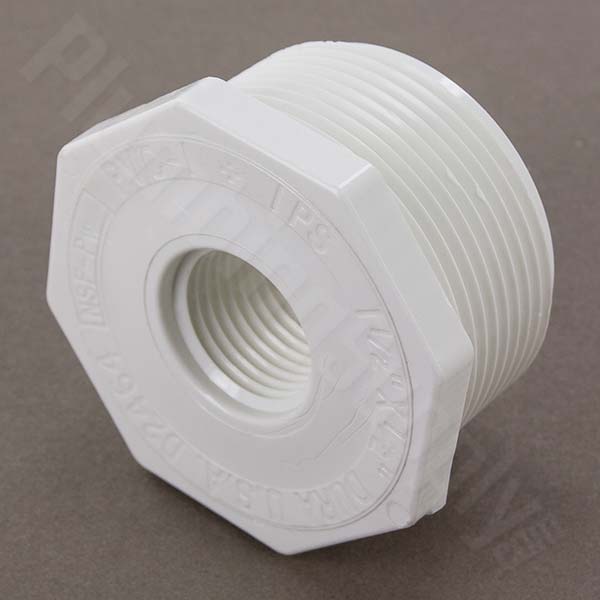

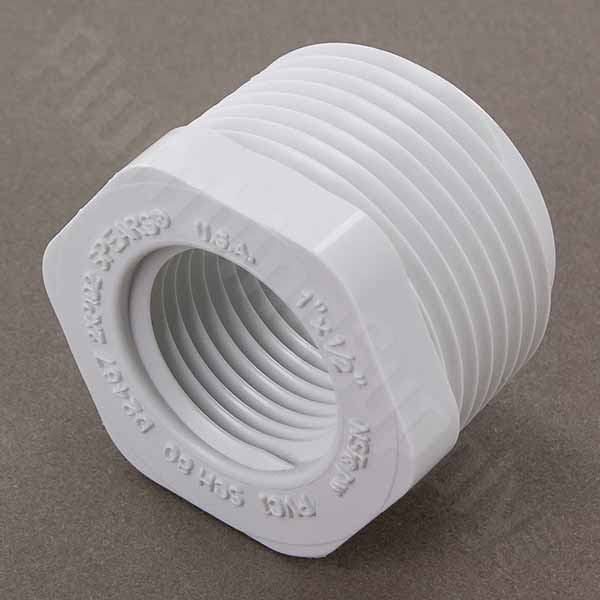

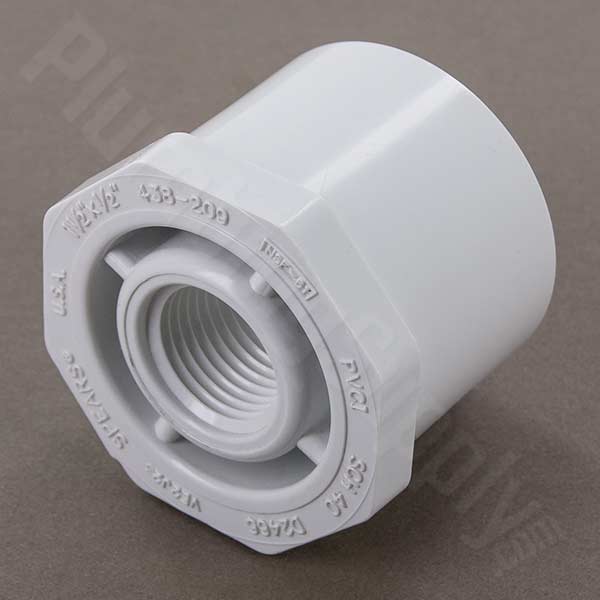

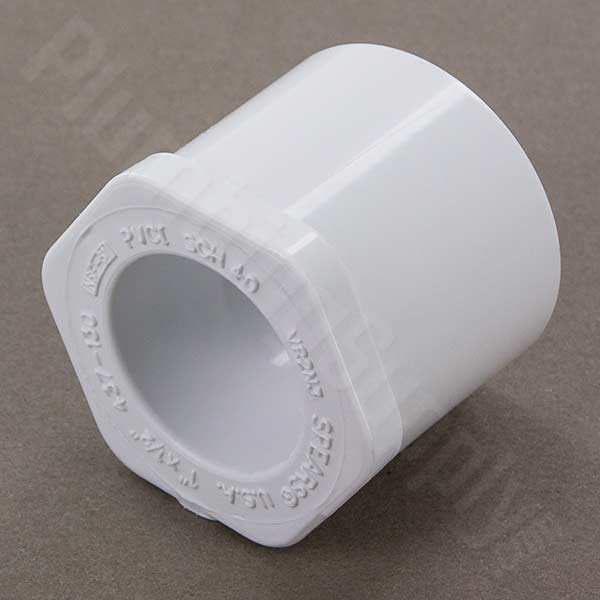

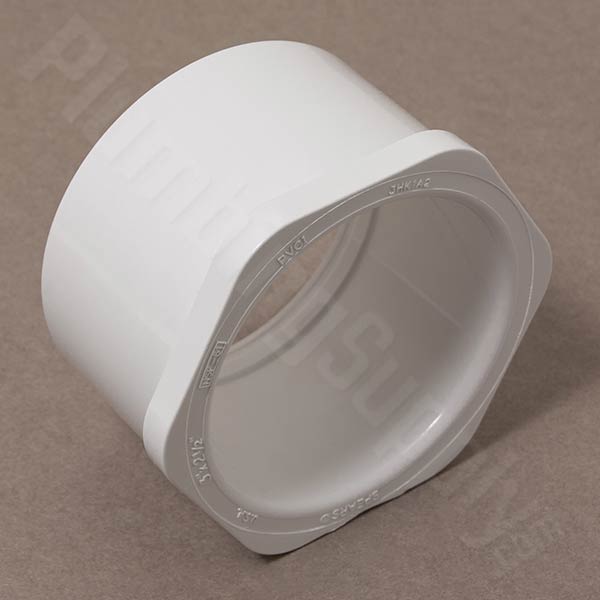

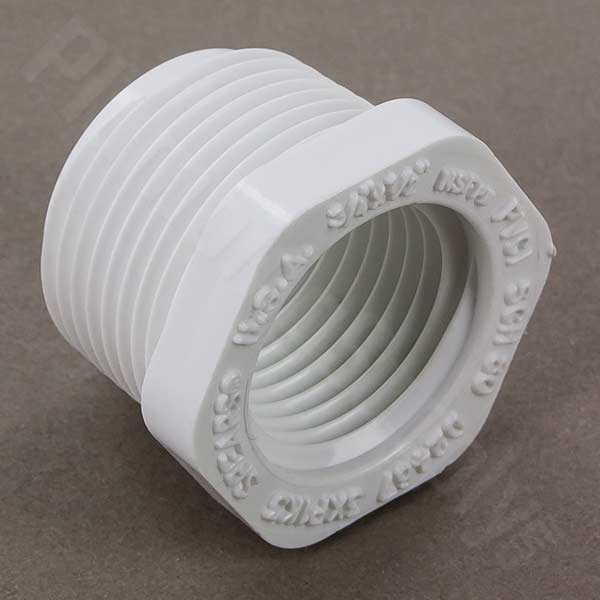

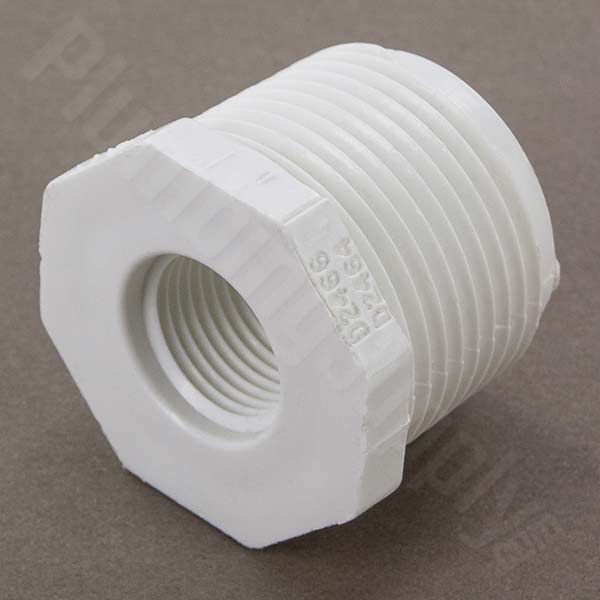

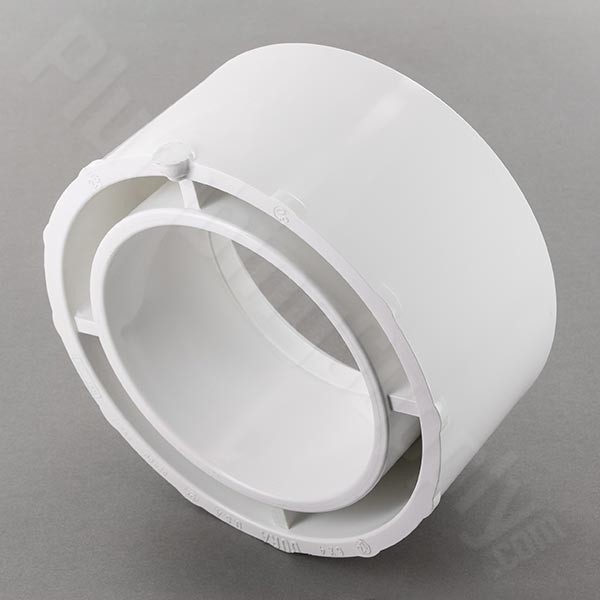

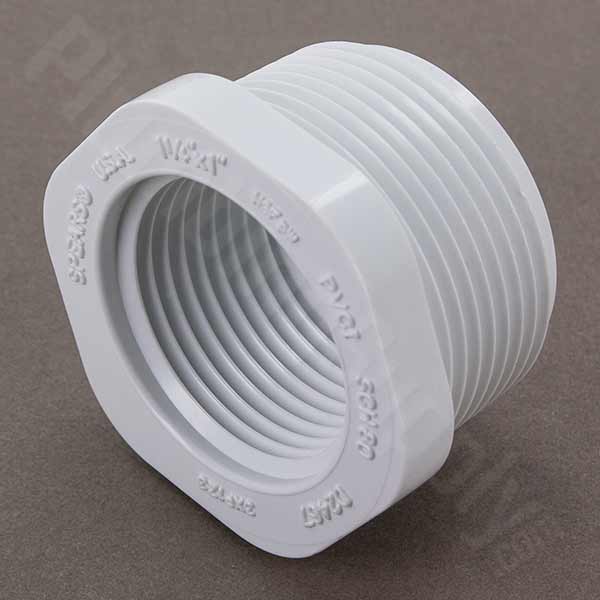

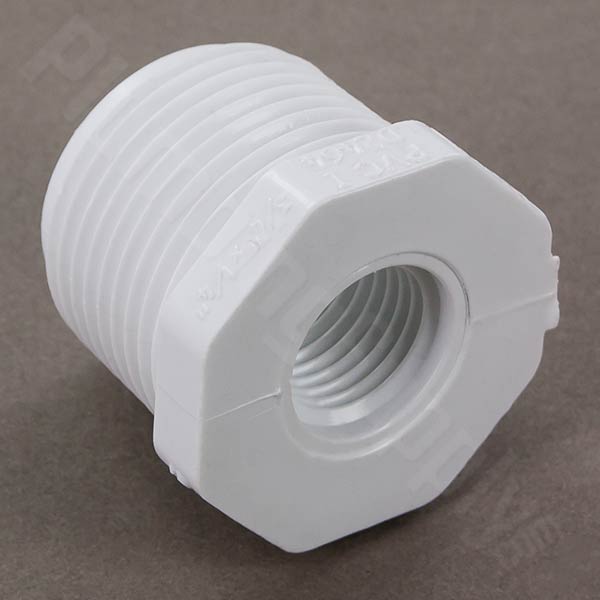

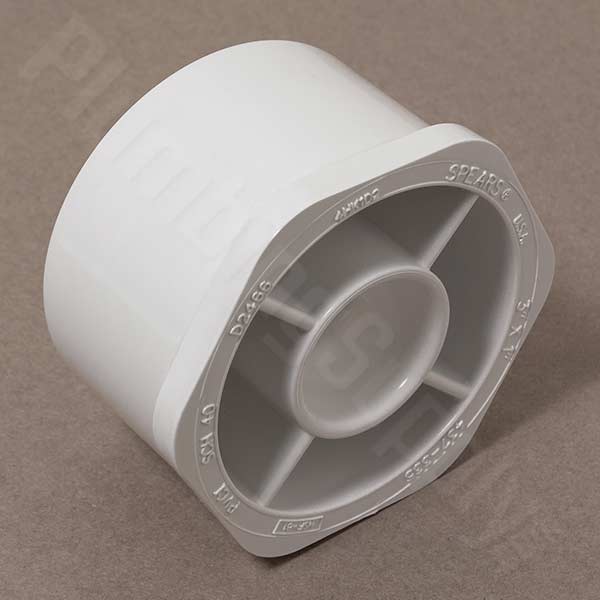

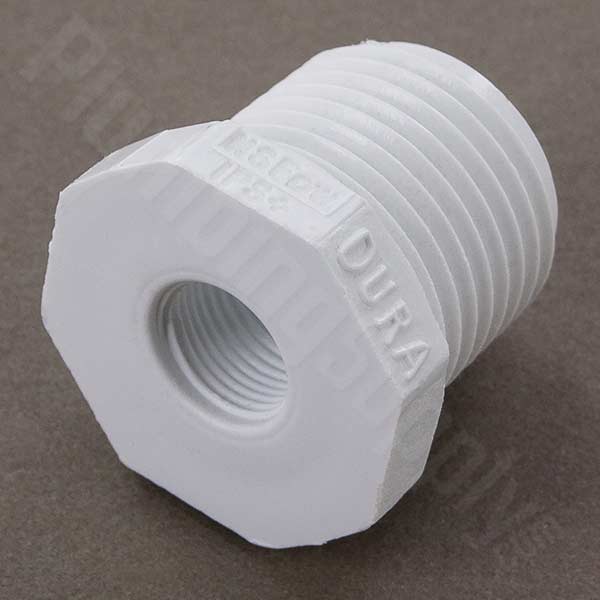

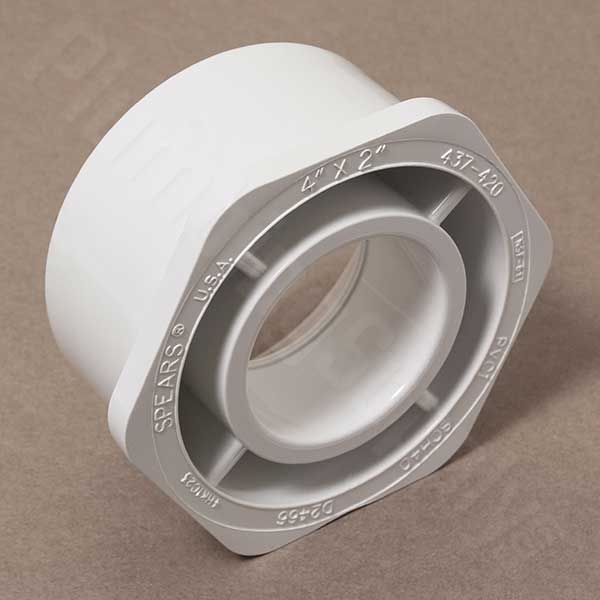

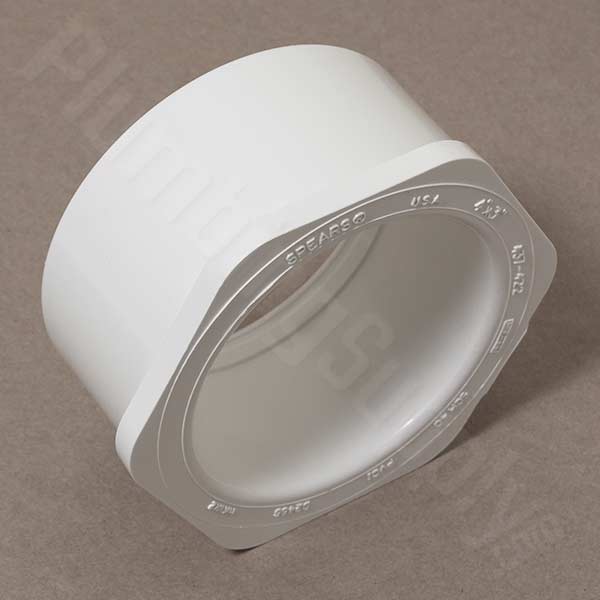

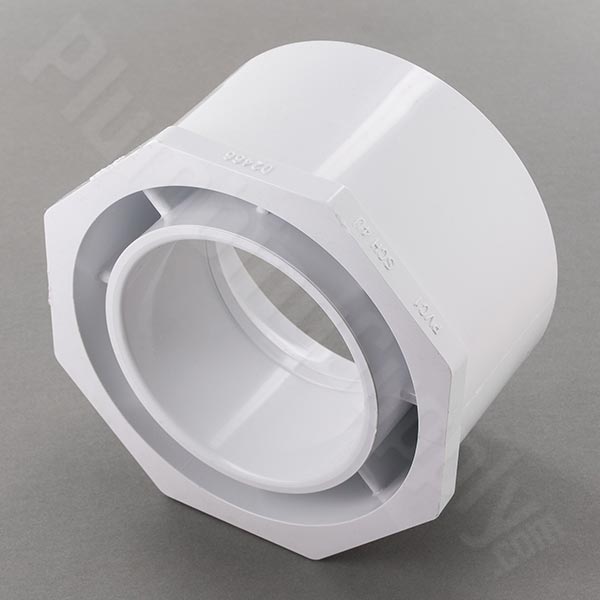

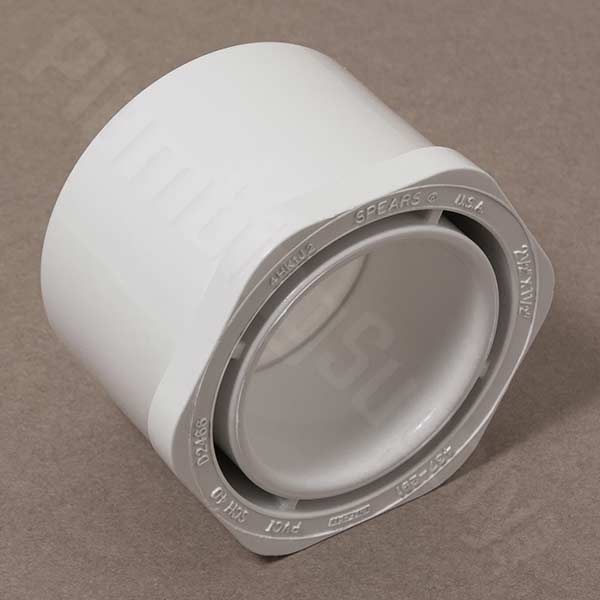

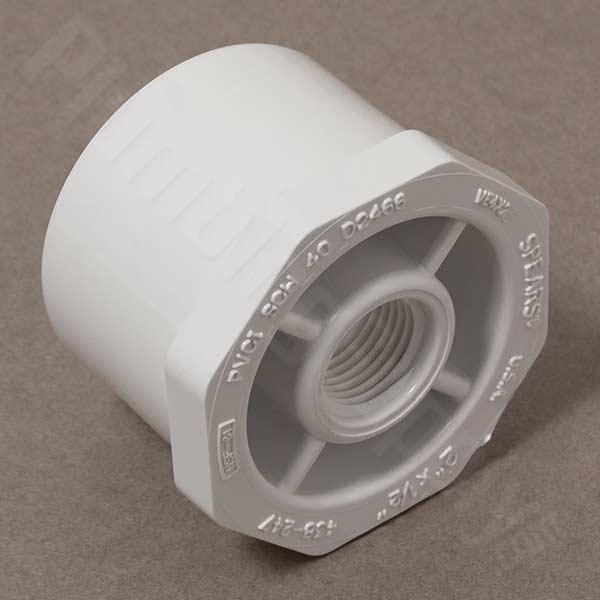

PVC Bushings
click on any PVC plastic fitting picture for a larger view
Need to seal your pipe threads? Click here for pipe dope.
Need to seal your pipe threads? Click here for pipe dope.
Note: Certain thread paste compounds may contain stress cracking agents; please contact the threading paste manufacturer for compatibility with PVC prior to use.
We like to recommend using TU-555 threading paste/compound when threading PVC schedule 40 fittings.

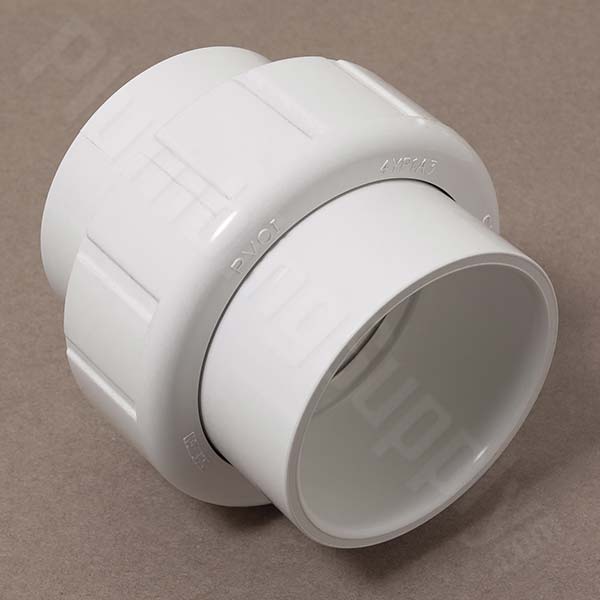

| Slip Unions - S x S - #457 |
 |
to top of page - to PVC definitions (terms)
One-time-use gloves free with any PVC fitting purchase just click this box >>>
click on any image for a larger view of the fitting
Pipe Extenders & Risers

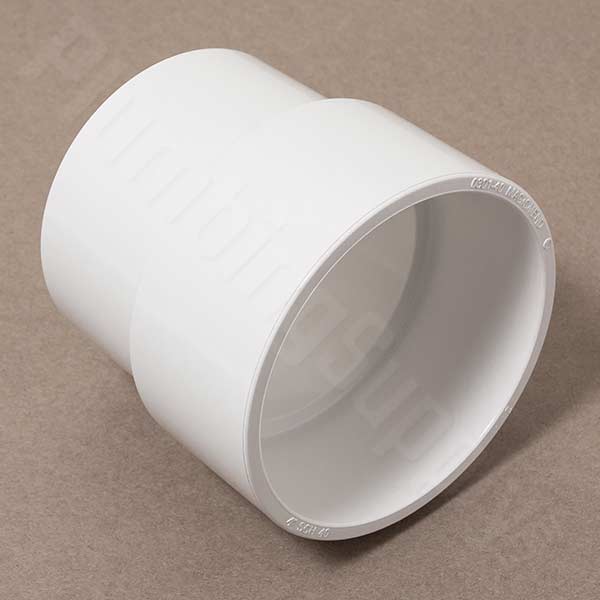

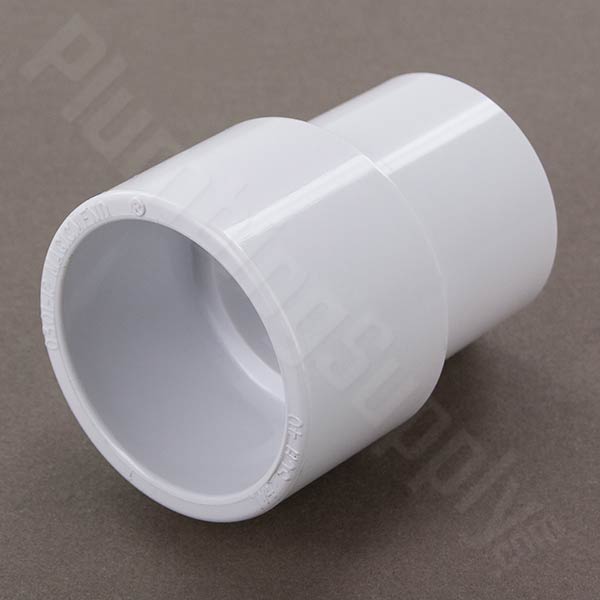

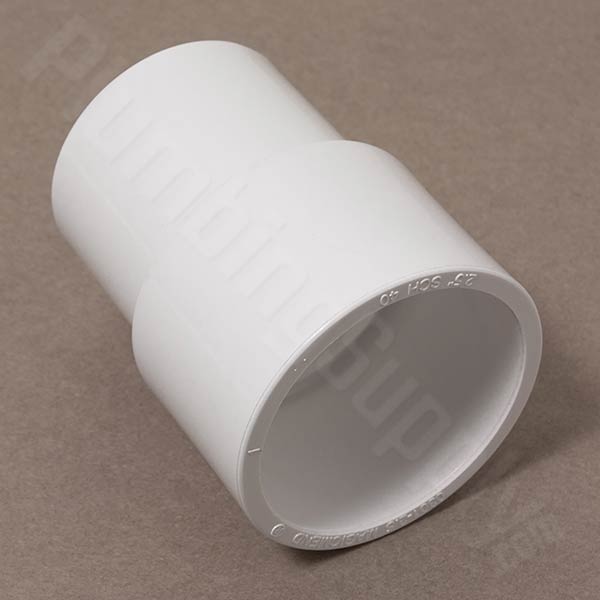

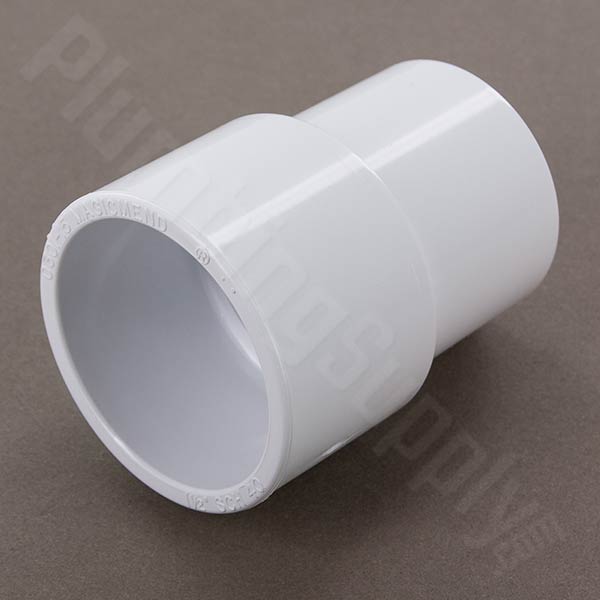

| Pipe Extenders - Spigot x Internal Spigot - #314 |
| Unusual pipe extender that fits inside Sch. 40 pipe. Always a good idea to have a few on hand 'just in case' |
 |

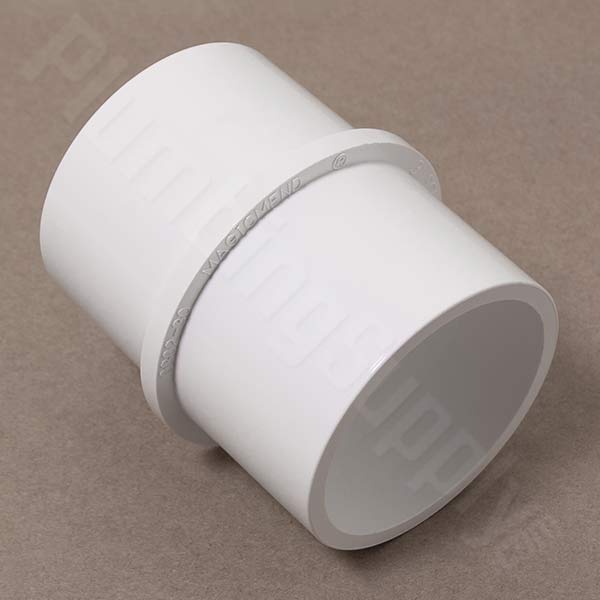

Pipe Extenders - Internal Spigot x Internal Spigot - #315
aka Internal Coupler / Coupling |
| Very unique - fits inside Sch. 40 pipe. Connectors 2 pieces of pipe internally. Very handy to have an extra one on hand. |
 |
These internal couplings fit inside sch 40 pipe
We also offer PVC fitting savers which are great for removing pipe from inside the fitting.

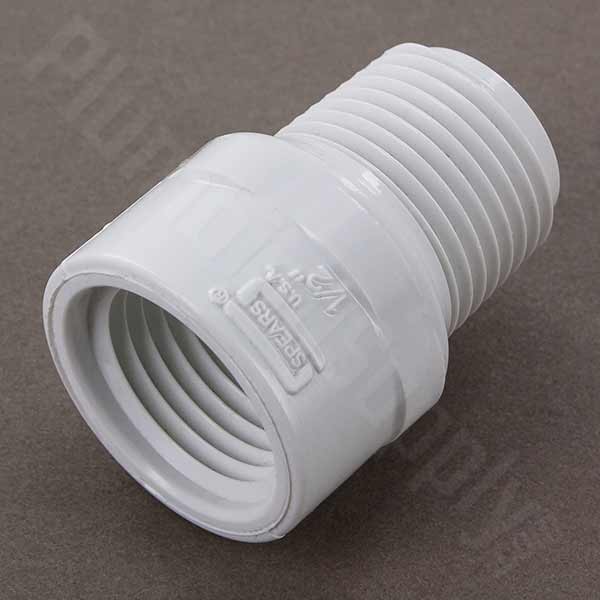

| Threaded Extenders (Riser Extensions) - Fips x Mips - #434 |
| Always handy to have a few spares |
 |
Need to seal your pipe threads? Click here for pipe dope.
| Male Hose Adapters |
 |
Note: MHT Male hose fitting
Need to seal your pipe threads? Click here for pipe dope.
click on any PVC plastic fitting picture for a larger view
Don't forget to check out these related products:
to hot/wet taps for PVC -
to Insta-Loc™ valves -
to pipe brackets

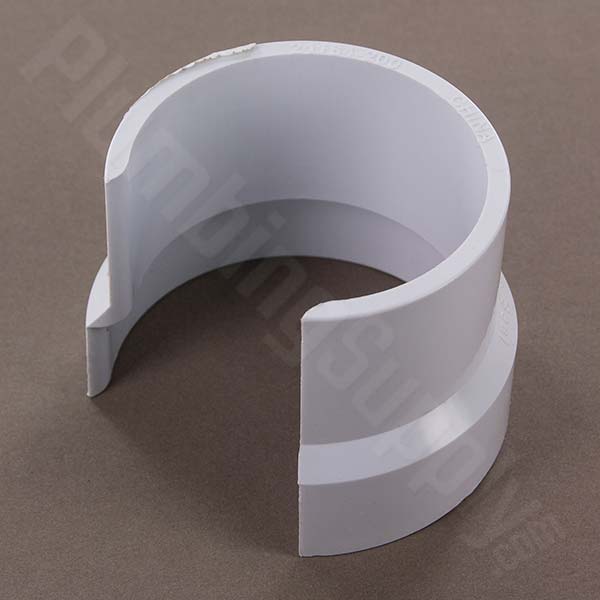

to pipe repair clamps -
to RamBit PVC fitting saver tool -
to PVC slice gates
to plumbing-related tools -
to Sharkbite® repair fittings

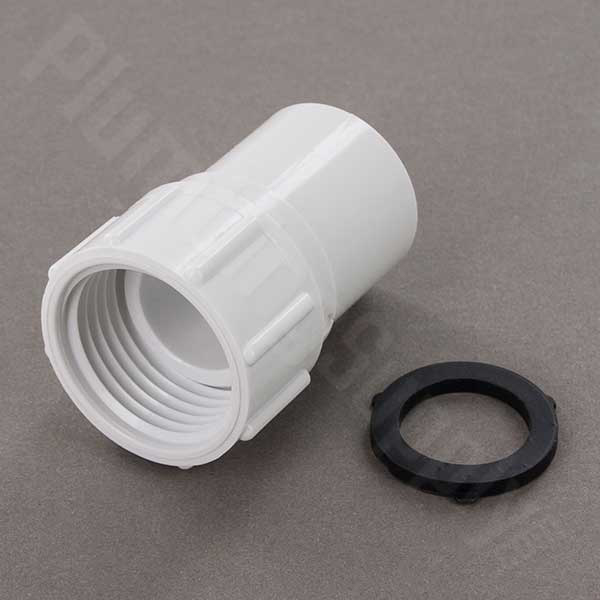

| Female Hose Adapters |
 |
Note: FHT Female hose fitting includes washer
Replacement washers are available below.
Need to seal your pipe threads? Click here for pipe dope.
to brass hose fitting - to hose washers - to sizing - outside diameter guide - to top of page
Vinyl Hose Washers
For female hose adapters shown above. |
Regular |
w/ filter screen |
click on any image for a larger view of the fitting

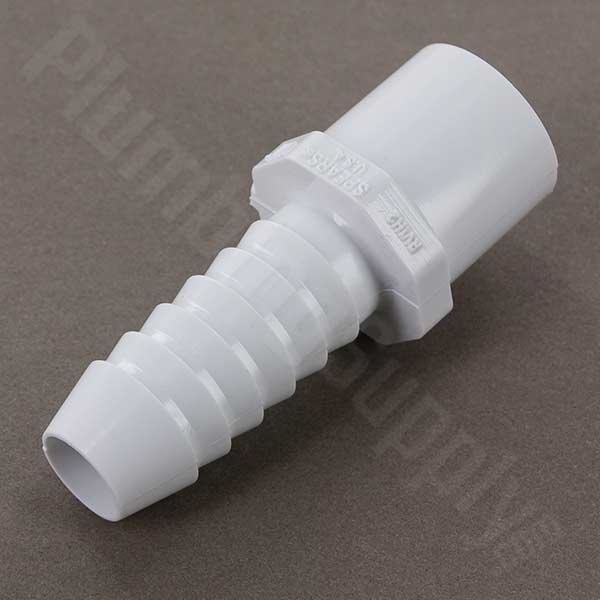

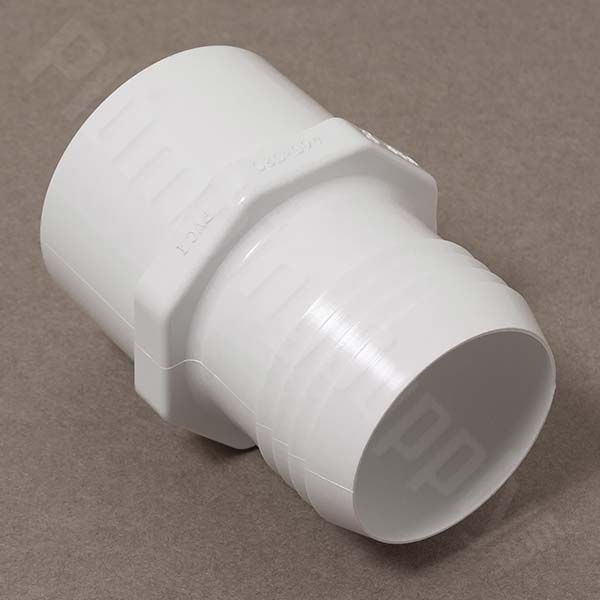

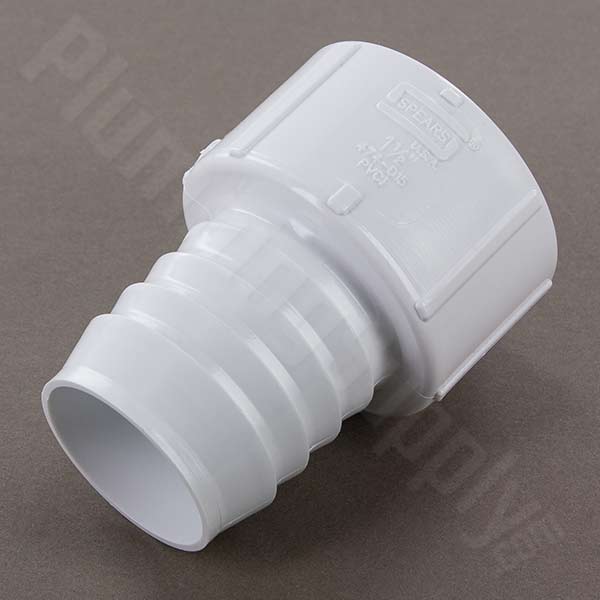

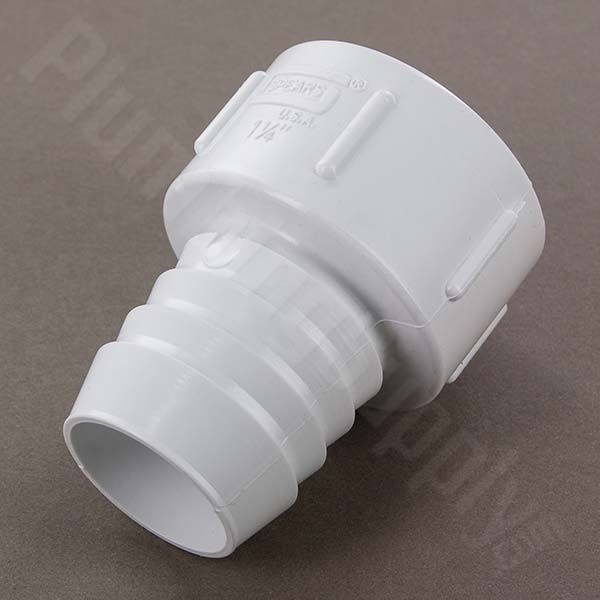

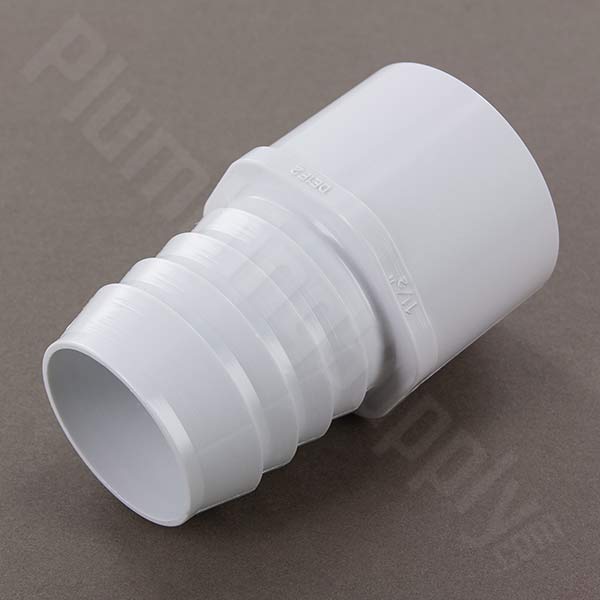

Barbed Adapters
click on any PVC plastic fitting picture for a larger view
| Saddle Tees - Saddle x Slip - #463 |
| This fitting glues onto the side of Sch.. 40 pipe |
One-time-use gloves free with any PVC fitting purchase just click this box >>>
to top of page - to PVC definitions (terms)
click on any image for a larger view of the fitting

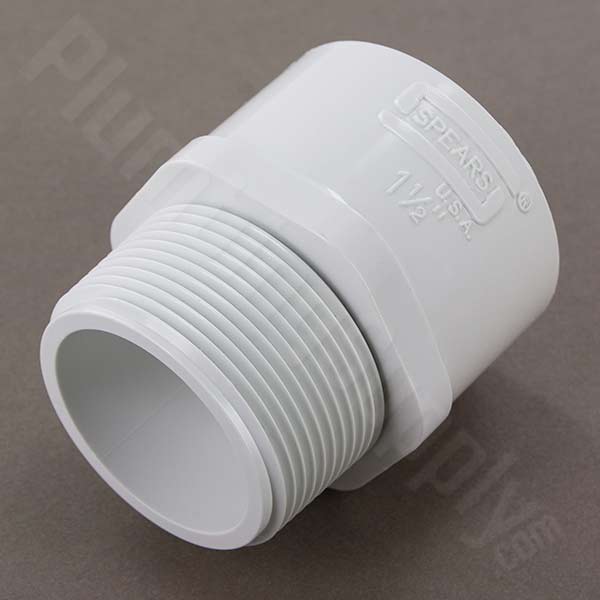

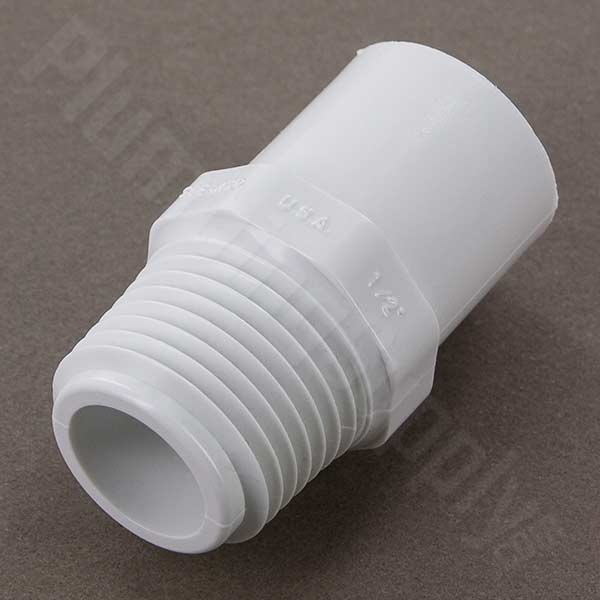

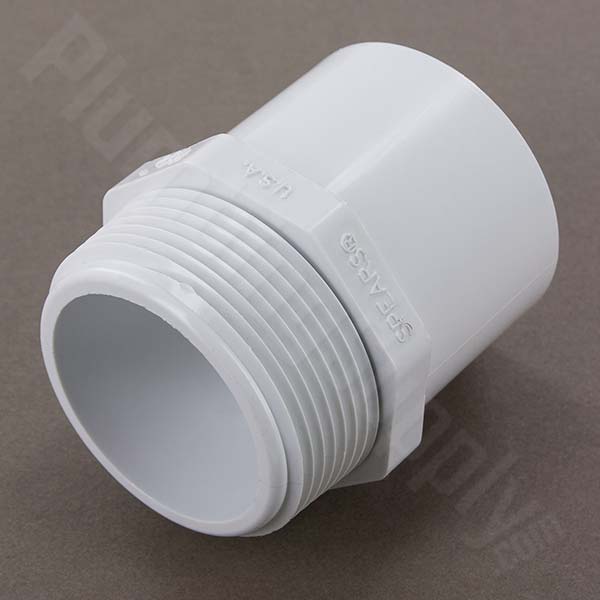

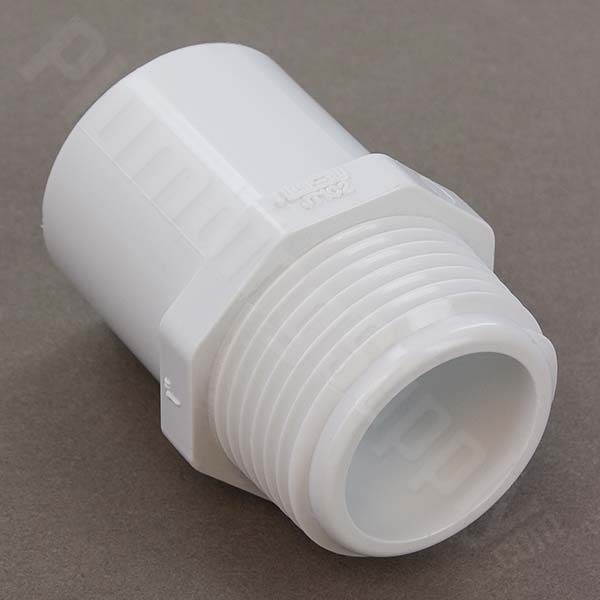

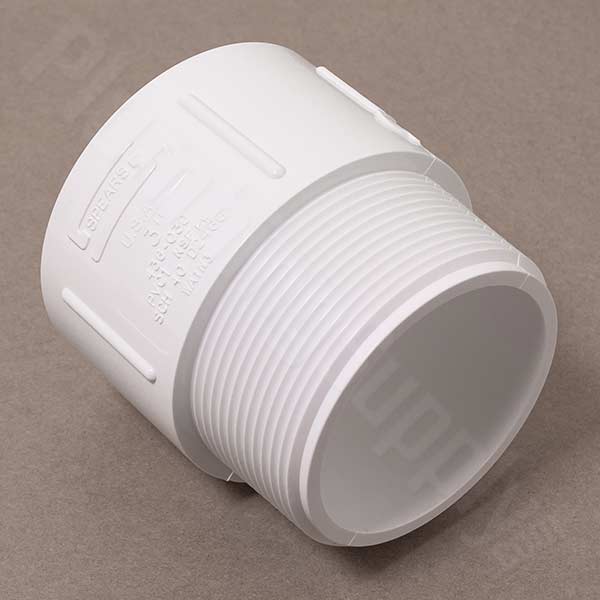

Male Adapters
Need to seal your pipe threads? Click here for pipe dope.

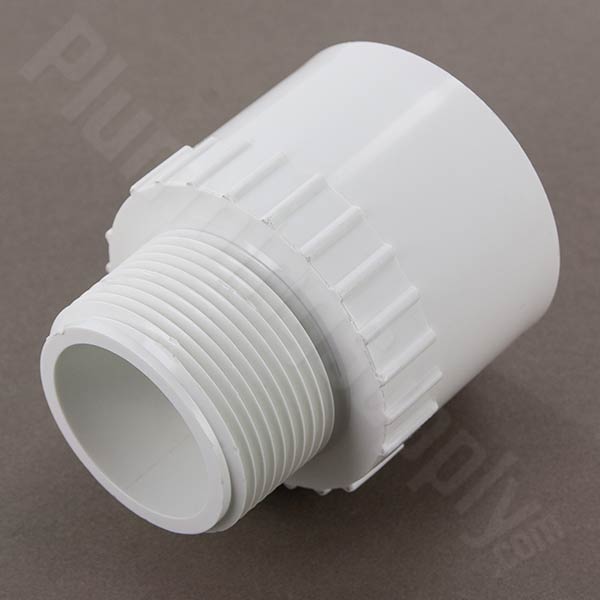

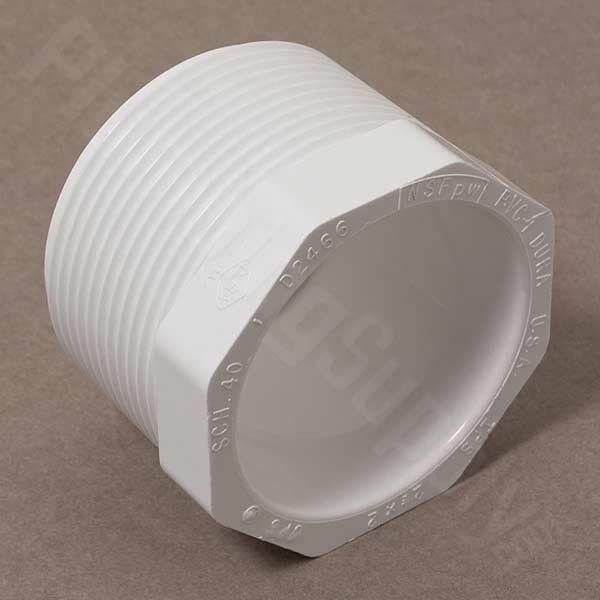

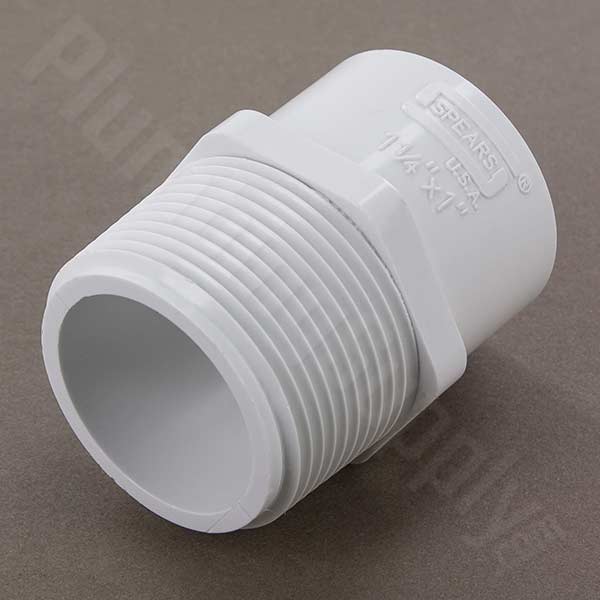

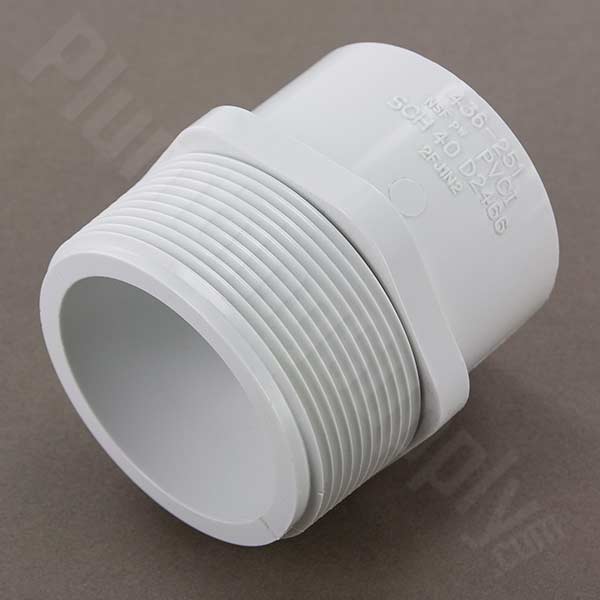

| Reducing Male Adapters - S x Mips - #436 |
 |
Need to seal your pipe threads? Click here for pipe dope.
Need to seal your pipe threads? Click here for pipe dope.
to top of page - to PVC definitions (terms)
One-time-use gloves free with any PVC fitting purchase just click this box >>>
click on any image for a larger view of the fitting

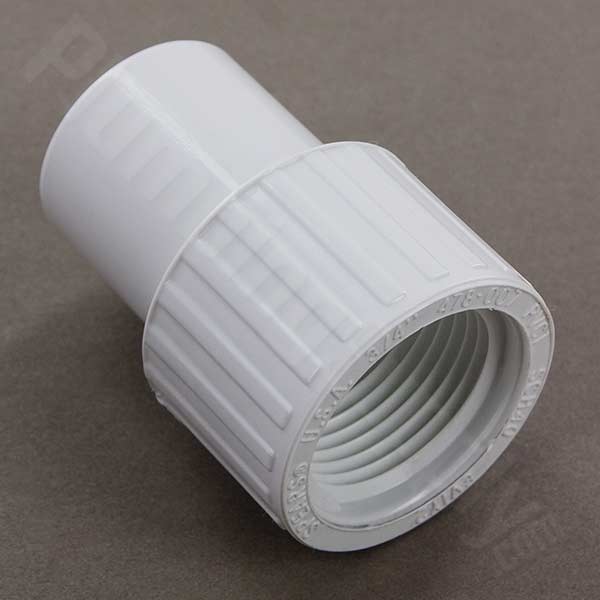

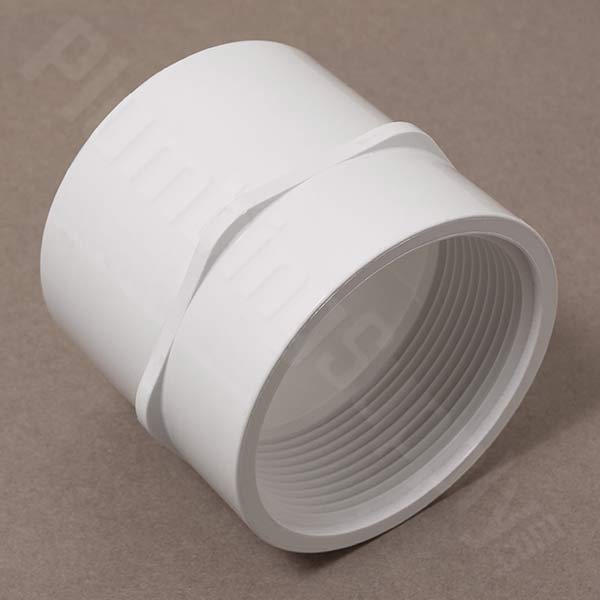

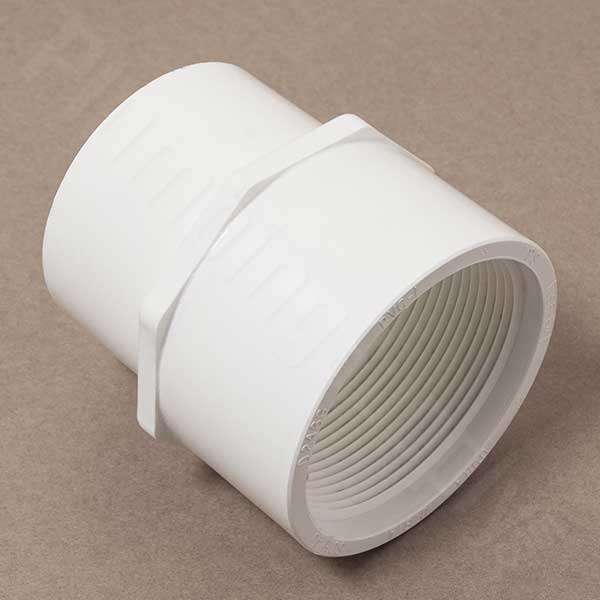

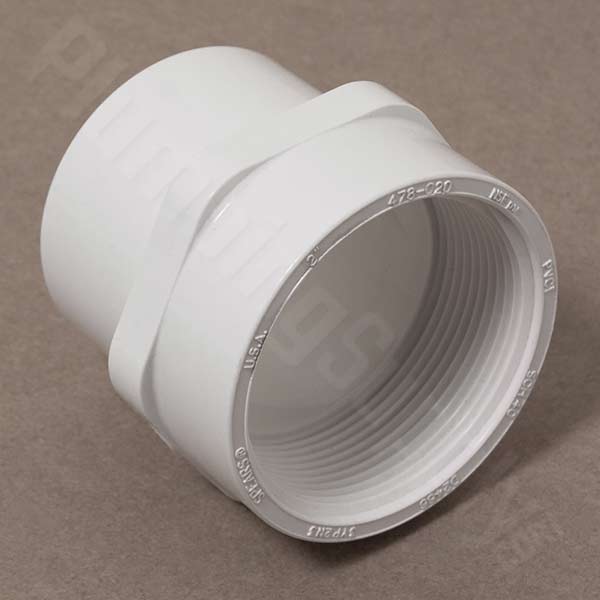

Female Adapters
Need to seal your pipe threads? Click here for pipe dope.
click on any PVC plastic fitting picture for a larger view

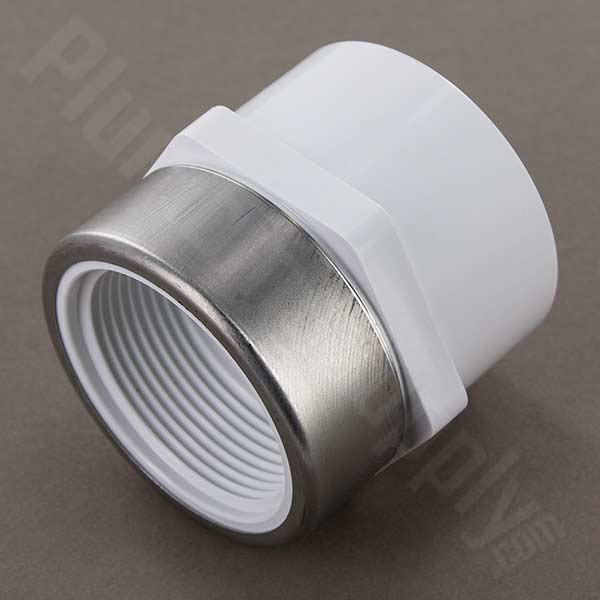

| Stainless Steel Reinforced Female Adapters - S x Fips - #435-SR |
 |
Need to seal your pipe threads? Click here for pipe dope.

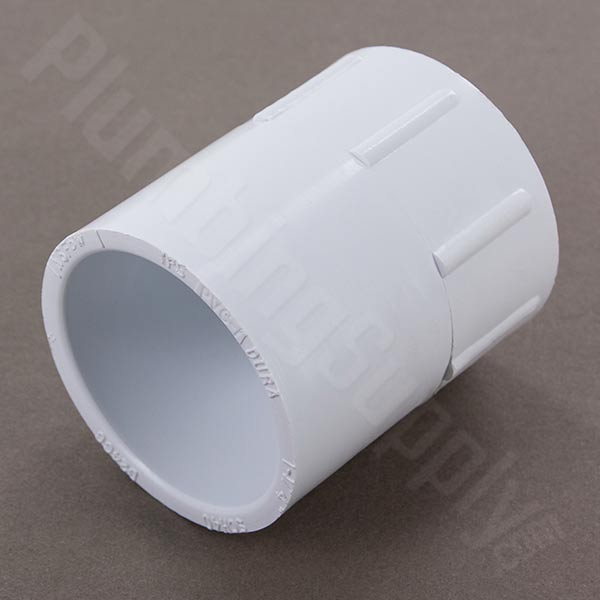

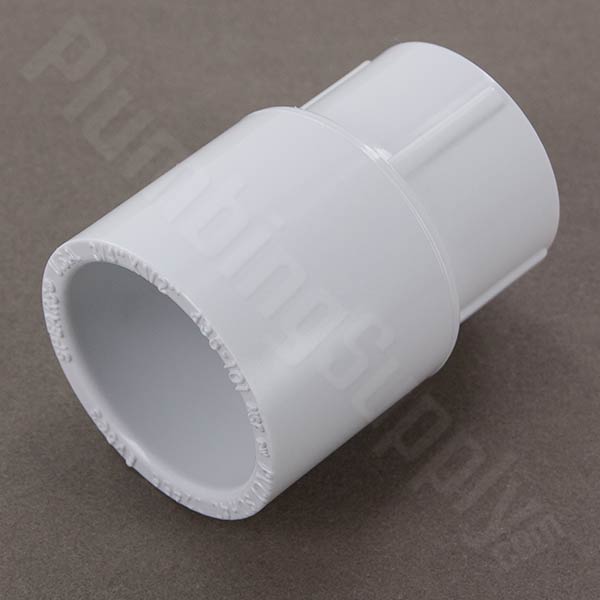

| Reducing Female Adapters - S x Fips - #435 |
 |
Need to seal your pipe threads? Click here for pipe dope.
Need to seal your pipe threads? Click here for pipe dope.
to top of page - to PVC definitions (terms)
One-time-use gloves free with any PVC fitting purchase just click this box >>>
click on any image for a larger view of the fitting

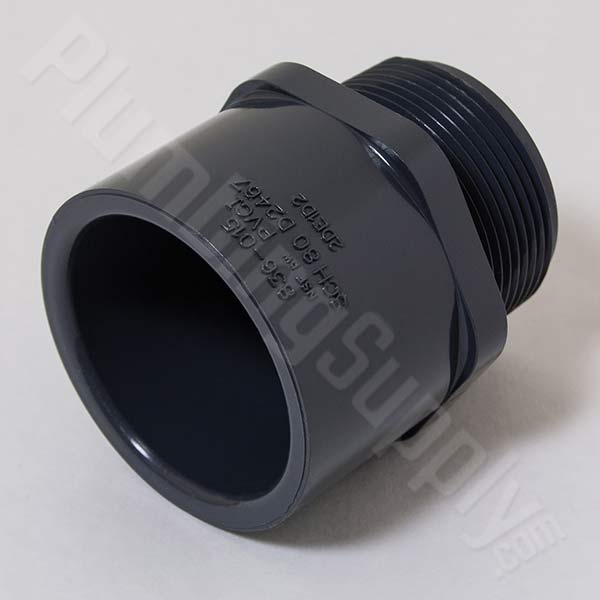

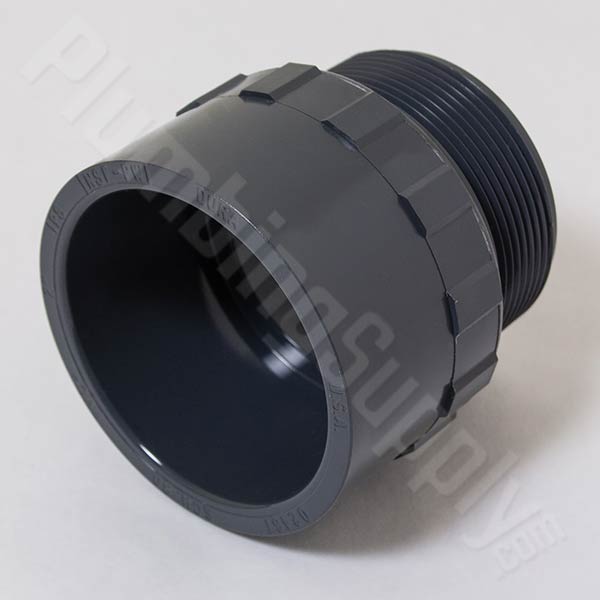

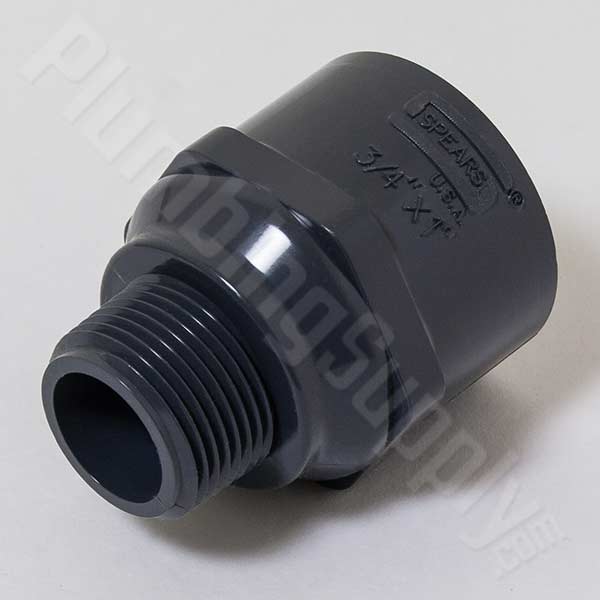

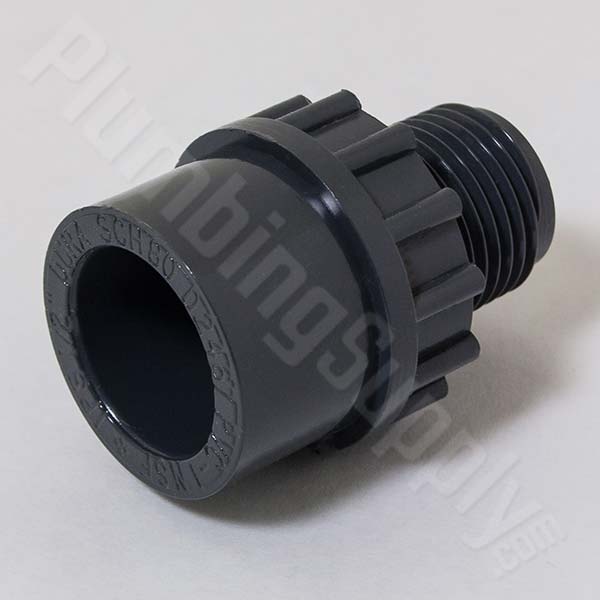

Schedule 80 PVC Fittings
Need to seal your pipe threads? Click here for pipe dope.

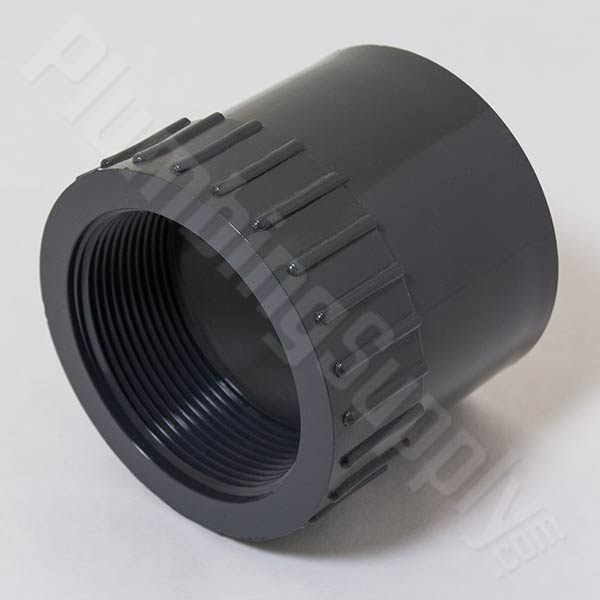

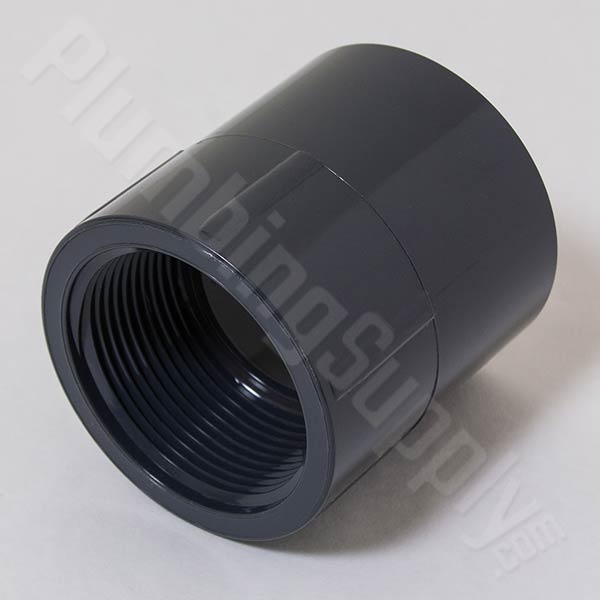

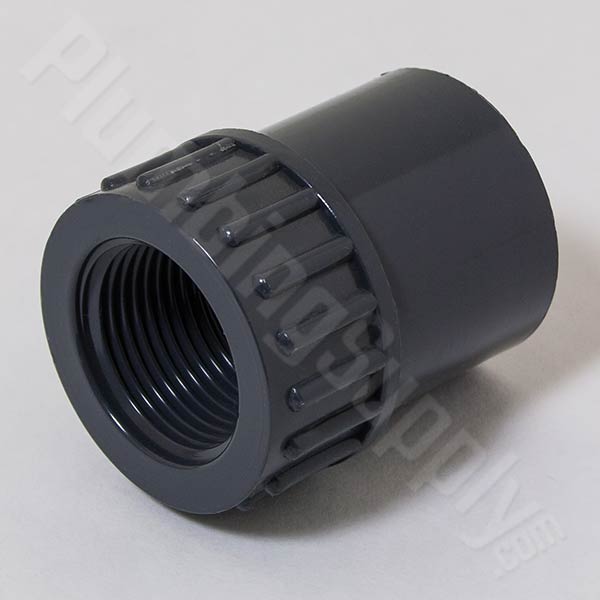

| Sch. 80 Female Adapters - S x Fips - #835 |
 |
Need to seal your pipe threads? Click here for pipe dope.
to top of page - to PVC definitions (terms)
One-time-use gloves free with any PVC fitting purchase just click this box >>>
| PVC Glue / Cement |
 |
- Works great on PVC pipe & fittings Sch.40 & Sch.80 up to 6" in diameter
- Suitable for potable water, sewer, drain, waste & vent systems
- Reduced solvent emissions -
LO-V.O.C.
- Medium bodied
- Gray
- Brush / dauber included in can
- Note: these items must ship via standard Ground carriers (Federal Express/UPS/etc.) and can only ship to the 48 contiguous States (cannot ship to Alaska or Hawaii)
|
PVC primer? Unfortunately, we do not carry PVC primer.
| Thread sealants (IPS threads) |
Common Terms
(and what they mean) |
- S or Slip: A regular hub. The pipe glues into this (same O.D. as coupling)
- Mips: Male pipe threads on the outside of fitting
- Fips: Female pipe threads on the inside of fitting
- Mipt: Male pipe threads on the outside of fitting (same as Mips)
- Fipt: Female pipe threads on the inside of fitting (same as Fips)
- Spigot or SP: The same size as the pipe. Will glue into another fitting
- MHT: Male hose threads (garden hose)
- FHT: Female hose threads (garden hose)
- Barb: Barbed fitting
- Saddle: Attaches to the side of pipe
|
"How do I glue PVC fittings and valves to the pipe?"
Most PVC manufacturers recommend the installer follows the instructions for the cement and primer that is being used. Their instructions are usually found on the label of the container.
"How long should I wait after I've used solvent on a PVC fitting before
pressurizing the system?"
In most situations, to be 100% sure of no leaks, we recommend waiting 24 hours before pressurizing a system.
"I've had a few female adapters break. What am I doing wrong?"
Many codes (such as UPC 1994 sec606.2.2) prohibit female PVC screwed fittings for water piping. The reason for this is pressure is exerted outwardly and eventually a female adapter can crack. We always recommend instead using PVC male adapters with metal female fittings. Specialty female threaded transition adapters, incorporating a reinforced outer stainless steel retaining ring, can help reduce problems associated with over-tightening, outward stress, etc. and may help provide a strong, leak-tight seal for plastic-to-metal transitions. Note that in some codes even these reinforced female threaded fittings are not accepted as well.
"Do you recommend using PTFE thread sealing tape on PVC threads?"
Lasco Manufacturing says: "It is wrong to add excess bulk to a threaded joint
by wrapping male threads in Teflon® tape. It is wrong to make over-tightening
easier by using Teflon® tape..." We have seen much similar PTFE thread sealing tape used satisfactorily but cannot (due to
liability potential) recommend that you use PTFE thread sealing tape (pipe dope designed for PVC, such as we offer above, is acceptable).
"What about 'fast' or 'hot' PVC glues? Don't they glue faster?"
Normally the 'fast' or 'hot' PVC glues ("solvents") have a faster set time.
Cure time for most is still about the same. "Set" time is the initial period of swelling required to give the joint enough mechanical strength to be gently handled. "Cure" time is the total time period of required swelling for the joint to acquire enough strength that it can perform its job transporting materials through it at whatever pressure and temperature required without coming apart or leaking.
"Can I use PVC pipe and fittings/valves for compressed air or gases?"
Although some people use PVC piping for compressed air or gases, we are not
aware of any fittings manufacturer that recommends it and we highly recommend that you do NOT use plastic fittings with compressed air/gases. We believe it is dangerous and absolutely do not recommend it. Air is much more compressible than are liquids and could therefore cause a violent explosion.
"Can I glue PVC if it is wet?"
All solvent cements have the ability to absorb some water and still perform
well enough to accomplish an adequate joint. However, research shows that the presence of just 10% water in solvent cement can slow penetration and
swelling by up to 65%. This joint, with water inside, will always be an inferior joint and subject to problems.
"Can I use PVC glue on other plastics?"
We only recommend using glues manufactured for a specific plastic i.e. PVC
glue only on PVC pipe.
Note: There are many plastics that cannot be glued
at all; polyethylene, polypropylene, nylon, polybutylene, and other polyolefins.
"What is LO-V.O.C.?"
LO-V.O.C. cements produce significantly less amounts of "V.O.C.'s". V.O.C. stands for "volatile organic compounds", which are unhealthy when breathed or induced. V.O.C.'s also diminish air quality. Please read and follow all directions carefully when applying these cements.

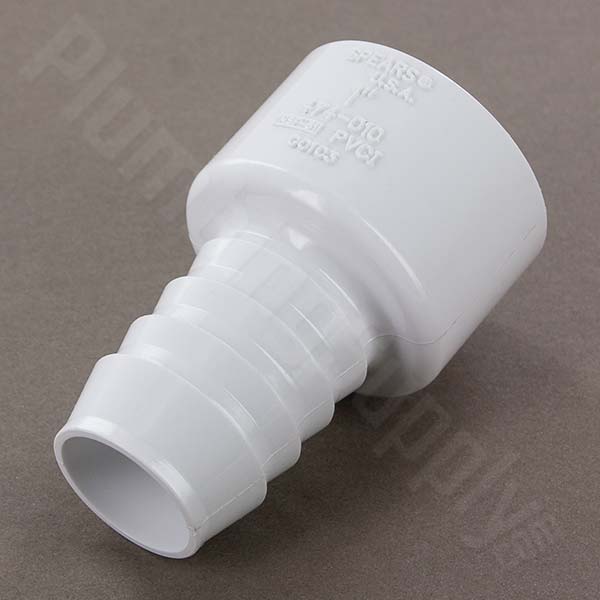

"I need to adapt pipe thread (3/4") to vinyl tubing (3/4"). I think your PVC #474 barbed adapter (SxBarb) is the right part. Can you clarify this?"
The PVC barbed fittings and brass barbed fittings are the same size barbed fittings. Both refer to the hose/tubing "inside diameter" when they reference the barb size: That is, 3/4" barb will fit 3/4" inside diameter tubing. The main difference is that PVC barbed fittings - on their other end - are either slip (slip = PVC pipe will slip into this end of the fitting) or spigot (spigot = same size as PVC pipe), whereas brass barbed fittings adapt to a threaded fitting. They are used for different applications.
"I am a manufacturer and have a need for PVC fittings without a bar code on them. Do you offer such fittings?"
Yes. In our order form you will see an area for comments when you are entering your personal information. When ordering, simply request (in the comments section) PVC fittings without bar codes on them, and your PVC fittings will then be shipped without bar codes. NOTE: IF the non-barcoded fittings you're ordering are in stock, your order might take an additional day or two to ship but generally won't take any longer. However, if the fittings are not in stock, there may be a delay of up to two weeks before shipment to allow the manufacturer to make a run of non-barcoded fittings. Also, non-barcoded fittings must be ordered in multiples of 5 or 10, so it may be necessary for you to increase your quantities to avoid additional delays.
"Do I really need to use primer?"
Primer is a mixture of solvents used to penetrate the pipe and fittings and start the swelling process ahead of the application of the solvent cement.
It is highly recommended that you use primer.
"Do you offer PVC primer?"
We have not found a brand of primer that we are confident will not leak in transit. It is highly flammable and, in our opinion, too dangerous to ship.
"I have seen PVC wyes for less money?"
Yes, there are drainage PVC wye fittings, which are not schedule 40. They are not for drinking water or for pressure systems and they
do cost less money than our drinking water grade, schedule 40 pressure fittings that we show above. You will find that our schedule 40
PVC fittings are usually lowest priced if you compare them to the prices of other suppliers' schedule 40 fittings.
"Do you offer British Standard Threads (BST) fittings?"
Sorry, we only sell U.S. threaded fittings.
"What is the name of the manufacturer of these PVC fittings?"
Because of our large selection (we believe we have the largest selection of PVC fittings on the Internet), our large volume, and because sometimes manufacturers are out of sizes and/or products (we have over 98% of the above products in stock at all times), we get our fittings from many PVC fittings suppliers. We guarantee top quality fittings by U.S. PVC fitting
suppliers, but please be aware the fittings that we send will not necessarily all be from one brand or one manufacturer. If you must have ("insist on") one specific brand of PVC manufacturer's fittings, please specify that clearly on your order form (where we allow space for you to write notes to us when you are placing your order); we will then let you know if that is possible before we process or ship your order.
"Do I have to do anything special when I'm gluing a PVC valve?"
Before installation, make sure the valve is in the "open" position and
all cemented surfaces are clean and dry. Install the valve following the established solvent procedure. A suitable support should be placed under
the valve body to hold the weight of the valve. Be sure to adhere to proper curing times, and wipe off any excess cement that might have
accumulated at the joint bead.
"Can I get a price break if I buy in volume?"
For 500 or more of the same fitting, we give you a 5% discount off of the above prices. With 2000 or more of the same fitting, you can take an
additional 5% off.
"I'm confused about the size that I need?"
In plumbing the "approximate" inside diameter of the PIPE you're using (known as "nominal" size) is what is used to determine the size of the fittings you'll need. This can be somewhat confusing to someone that doesn't do plumbing on a regular basis. Adding to potential confusion, pipes can have the same outside diameter but come in different thicknesses (which make the inside diameters vary slightly).
If you are not sure what size that you need please look at this page (click here) which shows the outside diameter of the "standard" PVC pipes.
Caution:
Do not use or test any brand of PVC fittings with any liquids not recommended by the
manufacturer. Do not use any brand of PVC fittings with compressed air or gas systems. Modification of PVC plastic fittings voids any warranty.
"What does it mean to have ANSI Certification for lead free plumbing products?"
Laws requiring plumbing products that come in to contact with drinking water to be essentially lead-free (0.25% weighted average) have been passed in California and Vermont. In order for companies to ship these plumbing products to locations in CA and VT, they must be ANSI certified lead free.
"What is CA AB 1953 and VT S.152?"
CA AB 1953 is a California Assembly Bill that defines "lead free" to mean not more than a weighted average of 0.25% lead content in pipe and fittings. VT S.152 is a Vermont Senate Bill that mimics the California AB 1953 and regulates the amount of lead to a weighted average of 0.25% or less.
to PVC Nipples - to PVC - compression fittings
Note: We make no claim to the load capacity of PVC plastic products.
Note: Certain thread paste compounds may contain stress cracking agents; please contact the paste manufacturer for compatibility with PVC prior to use.
We recommend using TU-555 threading paste/compound when threading PVC schedule 40 fittings.
to sizing - outside diameter guide
PVC pipe is designed for the transmittal of liquids, and could be dangerous when used for transmitting compressed air or gas (especially above ground).
