Automatic Sensor Activated Flushometers For Toilets
by Sloan Valve Company
When you're looking for a reliable flush valve, look no further than Sloan. These sensor operated flush valves are designed to last effortlessly through repeated use, and can be counted on to provide the performance and reliability you expect from Sloan. We here at PlumbingSupply.com
® are pleased to offer these and many other
Sloan products.
Look for this symbol to find Sloan products that
meet requirements of the Buy American Act

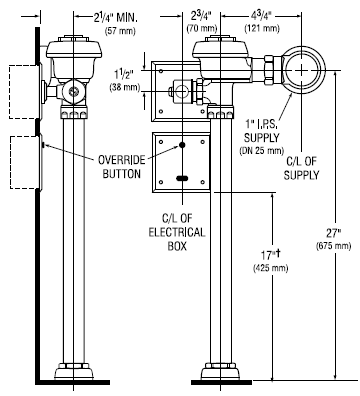

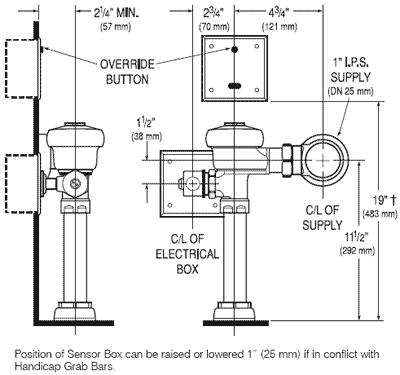

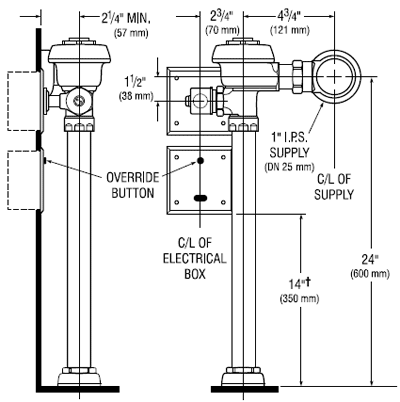

Royal Optima® Electronic, Sensor Activated Toilet / Water Closet Flushometers
Designed for floor mounted or wall hung top spud bowls
Model #110-ES-S
Features:
- Sensor activated flushometers for floor mounted or wall hung top spud toilets
- Conforms to ADA requirements - hands free operation
- Chrome plated flushometers for either left or right hand supply
- Synthetic rubber diaphragm with dual filtered fixed bypass for extra durability
- Optima® EL-1500-L self-adaptive infrared sensor with indicator light
- User friendly three second flush delay
- Courtesy flush override button
- Non-hold-open integral solenoid operation
- Chrome plated wall cover plates with vandal resistant screws
- 1" I.P.S. screwdriver Bak-Chek angle stop
- Free spinning vandal resistant stop cap
- High back pressure vacuum breaker flush connection
- One-piece bottom hex coupling nut, spud coupling, & flange for 1-1/2" top spud
- Sweat solder adapter with cover tube & cast set screw wall flange
- High copper, low zinc brass castings for dezincification resistance
- Fixed metering bypass with no external volume adjustment to ensure water conservation
- Permex™ rubber diaphragm, stop seat, & vacuum breaker provides chloramine resistance
- ASSE 1037, ANSI/ASME A112.19.6 compliance
- Typical Sloan Optima® flushometer/sensor installation wiring diagram
- Requires EL-154 transformer (available directly below)
- All of the flushometers below are Buy American Act compliant

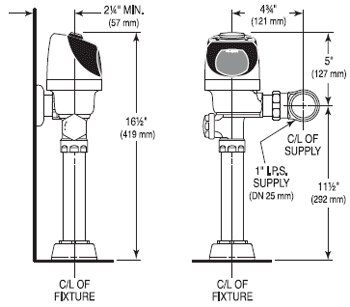

G2 Optima Plus® Battery Powered, Sensor Activated Toilet / Water Closet Flushometers
Designed for floor mounted or wall hung top spud bowls
Model #8110
Features:
- Sensor operated water closet flushometer for floor mounted or wall hung top spud bowls
- ADA Compliant OPTIMA Plus® "hands free" operation
- Includes four (4) size AA batteries (factory installed)
- Chrome plated flushometer for either left or right hand supply
- Infrared sensor with multiple sensing fields for high & low target detection
- Synthetic rubber diaphragm with dual filtered fixed bypass for extra durability
- Self-adaptive infrared sensor with indicator light
- User friendly three second flush delay
- Courtesy flush override button
- Infrared sensor range adjustment screw
- Non-hold-open integral solenoid operation
- 1" I.P.S. screwdriver Bak-Chek angle stop
- Free spinning vandal resistant stop cap
- High back pressure vacuum breaker flush connection
- One-piece bottom hex coupling nut, spud coupling, & flange for 1-1/2" top spud
- Sweat solder adapter with cover tube & cast set screw wall flange
- High copper, low zinc brass castings for dezincification resistance
- "Low battery" indicator LED
- Fixed metering bypass with no external volume adjustment to ensure water conservation
- Permex™ rubber diaphragm, stop seat, & vacuum breaker for chloramine resistance
- ASSE 1037, ANSI/ASME A112.19.6 compliance
- All of the flushometers below are Buy American Act compliant

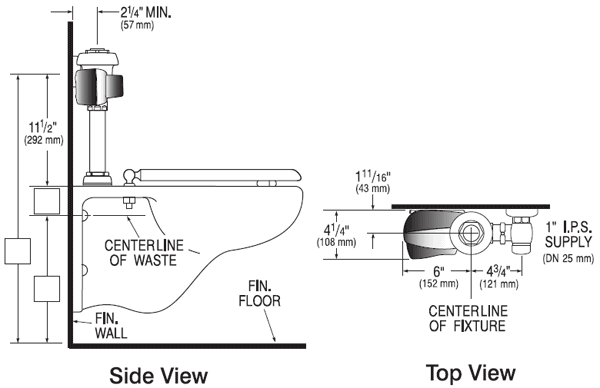

Royal Optima® SMOOTH™ Battery Powered, Sensor Activated Toilet / Water Closet Flushometers
Designed for floor mounted or wall hung top spud bowls
Model #110
Features:
- ADA Compliant - hands free
- Sensor operated water closet flushometer for floor mounted or wall hung top spud bowls
- Includes four (4) size C batteries (factory installed)
- Synthetic rubber diaphragm with dual filtered fixed bypass for extra durability
- Self-adaptive infrared sensor with indicator light
- User friendly three second flush delay
- ADA Compliant mechanical override non-hold-open handle
- Infrared sensor range adjustment screw
- Non-hold-open integral solenoid operation
- 1" I.P.S. screwdriver Bak-Chek angle stop
- Free spinning vandal resistant stop cap
- High back pressure vacuum breaker flush connection
- One-piece bottom hex coupling nut, spud coupling, & flange for 1-1/2" top spud
- Sweat solder adapter with cover tube & cast set screw wall flange
- High copper, low zinc brass castings for dezincification resistance
- "Low battery" indicator LED
- Fixed metering bypass with no external volume adjustment to ensure water conservation
- Permex™ rubber diaphragm, stop seat, & vacuum breaker for chloramine resistance
- ASSE 1037, ANSI/ASME A112.19.6 compliance

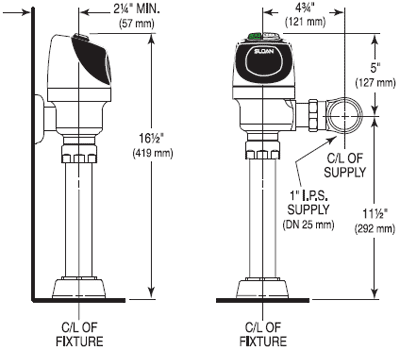

ECOS Dual Flush Battery Powered, Sensor Activated Toilet / Water Closet Flushometers
Designed for floor mounted or wall hung top spud bowls
Model #8111
Features:
- ADA Compliant - hands free operation
- Reduced (1.1gpf) or full (1.6gpf) flush automatically initiates when user finishes
- If the user is present for less than one minute = reduced (1.1gpf) flush
- If the user is present for more than one minute = full (1.6gpf) flush
- Helps reduce water volume by up to 30% when reduced flush occurs
- Sensor operated water closet flushometer for floor mounted or wall hung top spud bowls
- Includes four (4) size AA batteries (factory installed)
- Chrome plated flushometer for either left or right hand supply
- Infrared sensor with multiple sensing fields for high & low target detection
- Synthetic rubber diaphragm with dual filtered fixed bypass for extra durability
- Self-adaptive infrared sensor with indicator light
- User friendly three second flush delay
- Courtesy flush override button
- Infrared sensor range adjustment screw
- Non-hold-open integral solenoid operation
- 1" I.P.S. screwdriver Bak-Chek angle stop
- Free spinning vandal resistant stop cap
- High back pressure vacuum breaker flush connection
- One-piece bottom hex coupling nut, spud coupling, & flange for 1-1/2" top spud
- Sweat solder adapter with cover tube & cast set screw wall flange
- High copper, low zinc brass castings for dezincification resistance
- "Low battery" indicator LED
- Fixed metering bypass with no external volume adjustment to ensure water conservation
- Permex™ rubber diaphragm, stop seat, & vacuum breaker for chloramine resistance
- ASSE 1037, ANSI/ASME A112.19.6 compliance
- All of the flushometers below are Buy American Act compliant
Related Items & Accessories
Frequently Asked Questions
Q. "What is Permex™?"
A. Permex™ is a patented rubber compound that is formulated to withstand the deteriorating effects of ammonia and chloramine which are often used in water treatment facilities and cleaners.
Q. "How long do the batteries last and are they hard to replace?"
A. Per Sloan Valve Co. these batteries should last approximately 3 years @ 4,000 flushes a month. To replace the batteries simply pop off the lens window to access the old batteries, and replace them with new ones.
Q. "What does it mean that a product is compliant with the Buy American Act (BAA) or with the American Recovery and Reinvestment Act (ARRA)? Are these products manufactured in the USA?"
A. The Buy American Act is a part of the American Recovery and Reinvestment Act of 2009 intended to help stimulate the United States' economy through the purchase of American-made goods. While the Buy American Act portion of the bill primarily regulates government spending, the regulations can help guide conscious consumers who wish to purchase American-made products. In general, an item that meets the requirements of the Buy American Act is assembled in the US and at least 50% of its components are domestically produced. While every single component of these products may not be produced in the US, a large portion are - and that portion is helping our American economy to grow and thrive.
