American Standard Replacement Flush Valves

When your American Standard toilet needs a replacement flush valve, look no further! We have a wide selection of OEM American Standard flush valves for a fantastic number of toilets - even discontinued models! Unsure as to which valve you need? Check under the lid or inside the tank as model numbers are often impressed into the porcelain. Let us know what your toilet model number is, and we can help you identify the specific parts for your American Standard toilet.

American Standard Flush Valves

This American Standard flush valve has the following:
  • 9 1/4" from toilet tank to top of overflow
  • Includes flapper, beaded chain and float
  • Raising float on chain causes less water to be flushed
  • Lowering float on chain causes more water to be flushed
  • Constructed of chemical resistant material

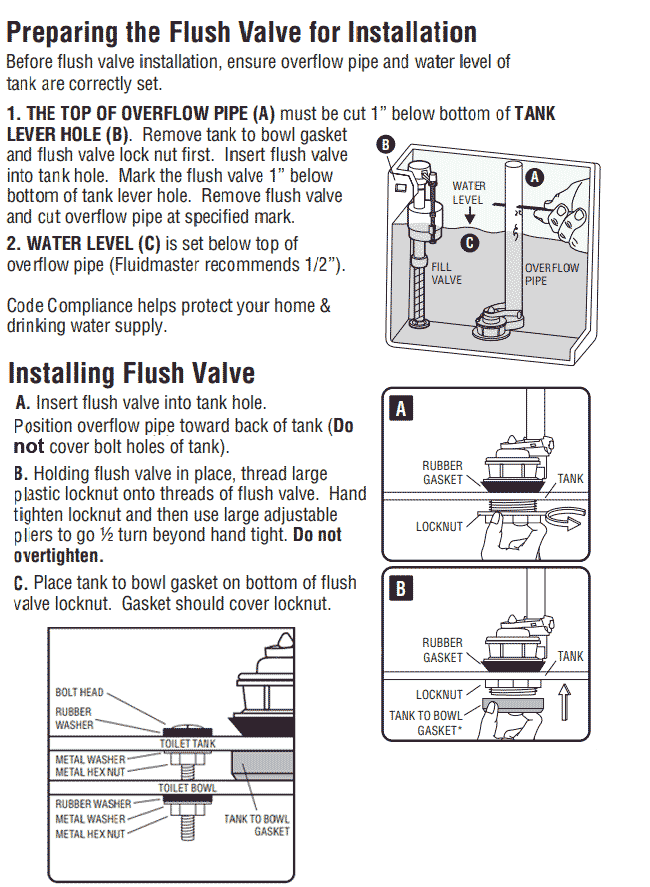

  • View "will fit" installation instructions

Fits Colony model #'s 2359, 2388, 2399
Cadet model #'s 2798, 2149, 2164, 2174, 2216

Description Price & Quantity
American Standard flush valve - 738461-0070A
Replaced by "Will-Fit" 738360-0070A Flush Valve (10-1/2" tall)
Valve may need to be cut down to fit - altered valves are non-returnable
$34.61 Enter a quantity and
Replacement flapper for original valve only - 7381129-200-0070A $21.56 Enter a quantity and
Replacement flapper for "will fit" valve only $6.15 Enter a quantity and
Replacement WA84 flush valve gasket only $1.44 Enter a quantity and
Tank to bowl bolt set - solid brass bolts, chrome plated zinc nuts, wing nuts, and washers
(for Colony 2359,2388,2399 and Cadet 2798)
$6.27 Enter a quantity and
Tank to bowl mounting kit
(for 2-piece Cadet 2149,2164,2174,2216)
$23.03 Enter a quantity and


American Standard flush valve features:
  • 8 7/8" from toilet tank to top of overflow
  • Set with locknut
  • Includes flapper, beaded chain and float
  • Raising float on chain causes less water to be flushed
  • Lowering float on chain causes more water to be flushed
  • View "will fit" installation instructions

Please note: Float will need to be moved down from 9 beads to 8 beads when replacing valve. If necessary, valve can be cut down to match your existing flush valve. Modified valves are non-returnable.

Fits Cadet model #'s 2798, 2898, 2998


Description Price & Quantity
American Standard flush valve - 738484-0070A (initially replaced by 738461-0070A)
Replaced by "Will-Fit" 738360-0070A Flush Valve (10-1/2" tall)
$34.61 Enter a quantity and
Replacement flapper for original valve only - 7381129-200-0070A $21.56 Enter a quantity and
Replacement flapper for "will fit" valve only $6.15 Enter a quantity and
Replacement WA84 flush valve gasket only $1.44 Enter a quantity and
Tank to bowl bolt set - brass bolts, chrome plated zinc nuts, wing nuts, and washers $6.27 Enter a quantity and


Need a new tank to bowl gasket for your two-piece toilet?


American Standard flush valve features:
  • 10-1/2" tall from toilet tank to top of overflow
  • Constructed of chemical resistant material for longevity
  • Set with locknut
  • Includes flapper, chain and float - float on chain allows you to set flush volume
  • Raising float on chain causes less water to be flushed
  • Lowering float on chain causes more water to be flushed
  • View "will fit" installation instructions

Fits Cadet model #'s 2798, 2898, 2998
Fits Ravenna model #'s 2648, 2642, 2646 (tank #4096)

Description Price & Quantity
American Standard flush valve - 738360-0070A
Replaced by "Will-Fit" 738360-0070A Flush Valve
$34.61 Enter a quantity and
Replacement flapper for original 738360-0070A only - 7381129-200-0070A $21.56 Enter a quantity and
Replacement flapper for "will fit" valve only $6.15 Enter a quantity and
Replacement WA84 flush valve gasket only $1.44 Enter a quantity and
Tank to bowl bolt set - brass bolts, chrome plated zinc nuts, wing nuts, and washers $6.27 Enter a quantity and


Get helpful tips from our "How To Improve Toilet Performance" page


Toilet flush valve features:
  • 11-1/8" overall, 9 3/8" from toilet tank to top of overflow
  • Constructed of chemical resistant material
  • Includes flapper with float and beaded chain
  • Set with locknut
Fits Hydra and Repertoire toilets

Description Price & Quantity
American Standard flush valve - 738356-0070A Discontinued
#87 "Will Fit" 2-Inch Flush Valve - 10-1/2" tall overflow, will need to be cut down to height of original valve (altered valves are non-returnable) $14.99 Enter a quantity and
Replacement flapper & chain only - 7381129-200-007 - for 738356-0070A Flush Valve $21.56 Enter a quantity and
Replacement flapper only - 2001BP - for #87 Will-Fit Flush Valve $2.79 Enter a quantity and


Toilet flush valve features:
  • 8 3/4" from toilet tank to top of overflow, 10 1/2" overall
  • Fits many 2-piece toilets
  • Constructed of chemical resistant material
  • Includes flapper with float and beaded chain
  • Install with locknut

Description Price & Quantity
American Standard flush valve - 738447-0070A Discontinued
#87 "Will Fit" 2-Inch Flush Valve - 10-1/2" tall overflow, will need to be cut down to height of original valve (altered valves are non-returnable) $14.99 Enter a quantity and
Replacement flapper & chain only - 7381129-200-007 - for original 738447-0070A flush valve $21.56 Enter a quantity and

- OR - View Cart

This American Standard 2" flush valve features:
  • 9 1/4" from toilet tank to top of overflow
  • Includes flapper, beaded chain and float - float on chain allows you to set flush volume
  • Constructed of chemical resistant material
  • View "will fit" installation instructions

Fits Calais model #'s 2331, Colony model #'s 2188, 2199
Clarion model #'s 2284

Description Price & Quantity
American Standard flush valve - 738138-0070A
Replaced by "Will-Fit" 738138-0070A Flush Valve (10" tall)
Valve may need to be cut down to fit - altered valves are non-returnable
$8.38 Enter a quantity and
Replacement flapper for original valve only - 7381129-200-0070A $21.56 Enter a quantity and
Replacement flapper for "will fit" valve only $4.69 Enter a quantity and
Replacement WA84 flush valve gasket only $1.44 Enter a quantity and


Toilet flush valve features:
  • 3" base, 7-3/4" overall height, 6-1/4" from tank to top of overflow
  • Adjustable flapper with silicone seal
  • Constructed of chemical resistant material
  • Fits 1.28 gpf tanks (Cadet 4000, 4021, 4202)
  • Fits 3-3/8" to 3-1/2" diameter hole openings
Fits some Cadet toilets

Description Price & Quantity
American Standard flush valve - 7381146-406-0070A - Replaced by 540AKR $18.18 Enter a quantity and
Replacement "Will Fit" adjustable flapper #5403 $16.24 Enter a quantity and

- OR - View Cart

3" Toilet flush valve features:
  • Adjustable 7-1/8" to 9-1/2" overall height
  • Adjustable 5-1/2" to 8" from tank to top of overflow
  • Constructed of chemical resistant material
  • Fits 1.28 gpf tanks (Cadet PRO #2312, #2812)
  • Fits 3-3/8" to 3-1/2" diameter hole openings
  • Includes 3" flapper
Fits some Cadet toilets

American Standard Flush Valve 7381294-400-0070A - $23.86

- OR - View Cart

This American Standard toilet flush valve features:
  • 9" overall, 7-1/4" from toilet tank to top of overflow
  • Constructed of chemical resistant material for durability
  • Designed for one-piece water closets
  • Fits some Antiquity and Savona models
  • Includes flapper with beaded chain
  • Installation disc wrench included

American Standard Flush Valve 738378-0070A - $45.82

- OR - View Cart

Toilet flush valve features:
  • 8-3/4" overall, 7-1/4" from toilet tank to top of overflow
  • Fits 2" top mount one-piece toilets
  • Constructed of chemical resistant material
  • Includes flapper with beaded chain
  • Installation disc wrench included

Fits one-piece Cadet model #'s 2099
May fit some Antiquity and Savona models

Part # Description Price & Quantity
738683-0070A American Standard flush valve - OEM $47.04 Enter a quantity and
Alternative "Will Fit" flush valve w/flapper - view dimensions $19.99 Enter a quantity and
Replacement flapper only for 738683-0070A - "Will-Fit" 47146-0070A $7.65 Enter a quantity and
Replacement flapper only "will fit" for the 738683 $1.95 Enter a quantity and

- OR - View Cart

Features for this American Standard flush valve:
  • 11 1/4" overall, 9 1/2" overflow tube, from tank to top of overflow
  • Includes flapper with chain
  • 3.5 gallons per flush (gpf)
  • Constructed of chemical resistant material

Fits Baby Devoro model #'s 2162, Glenwall model #'s 2093,
Plebe model #'s 2131,2138, Yorkville model #'s 2128, 2130, 2134

Description Price & Quantity
American Standard flush valve - 047387-0070A Discontinued
use Alternative Solution
Alternative Solution
- #87 "Will Fit" 2-Inch Flush Valve - 10-1/2" tall overflow, will need to be cut down to height of original valve (altered valves are non-returnable)
$14.99 Enter a quantity and
Replacement flapper only - "Will-Fit" 47146-0070A - for discontinued 047387-0070A flush valve $7.65 Enter a quantity and
Replacement flapper "will fit" only - for discontinued 047387-0070A flush valve $1.95 Enter a quantity and
Replacement flapper only - 2001BP - for #87 Flush Valve $2.79 Enter a quantity and
Replacement WA84 flush valve gasket only $1.44 Enter a quantity and

- OR - View Cart

This toilet flush valve features:
  • 11-3/16" overall, 9-3/8" from tank to top of overflow
  • Includes flapper and chain
  • Easy to install
  • Constructed of chemical resistant material

Fits Cadet model #'s 2312 and 2812

Description Price & Quantity
American Standard flush valve - 047394-0070A Discontinued
Use 047387-0070A
above
Replacement flapper only - "Will-Fit" 47146-0070A $7.65 Enter a quantity and
Replacement flapper only - "will fit" - chemical resistant with strap $1.95 Enter a quantity and
Replacement WA84 flush valve gasket only $1.44 Enter a quantity and
Tank to bowl bolt set - brass bolts, chrome plated zinc nuts, wing nuts, and washers $6.27 Enter a quantity and

- OR - View Cart

Find a replacement tank to bowl gasket for your American Standard toilet.


Main features of American Standard flush valve:
  • 8" overall, 6-1/4" from toilet tank to top of overflow
  • Includes flapper and beaded chain
  • Easy to install
  • Internal installation disk tool included
  • Constructed of chemical resistant material
  • Replaces discontinued 738069-0070A

American Standard Flush Valve 738109-0070A - $45.63

- OR - View Cart

This American Standard toilet flush valve features:
  • 7 3/4" overall, 6 1/2" from toilet tank to top of overflow
  • Includes 3" flapper and beaded chain
  • Easy to install
  • Constructed of chemical resistant material
  • Fits 3 3/8" - 3 1/2" diameter hole opening
  • For Cadet 3 tank models #4021.016, #4021.416, and toilet model's #2880, 3305

Fits Cadet 3 model #'s 2386, 2383, 2384, 2880, 3305
Also known as #5 New Style

Description Price & Quantity
American Standard Flush Valve with 3" Flapper - 738921-100-0070A $19.90 Enter a quantity and
Replacement "will-fit" flapper only - replaces American Standard #738920-0070P $5.86 Enter a quantity and
Tank Coupling Kit  #7301021-0070A (includes installation tool)
-replaces old #730935-0070A
$24.18 Enter a quantity and

- OR - View Cart

This American Standard toilet flush valve features:
  • 8 3/8" overall, 6 3/4" from toilet tank to top of overflow
  • Includes 3" flapper and beaded chain
  • Easy to install
  • Constructed of chemical resistant material
  • Fits 3 3/8" - 3 1/2" diameter hole opening
  • For Cadet 3 tank models #4019.016, #4021.456, and #4021.500
  • Also fits toilet model #2447 (1.6 gpf)

Fits Cadet 3 model #'s 2386, 2383, 2384, 2447
Also known as #5 New Style

Description Price & Quantity
American Standard Flush Valve with 3" Flapper - 738921-101-0070A $49.23 Enter a quantity and
Replacement "will-fit" flapper only - replaces American Standard #738920-100.0070P $5.86 Enter a quantity and
Tank Coupling Kit  #7301021-0070A (includes installation tool) $24.18 Enter a quantity and

- OR - View Cart

Keep your toilet working its best - Read about how to improve toilet performance


Seal for Old Style Champion 4 Flush Valve

Replacement seal features:
  • Replacement Seal for Champion ®4 flush valve
  • Replaces #738651-0070A Seal
  • Seal fits Champion ®4 model #'s: 2057, 2087 and 2035
  • Please note: this style flush valve has been replaced by the flush valve below (3174.002-0070A)
  • The new style Champion ®4 flush valve is a much better flush valve, and we recommend replacing the old style flush valve with the new one
  • View Old style and New style flush valve comparison
  • View seal only
  • Read our FAQ for replacement instructions

Flush Valve Seal Kit ONLY (Seal Kit Only - flush valve no longer available) = $8.23

- OR - View Cart

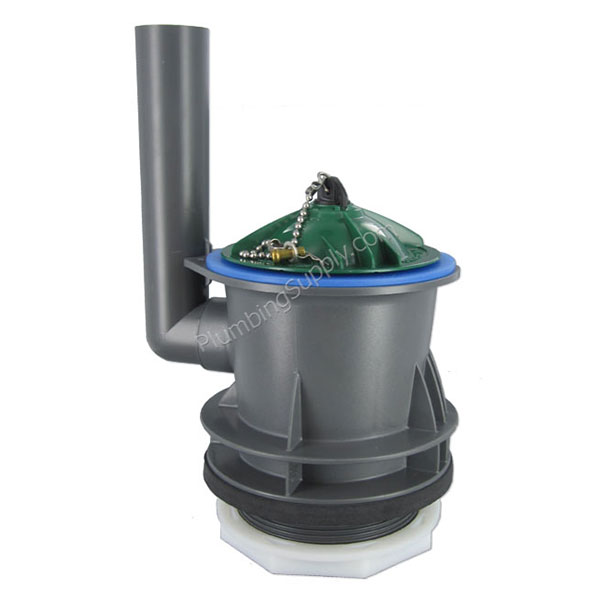

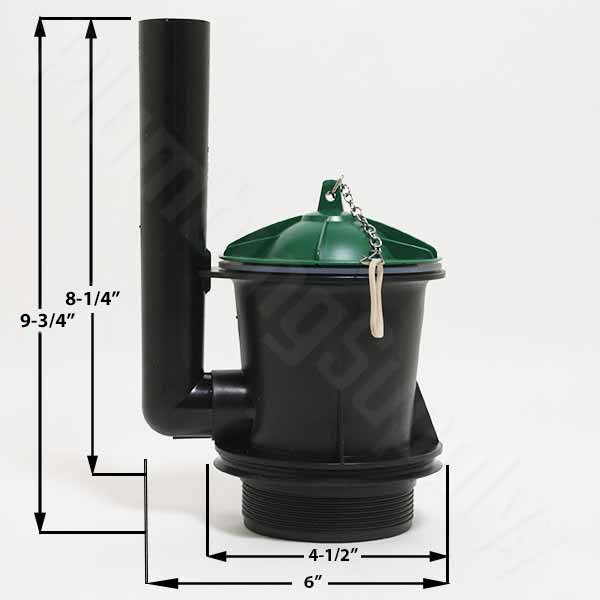

New Style Champion ®4 Flush Valve
Super popular replacement flush valve for the Champion 4 toilet

American Standard Flush Valve 3174-1057381983-400.0070A
New Style
New Style Champion4 Flush Valve Features:
  • Fits Champion ®4 two piece toilets
  • Complete with flush valve wrench and flush valve seal - note: seal is also available separately (sometimes comes in blue)
  • Unique piston-action seal allows more water to flow through faster than a traditional "flapper" design
  • Includes flapper and beaded chain
  • Mirror surface inhibits the growth of stain and bolder causing bacteria, mold and mildew
  • Note: replaces original flush valve assembly #3175.002 and #3174.105-0070A
  • View dimensions here
  • View instructions to change Gallons per Minute from 1.6 gpm to 1.28 gpm

Description Price & Quantity
American Standard Flush Valve 3174.002 Complete With Flush Valve Seal & O-ring (note: sometimes comes in blue) and Wrench - 8-1/2" from tank to top of overflow/10" overall height
- Replaced by 7381983-400-0070A
Discontinued
Use Replacement
7381983-400-007
American Standard 7381983-400-007 Flush Valve Assembly - Replaces discontinued 3174.105-0070A $49.39 Enter a quantity and
American Standard Flush Valve 3280.040-0070A Assembly with Seal (adapter assembly sold separately) - 6-3/4" from tank to top of overflow - 7-1/4" overall height
for American Standard 1-pc Champion®4 toilets
$46.04 Enter a quantity and
Adapter Assembly 738826-0070A for 3280.040-0070A Flush Valve $102.28 Enter a quantity and
Champion®4 Flush Valve Seal & O-ring (note: sometimes comes in blue) - 7301111-0070A - 4-1/4" O.D., 2-3/4" I.D.
- for discontinued 3174.105-0070A flush valve
$12.27 Enter a quantity and
High Quality Replacement Seal ONLY - For Champion 4 Flush Valve - 5 Year MFG Warranty $6.86 Enter a quantity and
Tank To Bowl Seal Kit  Please note: gasket color, green or black, will not affect installation or operation - The MFR recommends ordering this kit when replacing #3174.002-0070A flush valve $28.75 Enter a quantity and

- OR - View Cart

Flow Wise Toilet Flush Valve

Features:
  • Fits Flow Wise two piece toilets
  • Complete with flush valve wrench, flush valve seal, and thumbscrew o-ring. Note: flush valve seal & o-ring are also available separately
    (sometimes comes in blue)
  • Unique 4" piston action accelerator produces a powerful flush
  • Easy to install
  • Includes flapper and beaded chain

Description Price & Quantity
American Standard Flush Valve 3174.102-0070A Complete With Seal & O-ring (note: sometimes comes in blue) and Wrench - 7-1/2" from tank to top of overflow/9" overall height
- Replaced by 3174.105-0070A  (which is now also disontinued)
Discontinued
Use Replacement
7381983-400-007
Enter a quantity and
American Standard 7381983-400-007 Flush Valve Assembly - Replaces discontinued 3174.105-0070A $49.39 Enter a quantity and
Flow Wise Flush Valve Seal & O-ring (note: sometimes comes in blue) - 7301111-0070A - 4-1/4" O.D., 2-3/4" I.D. $12.27 Enter a quantity and
Tank To Bowl Seal Kit  Please note: gasket color, green or black, will not affect installation or operation - The MFR recommends ordering this kit when replacing #3174.002-0070A flush valve $28.75 Enter a quantity and

- OR - View Cart

Unique & Hard to Find Flush Valves

This hard to find American Standard flush valve features:

Description Price & Quantity
American Standard Flush Valve 47107-0070A Replaced by "Will Fit" 47107-0070A Flush Valve $42.60 Enter a quantity and
68470-0070A New style #4 actuator unit for 47107-0070A $24.20 Enter a quantity and
Replacement Snap-On Seat Disc #33643-0700A - Replaced by "Will-Fit" Replacement Seat Disc With Brass Insert (includes brass insert, remove to install) $5.55 Enter a quantity and
Replacement Seat Disc with threaded brass insert #33643-0700 - Replaced by "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Chain Assembly to actuate flush valve - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and

- OR - View Cart

This hard to find American Standard flush valve features:
  • Constructed of chemical resistant material for strength and durability
  • 5-3/4" overall, 5-1/4" from toilet tank to top of valve
  • Chain can be mounted on top or side (shown on side)
  • Fits the Lexington one piece toilets made before 9/1988: models 2006.014 and 2007.12

Description Price & Quantity
American Standard Flush Valve 47250-0070A $50.49 Enter a quantity and
Snap-On Seat Disc #33643-0700A - Replaced by "Will-Fit" Replacement Seat Disc (includes brass insert, remove to install) $5.55 Enter a quantity and
Seat Disc with threaded brass insert #33643-0700 - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Chain Assembly for flush valve - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and



This hard to find American Standard flush valve features:
  • 10-7/8" (± 1/8") overall height, 9 " from toilet tank to top of overflow, 5-1/4" from toilet tank to top of black actuating unit
  • Constructed of chemical resistant material for strength and durability
  • "Will Fit" some American Standard #4049 tanks

Description Price & Quantity
American Standard Flush Valve 47089-0700 (same as 47089-0070A) $21.62 Enter a quantity and
Snap-On Seat Disc #33643-0700A - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert (includes brass insert, remove to install) $5.55 Enter a quantity and
Seat Disc with threaded brass insert #33643-0700 - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Chain Assembly - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and

- OR - View Cart

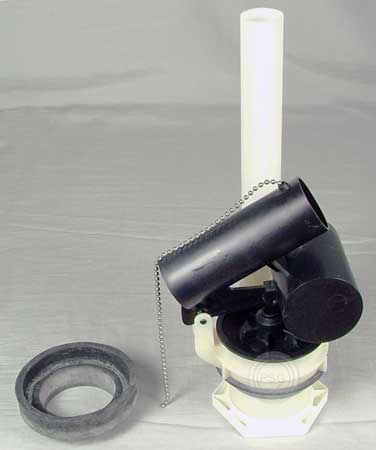

This hard to find American Standard flush valve features:
  • 10-1/4" overall, 8-1/2" from toilet tank to top of overflow, 5-1/2" from tank to top of actuator
  • Constructed of chemical resistant material for strength and durability
  • Fits 2-piece Ellisse toilets
  • View dimensions of this American Standard flush valve

Description Price & Quantity
American Standard Flush Valve 47139-0070A $44.13 Enter a quantity and
Replacement Actuator Unit #33582-0700A $19.95 Enter a quantity and
Snap-On Seat Disc #33643-0700A - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert (includes brass insert, remove to install) $5.55 Enter a quantity and
Seat Disc with threaded brass insert #33643-0700 - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Chain Assembly for flush valve - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and

- OR - View Cart


This American Standard toilet flush valve features:
  • 8-1/4" overall, 7-3/4" from toilet tank to top of overflow, 6-3/4" from tank to top of actuating unit
  • Includes mounting kit and seat disc
  • Fits American Standard Heritage one-piece toilets

Description Price & Quantity
American Standard Flush Valve 47230-0070A Discontinued
Seat Disc with threaded brass insert #33643-0700 - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Seat Disc with threaded brass insert #33643-0700 - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Chain Assembly for flush valve - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and

- OR - View Cart

This American Standard flush valve features:
  • 8-1/4" overall, 7-3/8" from toilet tank to top of overflow, 6-1/2" from toilet tank to top of black actuating unit
  • Includes actuating unit with seat disk & chain
  • Includes flush valve seal
  • Also known as the old #6 flush valve
  • Fits some American Standard Luxor toilets
  • View dimensions

Description Price & Quantity
American Standard Flush Valve 47049-0070A $43.82 Enter a quantity and
Seat Disc with threaded brass insert #33643-0700 - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Seat Disc with threaded brass insert #33643-0700 - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Chain Assembly for flush valve - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and

- OR - View Cart

This unique American Standard flush valve features:
  • 7-1/2" overall, 7" from toilet tank to top of overflow, 6-1/2" from toilet tank to top of black actuating unit
  • Also known as #5 New Style
  • Includes actuating unit with seat disc & chain
  • Fits American Standard Platner toilets

Description Price & Quantity
American Standard Flush Valve 47201-0070A Discontinued
see 723X below
Possible "Will-Fit" Flush Valve 723X $19.99 Enter a quantity and
Seat Disc with threaded brass insert #33643-0700 - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Seat Disc with threaded brass insert #33643-0700 - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Chain Assembly for flush valve - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and

- OR - View Cart

This American Standard toilet flush valve features:
  • 11-1/4" overall, 9-1/2" from toilet tank to top of overflow, 5-1/2" from toilet tank to top of black actuating unit
  • Includes seat disc & chain
  • Comes with sponge gasket
  • Fits some American Standard Roma toilets

Description Price & Quantity
American Standard Flush Valve 47137-0070A $55.44 Enter a quantity and
Seat Disc with threaded brass insert #33643-0700 - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Seat Disc with threaded brass insert #33643-0700 - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Chain Assembly for flush valve - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and

- OR - View Cart

This American Standard flush valve features:
  • 7-1/2" overall height, 7" from toilet tank to top of overflow, 6-3/4" from toilet tank to top of actuator
  • Also known as #6 New Style
  • Includes actuating unit with seat disc and chain
  • Comes with mounting kit
  • Fits American Standard Roma Vent-Away toilets

Description Price & Quantity
American Standard Flush Valve 47138-0070A $94.54 Enter a quantity and
Seat Disc with threaded brass insert #33643-0700 - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Seat Disc with threaded brass insert #33643-0700 - Replaced by Replacement "Will-Fit" Seat Disc With Brass Insert $5.55 Enter a quantity and
Chain Assembly for flush valve - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and

- OR - View Cart

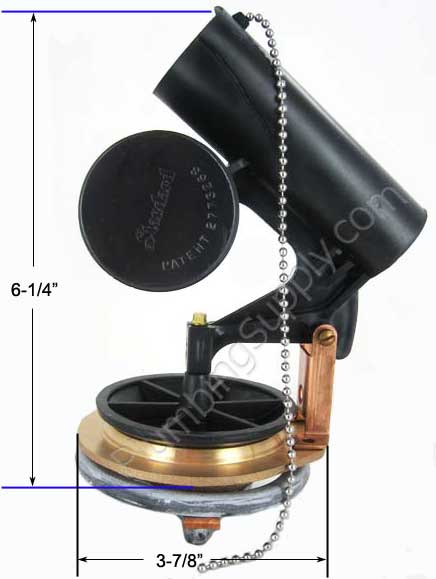

This American Standard flush valve features:

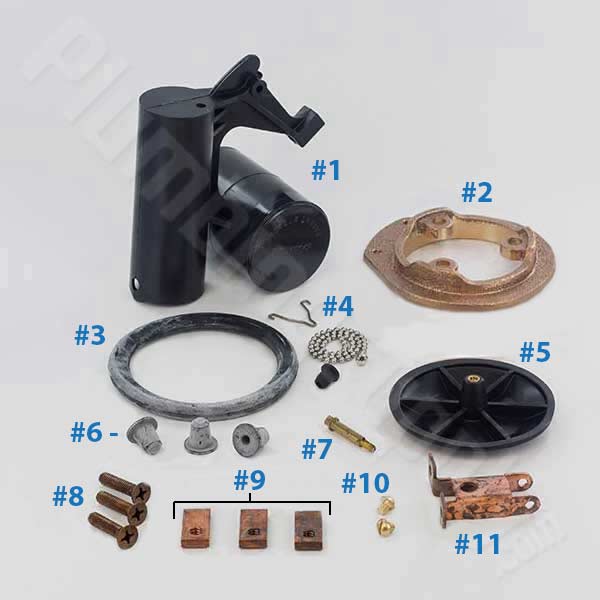

American Standard 47086-0700 parts schematic
Item # Description Price & Quantity
-- American Standard 47086-0700 Complete Flush Valve $46.75 Enter a quantity and
1 Actuating Unit - not sold separately - see 47086-0700 Flush Valve above Discontinued

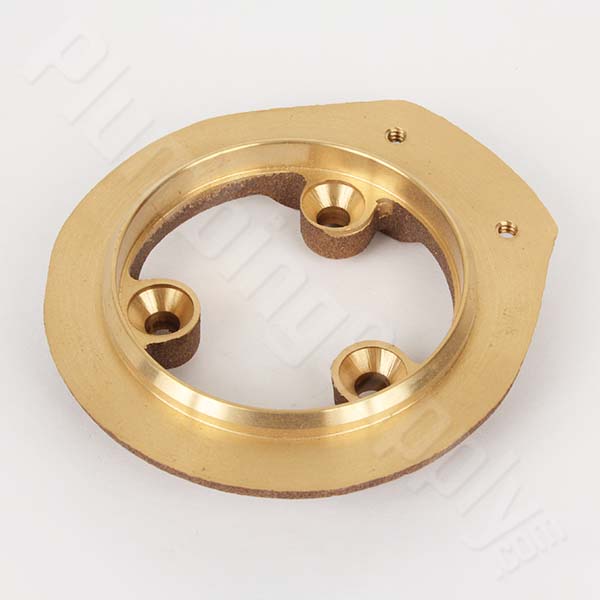

2 Brass Seat $23.23 Enter a quantity and
3 Flush Valve Seal $3.78 Enter a quantity and
4 Lift Chain Assembly - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and
5 Seat Disc - Replaced by "Will-Fit" Seat Disc with brass insert $5.55 Enter a quantity and

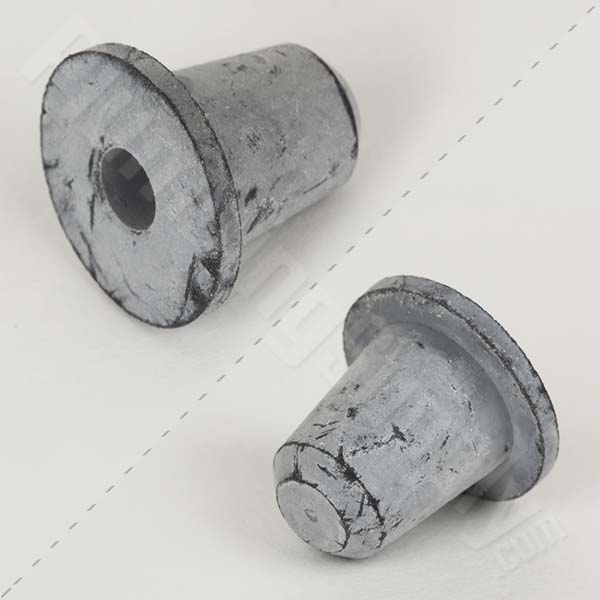

6 Bolt Hole Seal - sold individually (3 Required) $2.04 Enter a quantity and

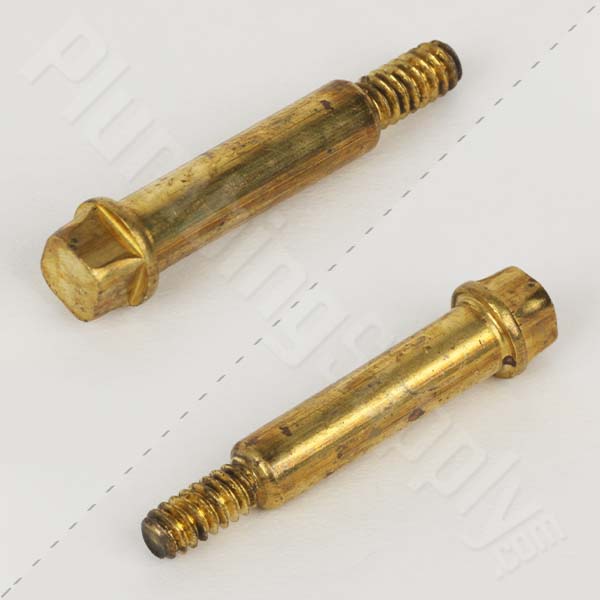

7 Screw for Disc $1.35 Enter a quantity and

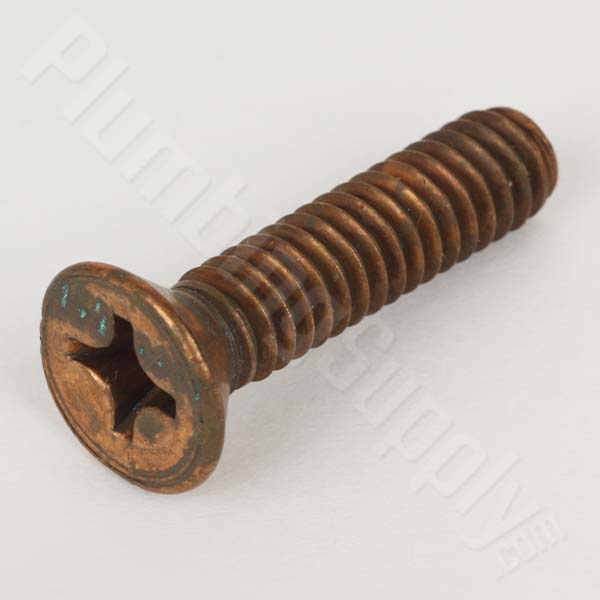

8 Flush Valve FH Screw - sold individually (3 Required) $1.33 Enter a quantity and

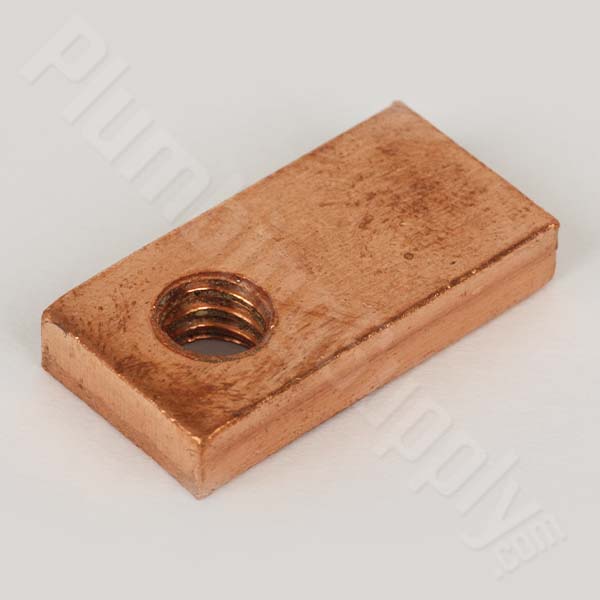

9 Fastening Lug - sold individually (3 Required) $2.99 Enter a quantity and
10 Support Leg Screw - sold individually (2 Required) $0.89 Enter a quantity and
11 Support Leg $2.90 Enter a quantity and

- OR - View Cart

This hard to find canister style flush valve features:
  • Brass and copper canister style valve
  • Fits some one-piece toilets, including some Champion 4 and Compact El Space Saver models
  • Curtin Valve #50 is a replacement for original AS #3 flush valve
  • Curtin Valve #50 parts are not interchangeable with AS #3 flush valve parts
  • Fits models 2000, 2005, 2149

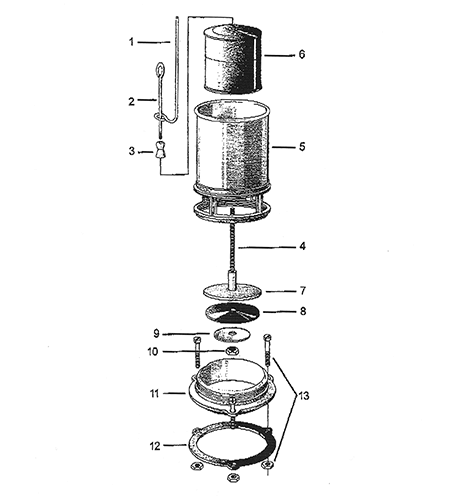

parts diagram for the Curtin 50 canister flush valve
Parts listed below fit Curtin Valve #50 Only
Discontinued
Item # Description Quantity & Price

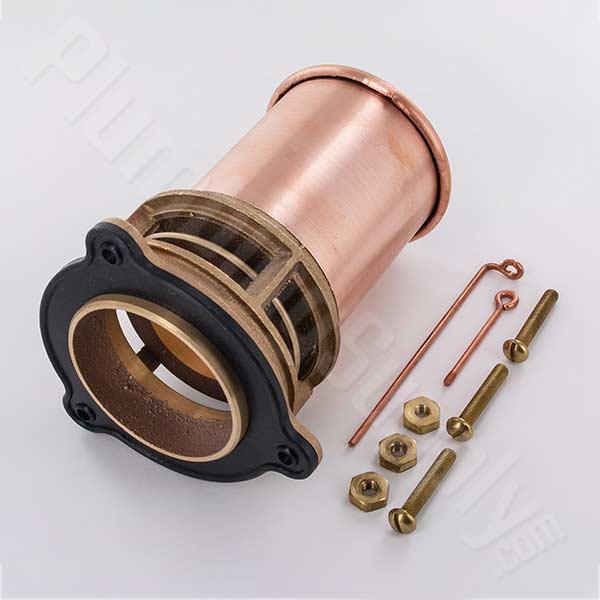

-- Curtin 50 Complete Canister Flush Valve Discontinued
American Standard #47087-0700
(Mfr. suggested replacement flush valve for Curtin 50 - OUTLET must be in center of tank for this replacement flush valve to work)
View installation instructions for #47087-0700 flush valve
View brass seat dimensions
$51.02 Enter a quantity and

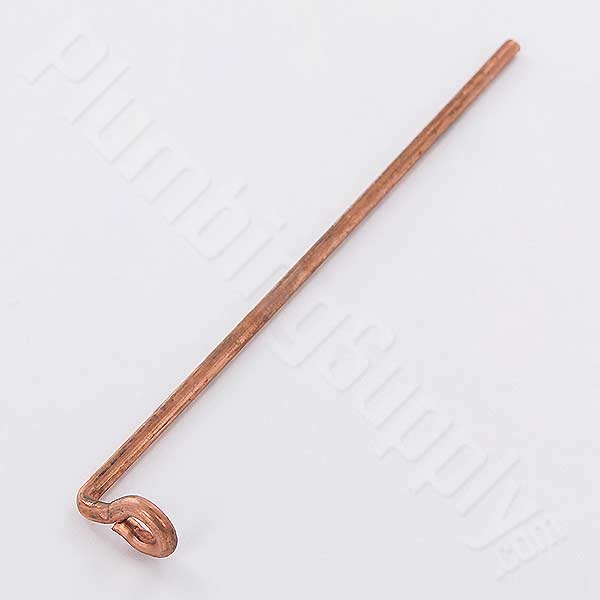

1 Upper Lift Rod $1.44 Enter a quantity and

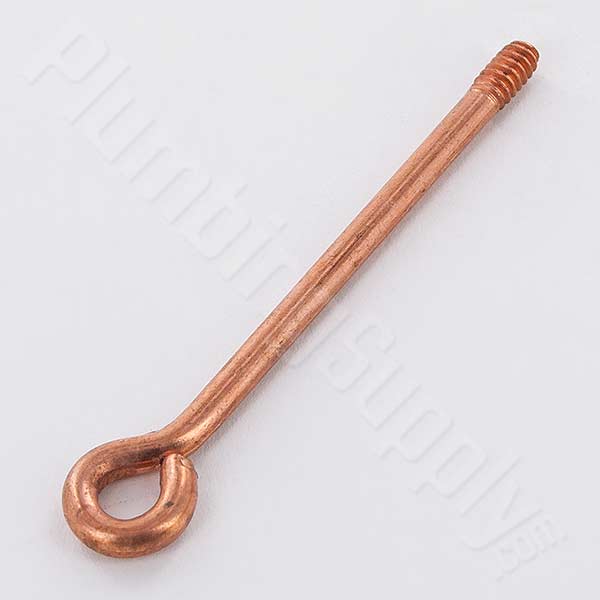

2 Lower Lift Rod $1.46 Enter a quantity and

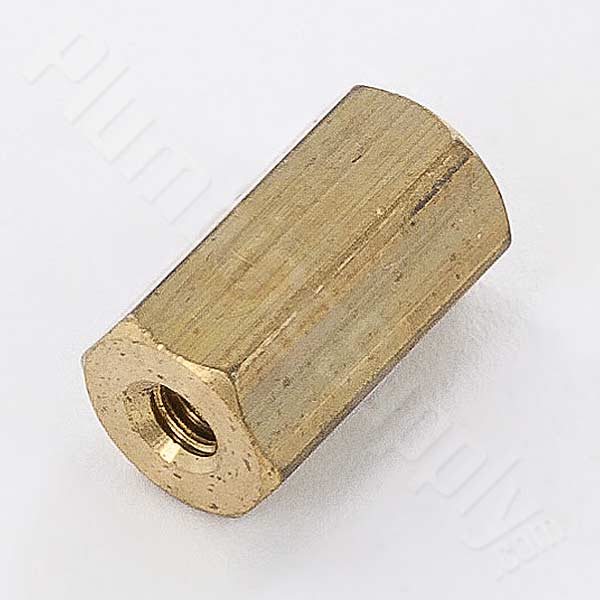

3 Coupling Nut $2.03 Enter a quantity and

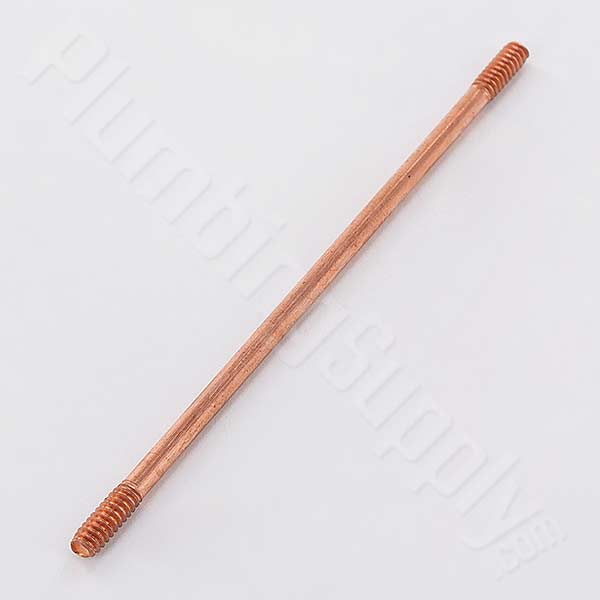

4 Float Rod $1.25 Enter a quantity and

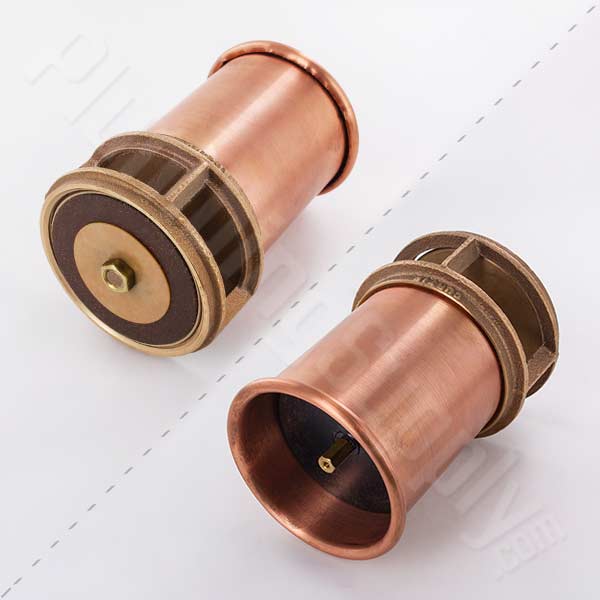

5 Cylinder and Cage Assembly Discontinued
6 Float $7.18 Enter a quantity and
7 Plunger

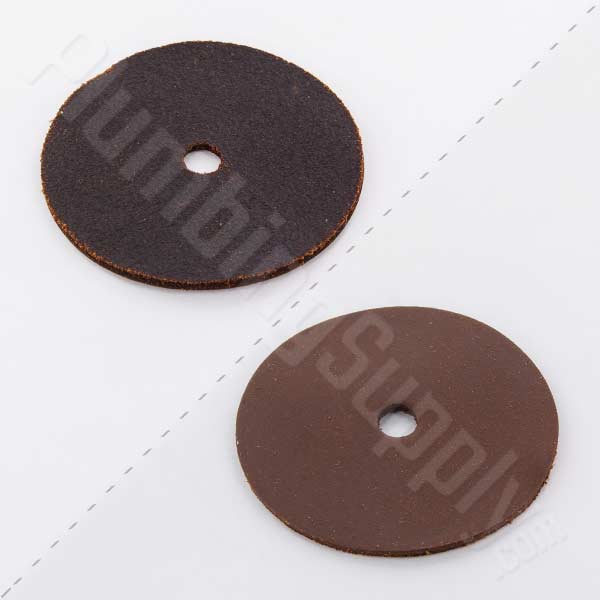

8 Seat Washer - Leather $4.61 Enter a quantity and

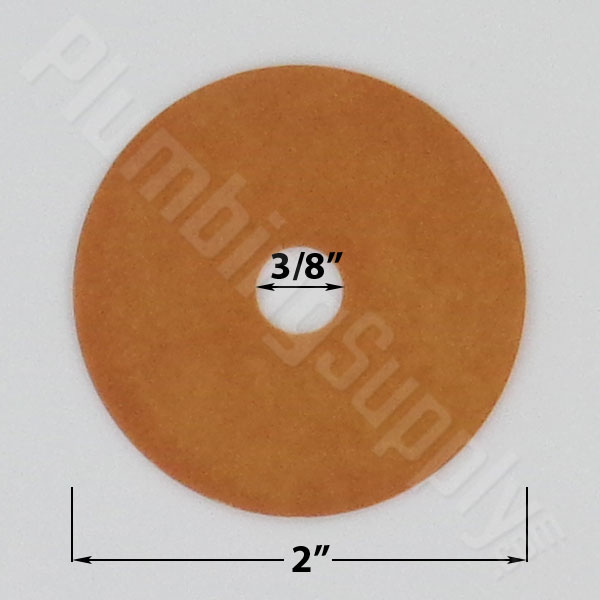

9 Check Washer $1.88 Enter a quantity and
10 Plunger Nut $2.60 Enter a quantity and
11 Flanged Base Discontinued

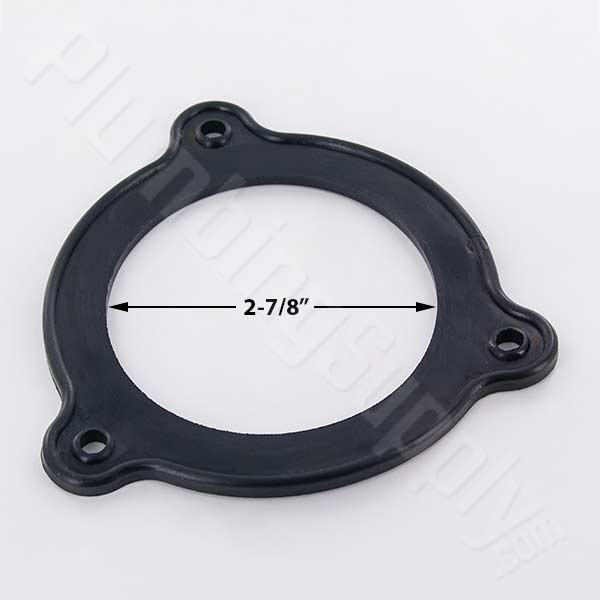

12 Rubber Gasket $7.65 Enter a quantity and
13 Brass Bolt and Nut (Set of 3 Each) $13.63 Enter a quantity and

- OR - View Cart

Frequently Asked Questions

Q. "How do you replace the 'seal' on the older style Champion®4 flush valve?"
A. The following seal replacement directions are for the original Champion ®4 flush valve assembly #3175.002:
First, shut off the water supply to the toilet and flush the toilet to empty the water out of the tank. Disconnect the flush valve chain from the trip lever. Lift up the flush valve cylinder and remove the old seal by pulling it out of the groove and sliding it over and up the cylinder. Install the new seal by sliding it down over the flush valve cylinder. Make sure it is seated into the groove. Reattach the chain to the trip lever. Turn on your water supply. Check to make sure the seal is working correctly.

Q. "What is a bead setting and how do I adjust this?"
A.For flush valves with a float attached to the flapper chain, the "bead setting" refers to where on the chain the float is - in other words, the distance from the top of the flapper to the float. This controls how much water leaves the tank every time you flush the toilet. The higher the float, the less water that leaves the tank.

To adjust the bead setting, you gently pull the float up or down the chain to the desired length. Sometimes there is a plastic piece you will need to temporarily remove to move the float. Just re-attach this piece once the float is in the correct position.

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs



return to top ↑

Copyright© 1995-2024 PlumbingSupply.com.
All Rights Reserved.
